Appendix C – Pinouts

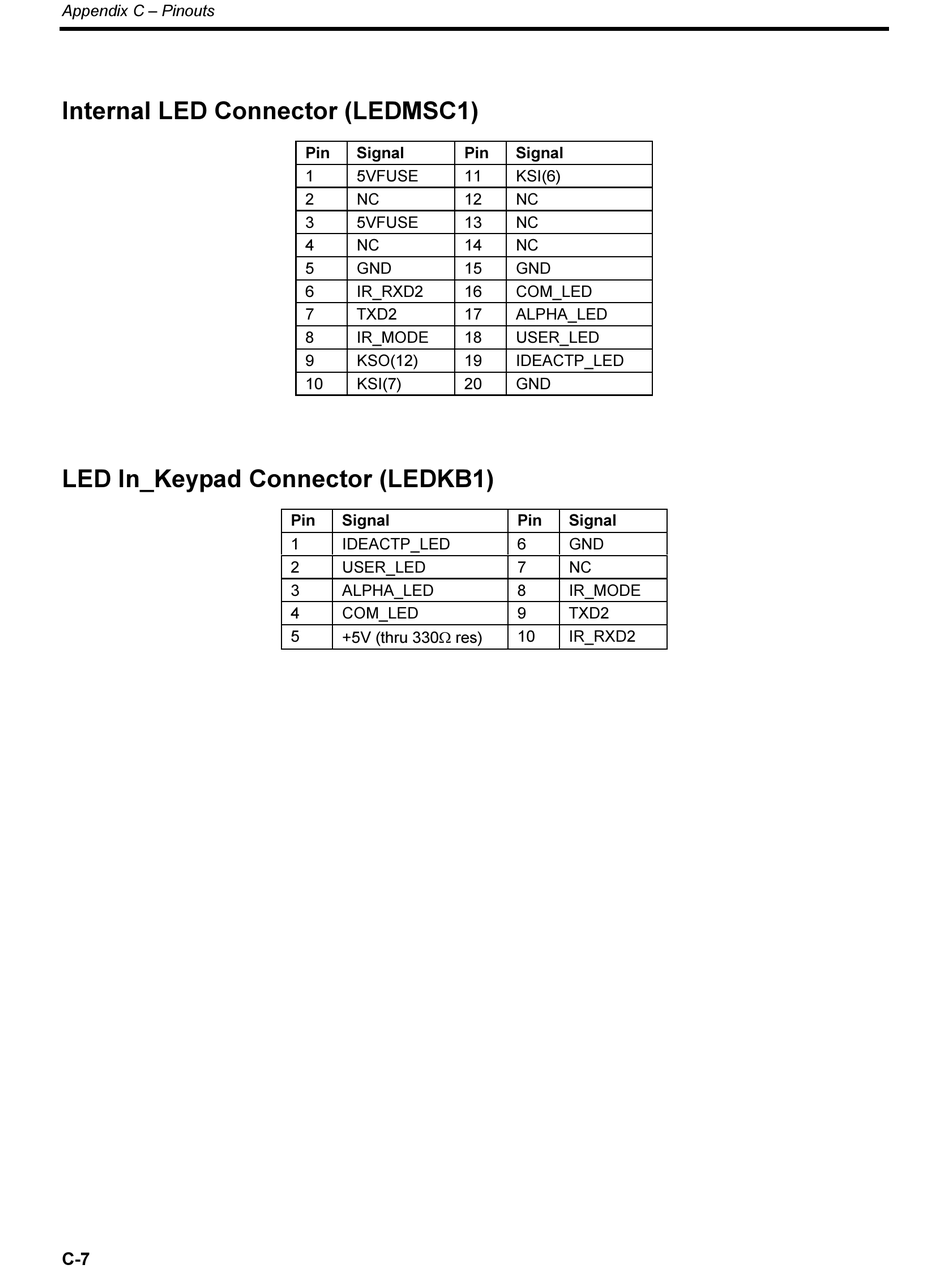

Internal LED Connector (LEDMSC1)

LED In_Keypad Connector (LEDKB1)

C-7
Pin Signal Pin
1 5VFUSE 11
2 NC 12
3 5VFUSE 13
4 NC 14
5 GND 15
6 IR_RXD2 16
7 TXD2 17
8 IR_MODE 18
9 KSO(12) 19
10 KSI(7) 20
Pin Signal
1 IDEACTP_LED
2 USER_LED
3 ALPHA_LED
4 COM_LED
5
+5V (thru 330W res)
Signal
KSI(6)
NC
NC
NC
GND
COM_LED
ALPHA_LED
USER_LED
IDEACTP_LED
GND
Pin Signal
6 GND
7 NC
8 IR_MODE
9 TXD2
10 IR_RXD2
