Chapter 3 – BIOS Setup Menus
Option
IDE Primary Master
IDE Primary Slave
IDE Secondary Master
IDE Secondary Slave
System Memory
Extended Memory
Cache RAM
Shadow RAM

IDE Submenu

Main
IDE Primary Master (C: 1082 Mb)
Type:
* Cylinders:
* Heads:
* Sectors
* Maximum Capacity
* Multi-Sector Transfers:
* LBA Mode Control:
* 32-Bit I/O:
* Transfer Mode:
* Ultra DMA Mode
F1 Help
ESC Exit
The IDE submenus are used to configure IDE hard drive information. If
only one drive is attached to an IDE adapter, then only the parameters in
the Master Submenu need to be entered. If two drives are connected,
both Master and Slave Submenu parameters will need to be entered. All
IDE submenus contain the same information and operate the same.
Option
Type
3-3
Description
These items show the IDE configuration and allow entry into the IDE sub-
menus.
Displays the amount of conventional memory detected during boot-up. This
field is not user configurable.
Displays the amount of extended memory detected during boot-up. This field is
not user configurable.
Displays the amount of cache detected and allows entry into the cache submenu.
Enables or disables the Shadow RAM access.
Xycom BIOS Setup Utility
[Auto/User]
[ 2097]
[ 16]
[ 63]
1082 Mb
[8 Sectors]
[Enabled]
[Disabled]
[Fast PIO 4]
[Disabled]
­¯
Select Item
¨ Select Menu

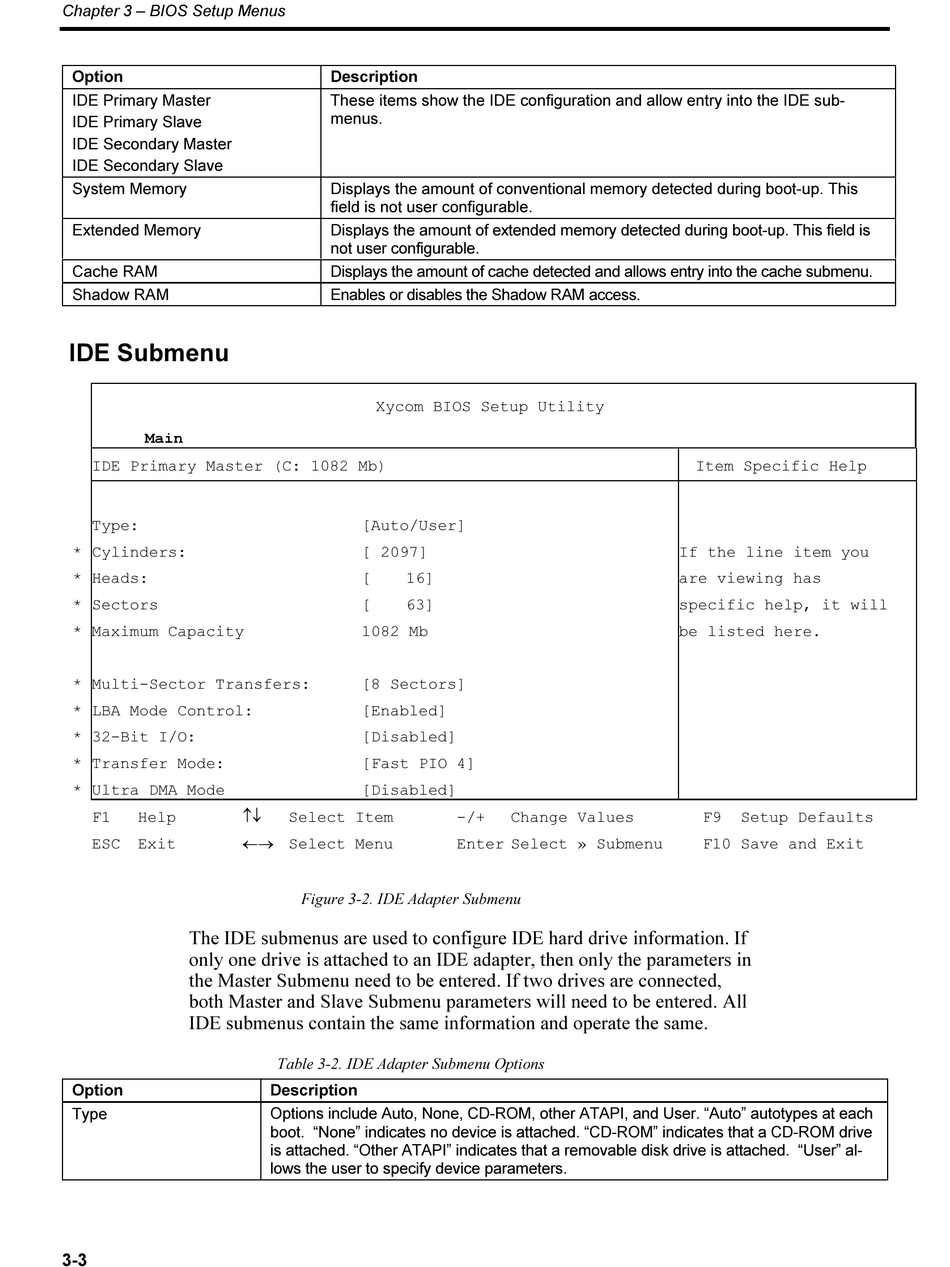

Figure 3-2. IDE Adapter Submenu
Table 3-2. IDE Adapter Submenu Options
Description
Options include Auto, None, CD-ROM, other ATAPI, and User. "Auto" autotypes at each
boot. "None" indicates no device is attached. "CD-ROM" indicates that a CD-ROM drive
is attached. "Other ATAPI" indicates that a removable disk drive is attached. "User" al-
lows the user to specify device parameters.
-/+ Change Values
Enter Select » Submenu
Item Specific Help
If the line item you
are viewing has
specific help, it will
be listed here.
F9 Setup Defaults
F10 Save and Exit
