Chapter 3 – BIOS Setup Menus
PCI Configuration Submenu
Advanced
PCI Configuration
?PCI Device, Slot #1
?PCI Device, Slot #2
?PCI/PNP ISA UMB Region Exclusion
?PCI/PNP ISA IRQ Resource Exclusion
­¯
F1 Help
¨ Select Menu
ESC Exit
Option
PCI Device, Slot #1
PCI Device, Slot #2
PCI/PNP ISA UMB Re-
gion Exclusion
PCI/PNP ISA IRQ Re-
source Exclusion
­¯
F1 Help
¨ Select Menu
ESC Exit
PCI Device, Slot #1 Submenu
Advanced
PCI Device, Slot #1
Option ROM Scan
Enable Master:
Latency Timer:
F1 Help will be listed here.
¨ Select Menu
ESC Exit
3-9
Xycom BIOS Setup Utility
Select Item -/+
Enter Select » Submenu

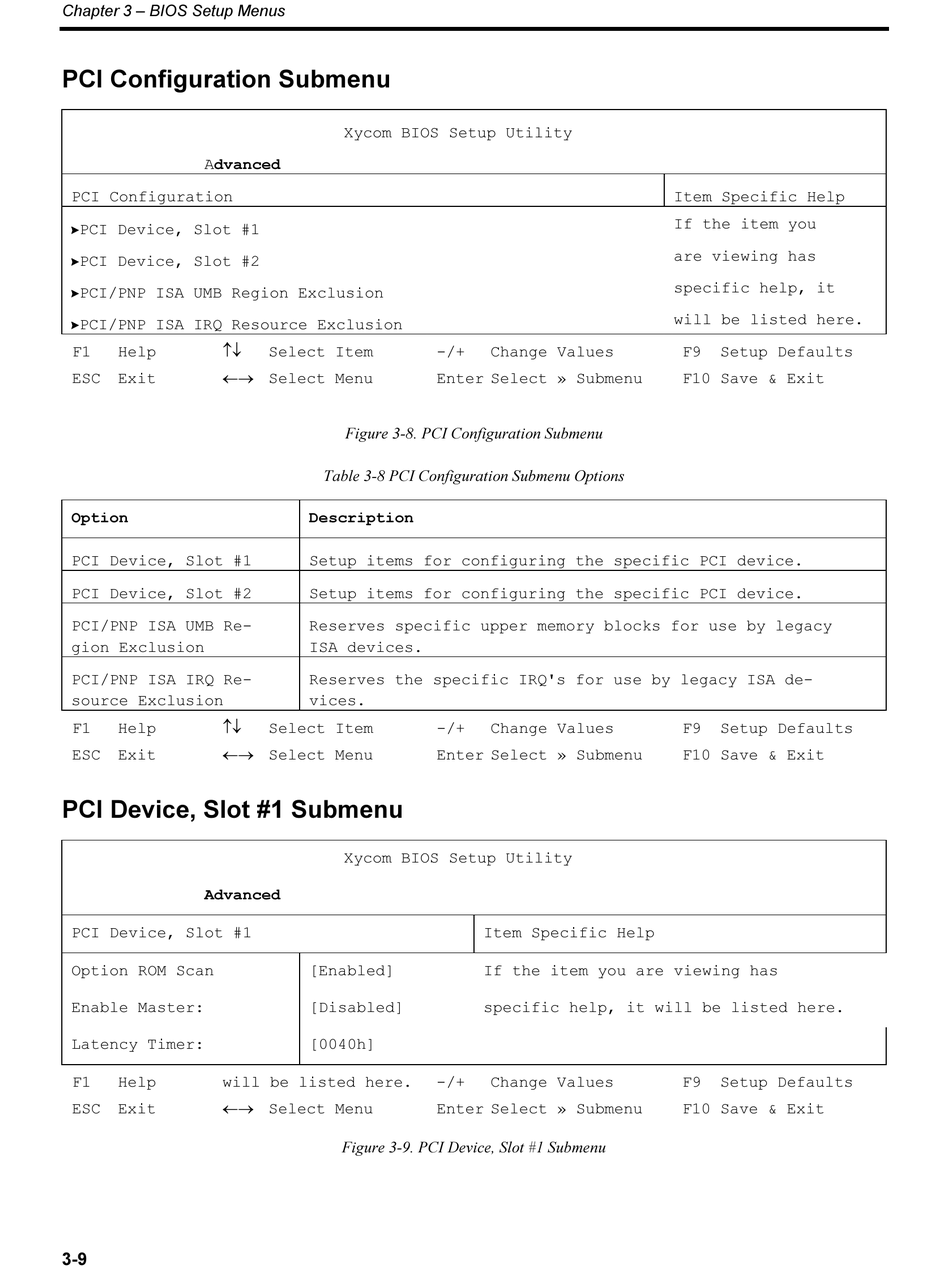

Figure 3-8. PCI Configuration Submenu
Table 3-8 PCI Configuration Submenu Options
Description
Setup items for configuring the specific PCI device.
Setup items for configuring the specific PCI device.
Reserves specific upper memory blocks for use by legacy
ISA devices.
Reserves the specific IRQ's for use by legacy ISA de-
vices.
Select Item -/+
Enter Select » Submenu
Xycom BIOS Setup Utility
[Enabled]
[Disabled]
[0040h]
-/+
Enter Select » Submenu
Figure 3-9. PCI Device, Slot #1 Submenu
Change Values
Change Values
Item Specific Help
If the item you are viewing has
specific help, it will be listed here.
Change Values
Item Specific Help
If the item you
are viewing has
specific help, it
will be listed here.
