Advanced Menu - Xycom AHIP6+ Manual

AHIP6+ Manual

Advanced Menu

Main Advanced
?I/O Device Configuration
?Advanced Chipset Control
?PCI Configuration
Installed O/S:
Reset Configuration Data:
Large Disk Access Mode:
Local Bus IDE adapter:
Floppy check:
Summary Screen:
Boot-time Diagnostic Screen
?On-board Socket Site:
?Flat Panel
­¯
F1 Help
¨ Select Menu
ESC Exit
This menu allows you to change the peripheral control, advanced chipset
control, and disk access mode.
Feature
I/O Device Configuration
Advanced Chipset Control
PCI Configuration
Installed O/S
Reset Configuration Data
Large Disk Access Mode
Local Bus IDE Adapter
Floppy Check
Summary Screen
Boot-time Diagnostics
Screen
On-board Socket Site
Flat Panel
3-6
Xycom BIOS Setup Utility
Security
[other]
[No]
[DOS]
[Both]
[Disabled]
[Disabled]
[Enabled]
Select Item -/+
Enter Select » Submenu

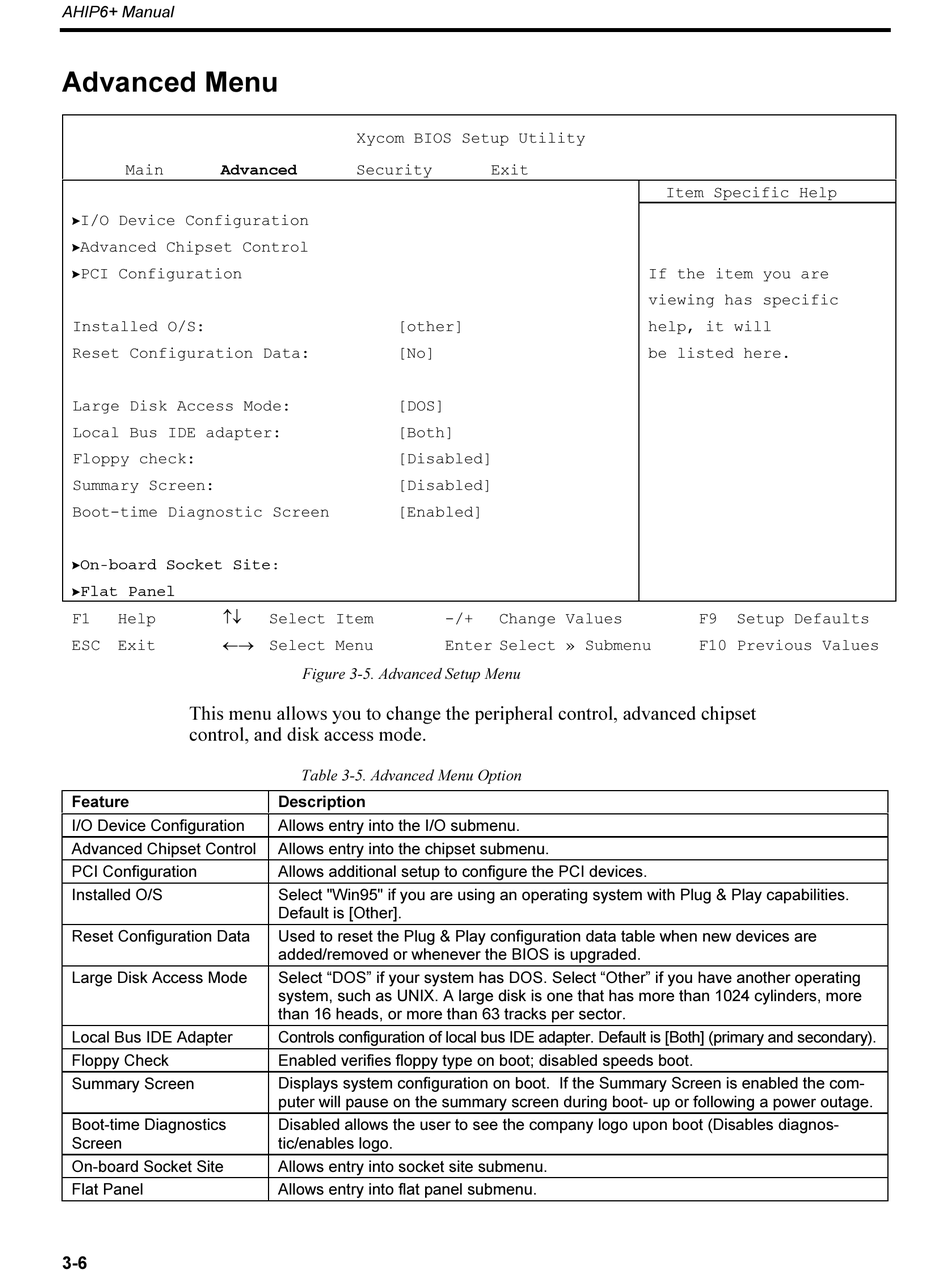

Figure 3-5. Advanced Setup Menu
Table 3-5. Advanced Menu Option
Description
Allows entry into the I/O submenu.
Allows entry into the chipset submenu.
Allows additional setup to configure the PCI devices.
Select "Win95" if you are using an operating system with Plug & Play capabilities.
Default is [Other].
Used to reset the Plug & Play configuration data table when new devices are
added/removed or whenever the BIOS is upgraded.
Select "DOS" if your system has DOS. Select "Other" if you have another operating
system, such as UNIX. A large disk is one that has more than 1024 cylinders, more
than 16 heads, or more than 63 tracks per sector.
Controls configuration of local bus IDE adapter. Default is [Both] (primary and secondary).
Enabled verifies floppy type on boot; disabled speeds boot.
Displays system configuration on boot. If the Summary Screen is enabled the com-
puter will pause on the summary screen during boot- up or following a power outage.
Disabled allows the user to see the company logo upon boot (Disables diagnos-
tic/enables logo.
Allows entry into socket site submenu.
Allows entry into flat panel submenu.
Exit
Item Specific Help
If the item you are
viewing has specific
help, it will
be listed here.
Change Values F9 Setup Defaults
F10 Previous Values
