On-Board Socket Site Submenu - Xycom AHIP6+ Manual

AHIP6+ Manual
Option
IRQ 3
IRQ 4
IRQ 5
IRQ 7
IRQ 9
IRQ 10
IRQ 11
F1 Help will be listed here.
¨ Select Menu
ESC Exit

On-board Socket Site Submenu

Advanced
On-board Socket Site
32-pin Socket Site Address
* 32-pin Socket Site Type
32-pin Socket Site I/O
F1 Help
ESC Exit
Option
32-pin Socket Site Address
1
32-pin Socket Site Type
32-pin Socket Site I/O
1 = Visible only when Socket Site Address is "Enabled"
3-12
Table 3-12. PCI/PNP ISA IRQ Resource Exclusion Options
Description
Options are reserved or available. Reserves the
specified block of upper memory for use by
legacy ISA devices.
Xycom BIOS Setup Utility
[Disabled]
[SRAM]
[180h-181h]
­¯
Select Item
¨ Select Menu

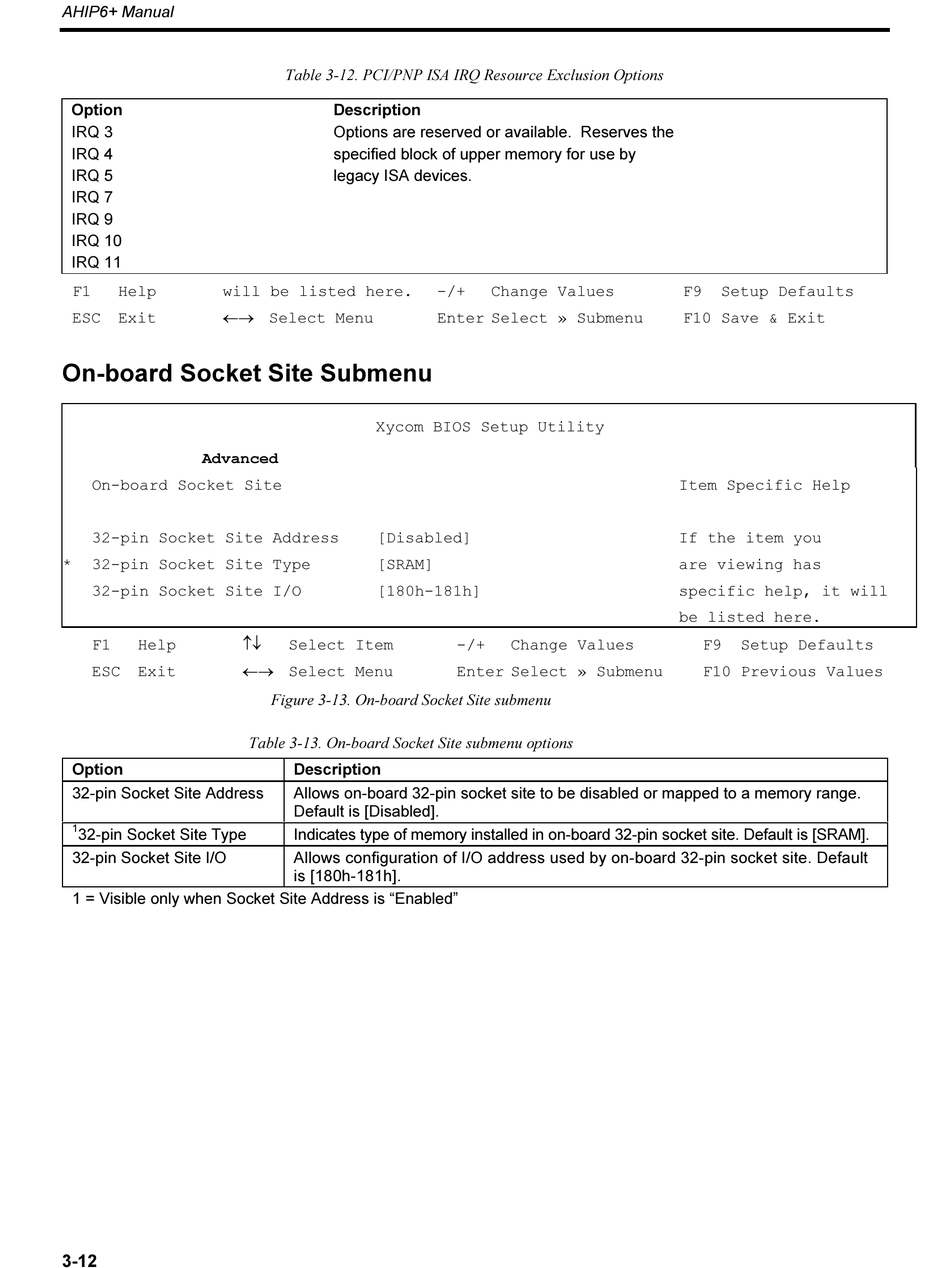

Figure 3-13. On-board Socket Site submenu
Table 3-13. On-board Socket Site submenu options
Description
Allows on-board 32-pin socket site to be disabled or mapped to a memory range.
Default is [Disabled].
Indicates type of memory installed in on-board 32-pin socket site. Default is [SRAM].
Allows configuration of I/O address used by on-board 32-pin socket site. Default
is [180h-181h].
-/+ Change Values
Enter Select » Submenu
-/+ Change Values
Enter Select » Submenu
F9 Setup Defaults
F10 Save & Exit
Item Specific Help
If the item you
are viewing has
specific help, it will
be listed here.
F9 Setup Defaults
F10 Previous Values
