3.10. GPIOs


Keep GPIO traces away from interference signals such as clock, RF and power supplies, etc.

Filter capacitors need to be added and be placed close to the module when GPIO is used as the
input.

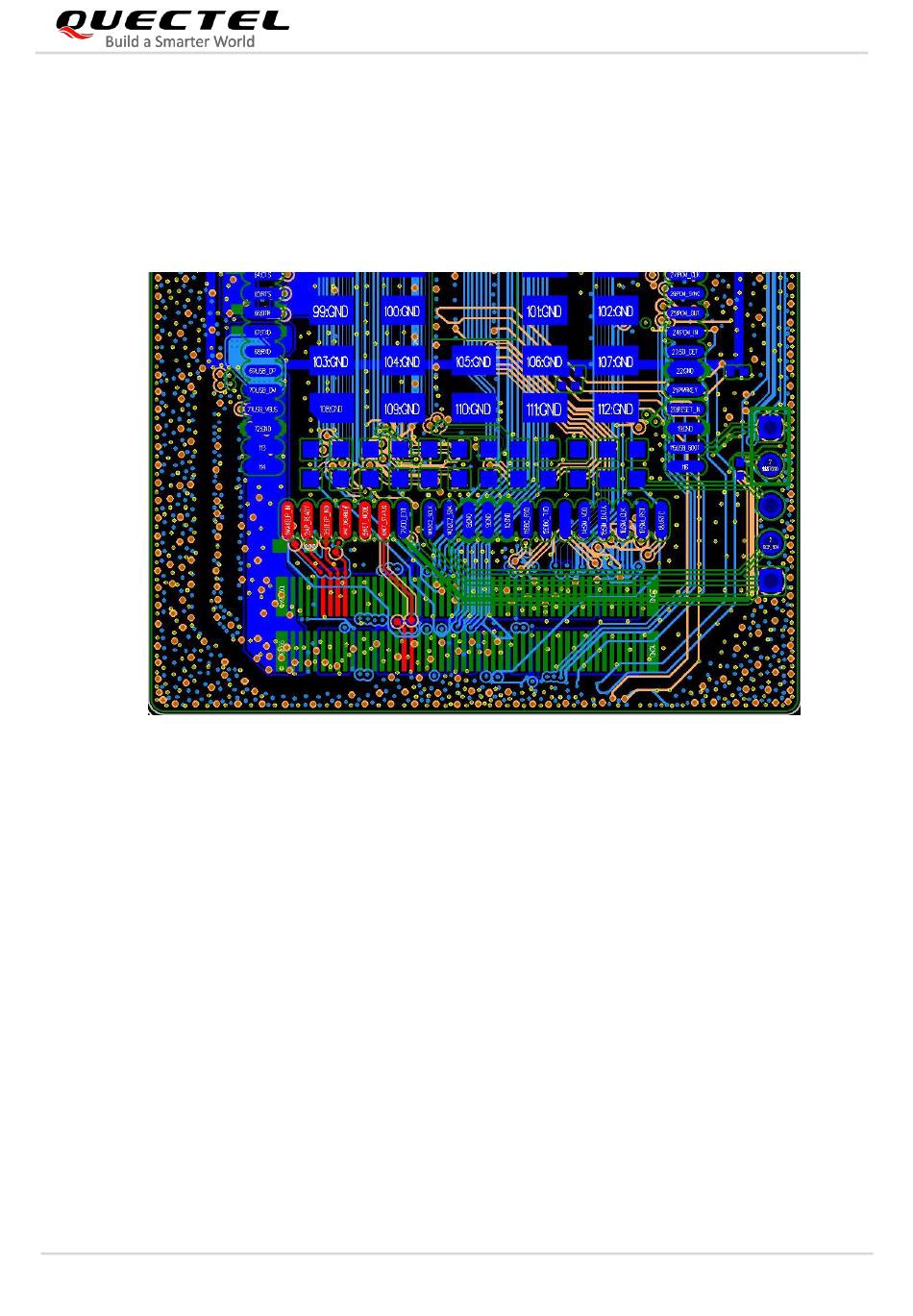

Figure 29: Overview of GPIO Signal Traces (TE-A without Copper Pouring)
