PCB Design Overview

2.1. Footprint and Keepout Area


A 4-layer PCB is strongly recommended.
 First, check whether the module's footprint is of the latest version provided by Quectel. For specific
footprint of each module, please refer to document [1], [2], [3] or [4].

Do not design pads 73–84 and do not route the keepout area with any traces or copper.
USB
USB
interface
interface
SD card
SD card
interface
interface
EC2x&EG2x-G_Series_PCB_Design_Guideline
EC2x&EG2x-G Series PCB Design Guideline
VABT
VABT
interfaces
interfaces
Keepout
Keepout
area
area

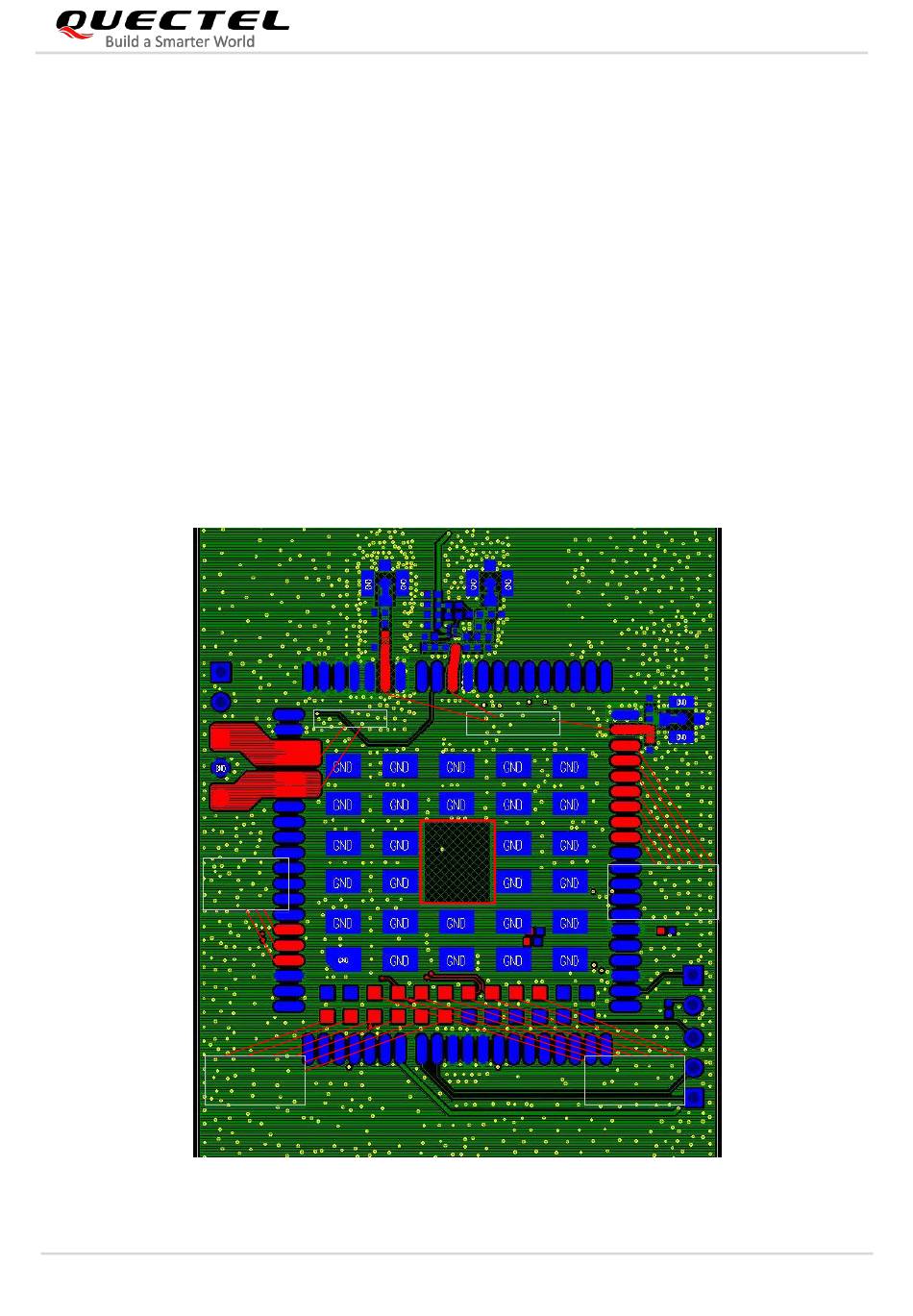

Figure 1: Overview of TE-A 1st Layer
