3.2. PWRKEY & RESET_N
PWRKEY and RESET_N signal traces are recommended to be surrounded with ground.
If filter capacitors for PWRKEY and RESET_N are required, put them near the two pins.

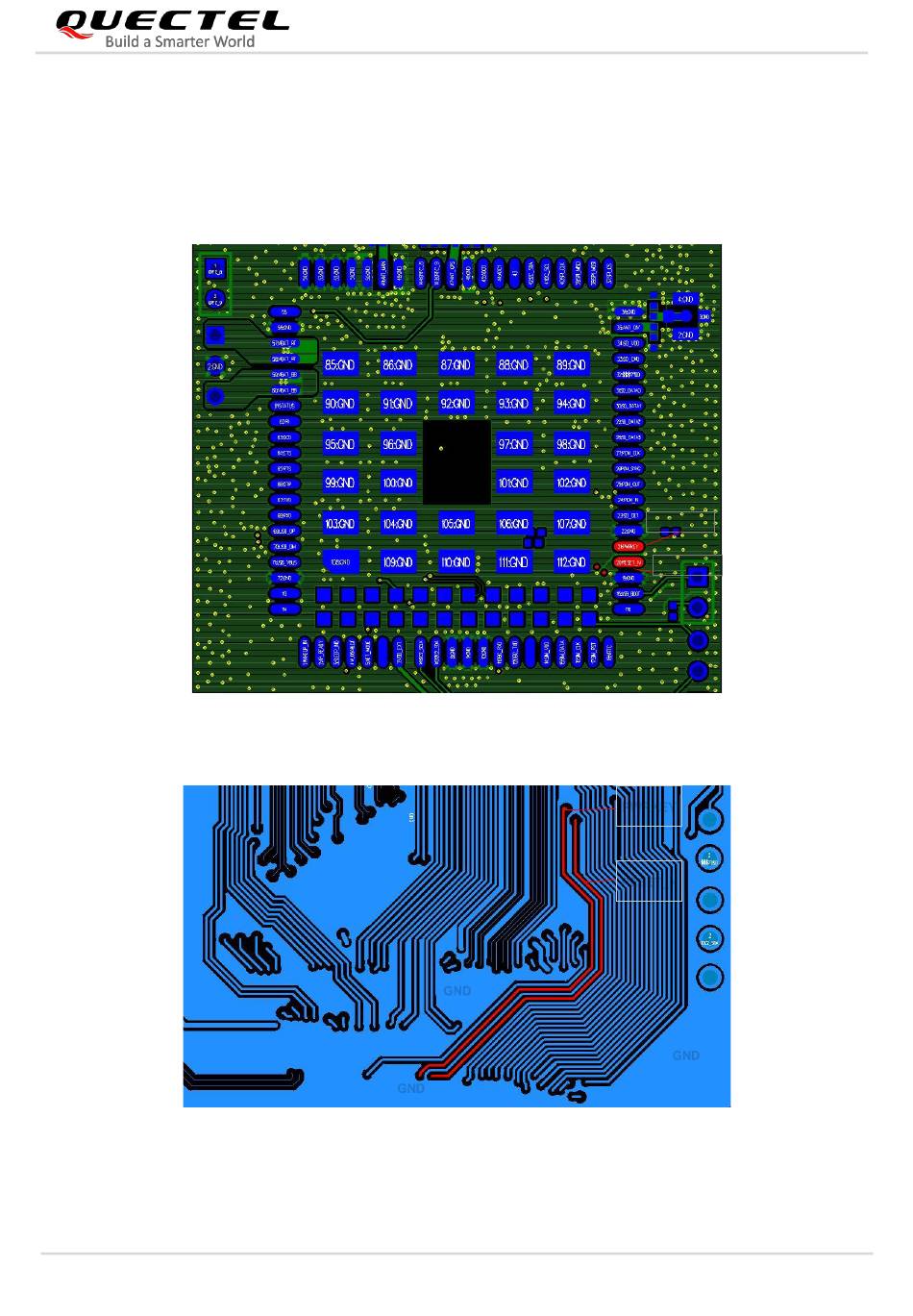

Figure 8: PWRKEY and RESET_N Traces (TE-A 1st Layer)
Figure 9: PWRKEY and RESET_N Traces (TE-A 3rd Layer)
EC2x&EG2x-G_Series_PCB_Design_Guideline
EC2x&EG2x-G Series PCB Design Guideline
GND
GND
LTE Standard Module Series
GND
PWRKEY
RESET
GND
PWRKEY
RESET_N
GND
13 / 37
