DVDD_1V1 is output by AR8033's LX pin through an LC circuit. The 4.7 μH inductor in the LC circuit
should be able to provide 1 A current with low direct current resistance. The trace width for the inductor is
recommended to be at least 1 mm. Besides, there is a reference ground plane needed for inductance
isolation near the 4.7 μH inductor The following figure shows the recommended inductor placement as
well as trace routing and trace width for AR8033 pins.
RJ45
RJ45

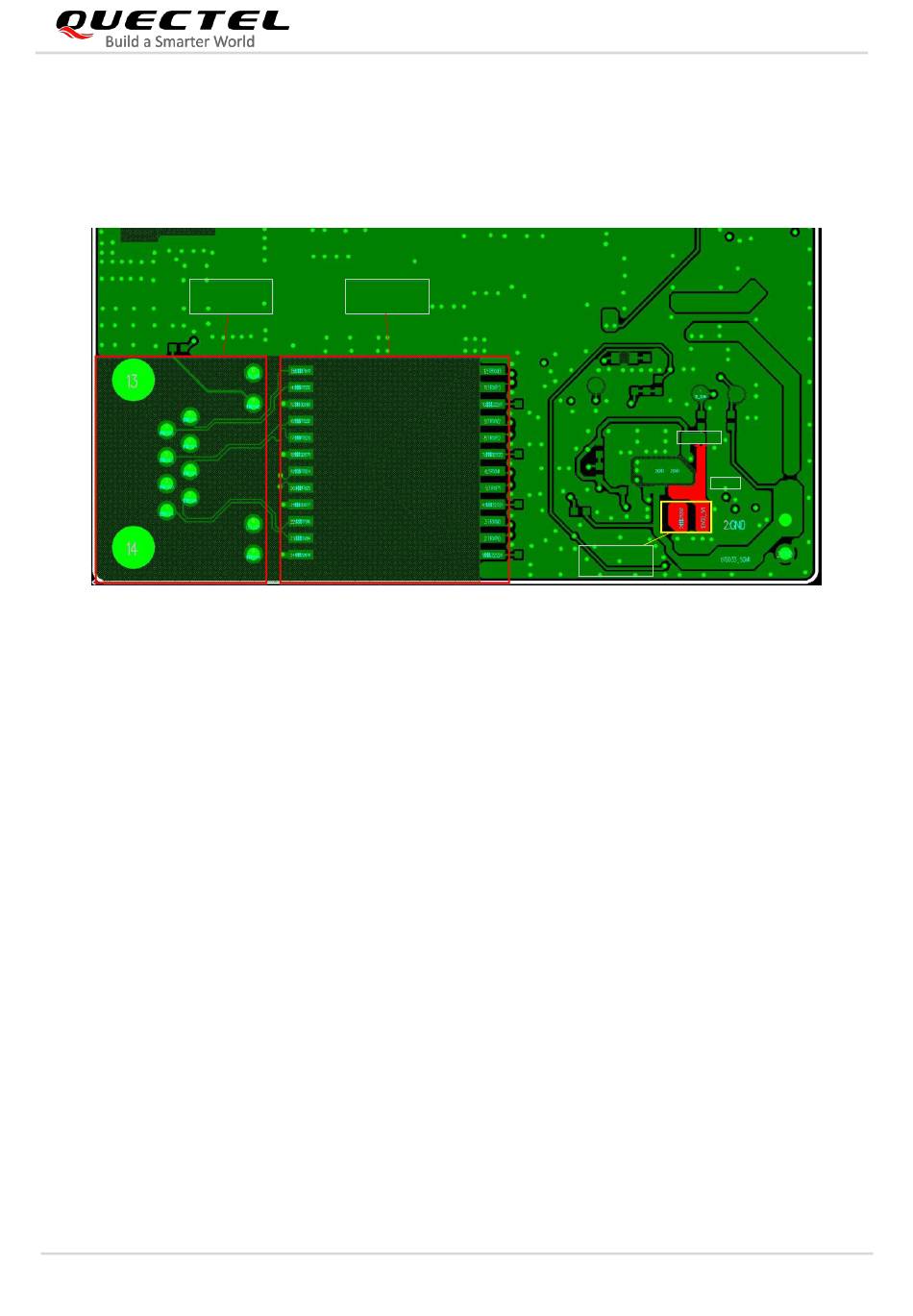

Figure 18: Layout of Recommended 4.7 μH Inductor, GND and Traces of AR8033 (EVB 1st Layer)

3.5. Audio Interfaces

3.5.1. PCM Interface


The filter capacitors for PCM_CLK/PCM_SYNC should be placed close to the two pins.

The PCM bus is recommended to be routed on inner layers, and it is recommended that each trace
be surrounded by ground traces separately. If there are limits of space, at least ensure PCM_CLK is
surrounded by ground traces, and other three signal traces can be surrounded together by ground
traces.

PCM traces should be kept away from interference sources such as clock, RF, crystals, power
supplies, etc.
