VLT AutomationDrive EtherNet/IP

Configuring the Scanner

EDS file
Danfoss Drives provides a generic English EDS (Electronic Data Sheet) file covering all voltage and
power sizes, for off-line configuration.
The EDS file can be downloaded from:
http://www.danfoss.com/BusinessAreas/DrivesSolutions/Softwaredownload/DDFieldbus_Setup_Files.htm
N.B.:
The current version of the major EtherNet/IP configuration tools does not support EDS-files for
EtherNet/IP devices.
Configuring a Rockwell Master
For configuring a FC 300 with MCA121 for operation with a Rockwell (Allen-Bradley) Scanner via
EtherNet/IP, the FC 300 must be added as a Generic Ethernet Module.

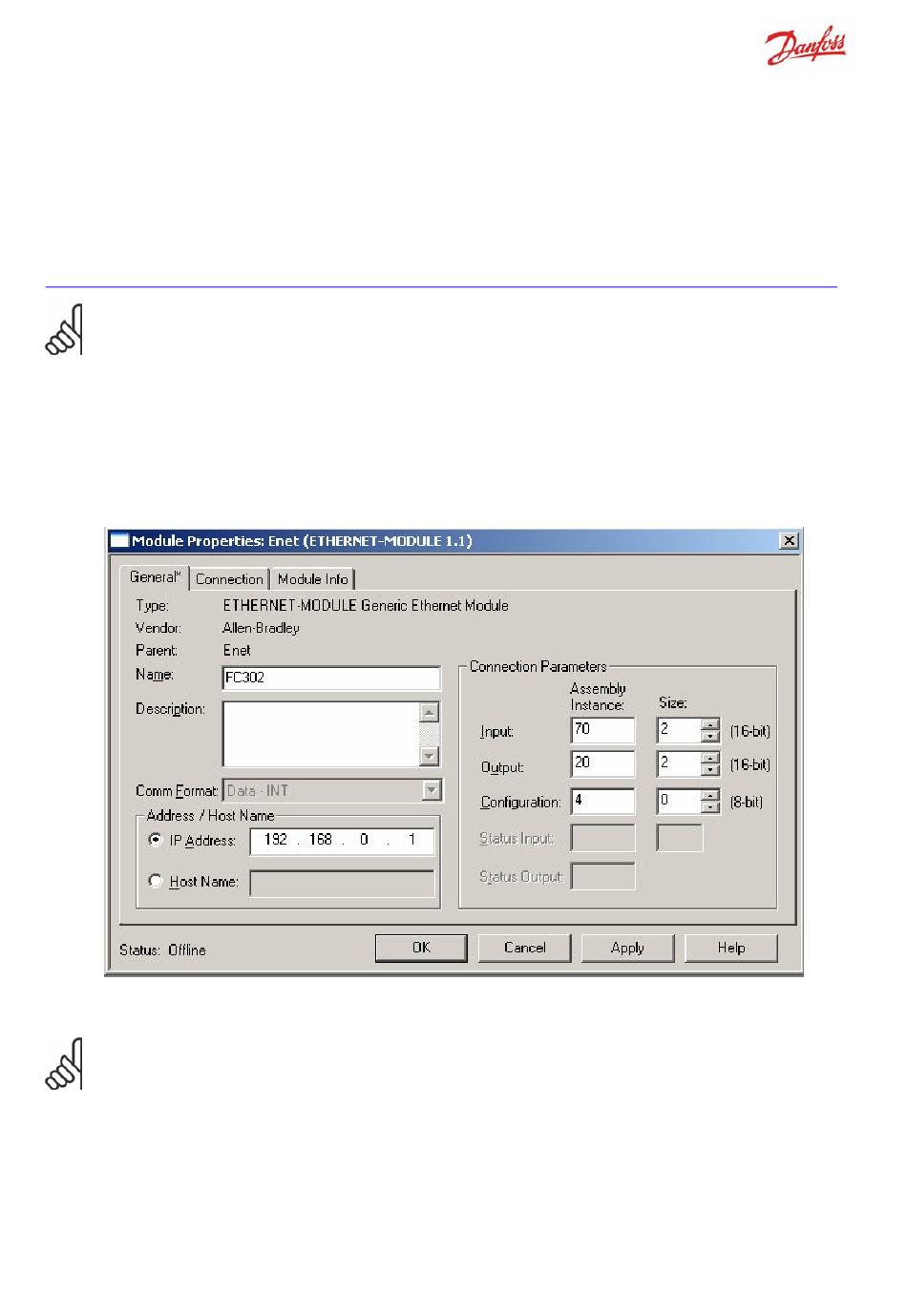

Under the General -tab, enter information about: Name of device, IP Address, Assembly Instance and
Data size.
N.B.:
Under Configuration in the Connection Parameters a "4" must be entered as Assembly Instance.
