5. Gently remove the Teach Pendant cable and Teach Pendant.
1
Clips

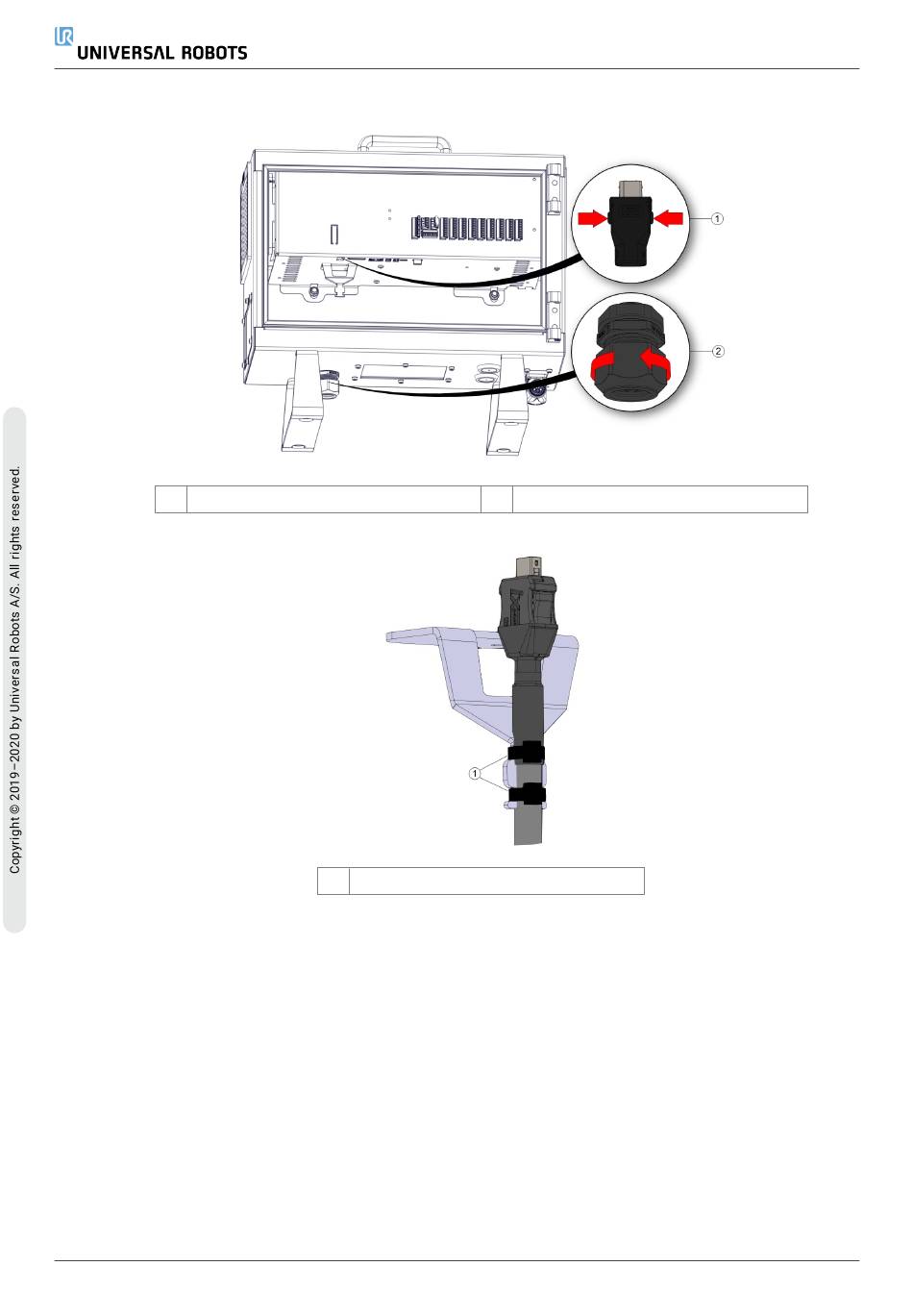

5.3. Installing the 3PE Teach Pendant
1. Place the Teach Pendant plug and cable in through the bottom of the control box and fully
close/tighten the plastic grommet.
2. Push the Teach Pendant plug into the Teach Pendant port to connect.
3. Use two new cable ties to mount the Teach Pendant cables.
4. Connect the main power cable to the power source and power on the control box.
Teach Pendant with 3-Position
Enabling Device
2
1
Cable ties
Plastic grommet
Installation Guide
