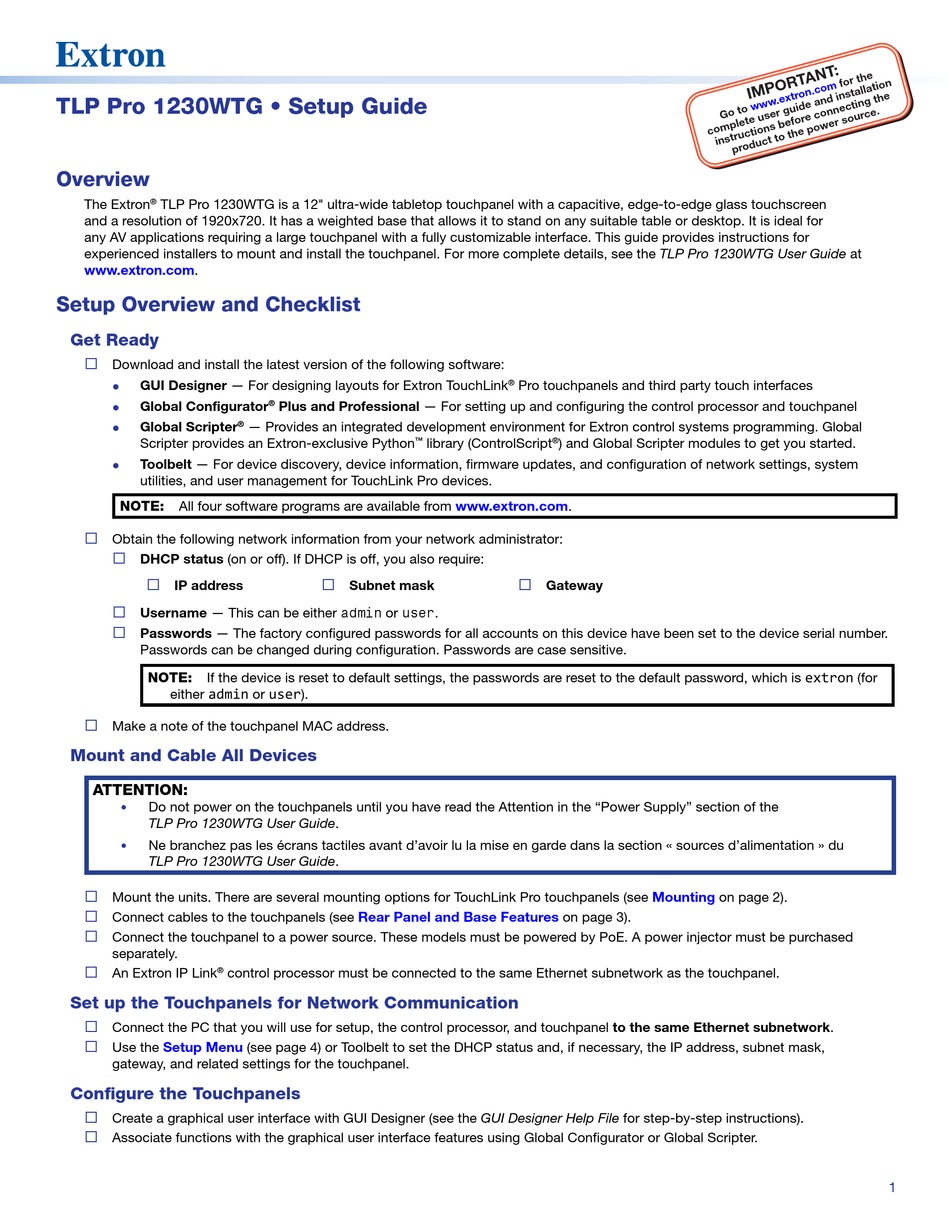

TLP Pro 1230WTG • Setup Guide

Overview

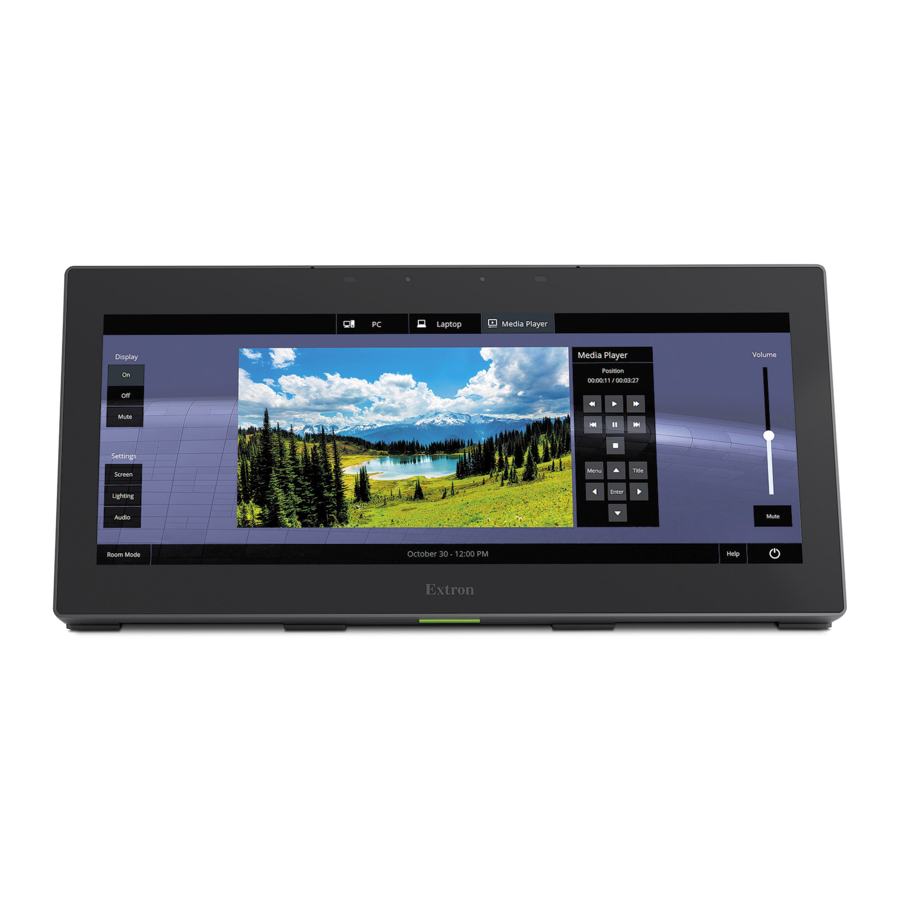

The Extron TLP Pro 1230WTG is a 12" ultra-wide tabletop touchpanel with a capacitive, edge-to-edge glass touchscreen
®
and a resolution of 1920x720. It has a weighted base that allows it to stand on any suitable table or desktop. It is ideal for
any AV applications requiring a large touchpanel with a fully customizable interface. This guide provides instructions for
experienced installers to mount and install the touchpanel. For more complete details, see the TLP Pro 1230WTG User Guide at
www.extron.com.

Setup Overview and Checklist

Get Ready
… Download and install the latest version of the following software:
GUI Designer — For designing layouts for Extron TouchLink
z
Global Configurator
z
Global Scripter
z
Scripter provides an Extron-exclusive Python
Toolbelt — For device discovery, device information, firmware updates, and configuration of network settings, system
z
utilities, and user management for TouchLink Pro devices.
NOTE:
All four software programs are available from
… Obtain the following network information from your network administrator:
… DHCP status (on or off). If DHCP is off, you also require:
… IP address
… Username — This can be either admin or user.
… Passwords — The factory configured passwords for all accounts on this device have been set to the device serial number.
Passwords can be changed during configuration. Passwords are case sensitive.
NOTE: If the device is reset to default settings, the passwords are reset to the default password, which is
admin
either
…
Make a note of the touchpanel MAC address.
Mount and Cable All Devices
ATTENTION:
Do not power on the touchpanels until you have read the Attention in the "Power Supply" section of the
•
TLP Pro 1230WTG User Guide.
Ne branchez pas les écrans tactiles avant d'avoir lu la mise en garde dans la section « sources d'alimentation » du
•
TLP Pro 1230WTG User Guide.
… Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
… Connect cables to the touchpanels (see
… Connect the touchpanel to a power source. These models must be powered by PoE. A power injector must be purchased
separately.
… An Extron IP Link control processor must be connected to the same Ethernet subnetwork as the touchpanel.
®
Set up the Touchpanels for Network Communication
… Connect the PC that you will use for setup, the control processor, and touchpanel to the same Ethernet subnetwork.
Setup Menu
… Use the
gateway, and related settings for the touchpanel.
Configure the Touchpanels
… Create a graphical user interface with GUI Designer (see the GUI Designer Help File for step-by-step instructions).
… Associate functions with the graphical user interface features using Global Configurator or Global Scripter.
Plus and Professional — For setting up and configuring the control processor and touchpanel
®
® — Provides an integrated development environment for Extron control systems programming. Global
™
… Subnet mask
user
or ).
