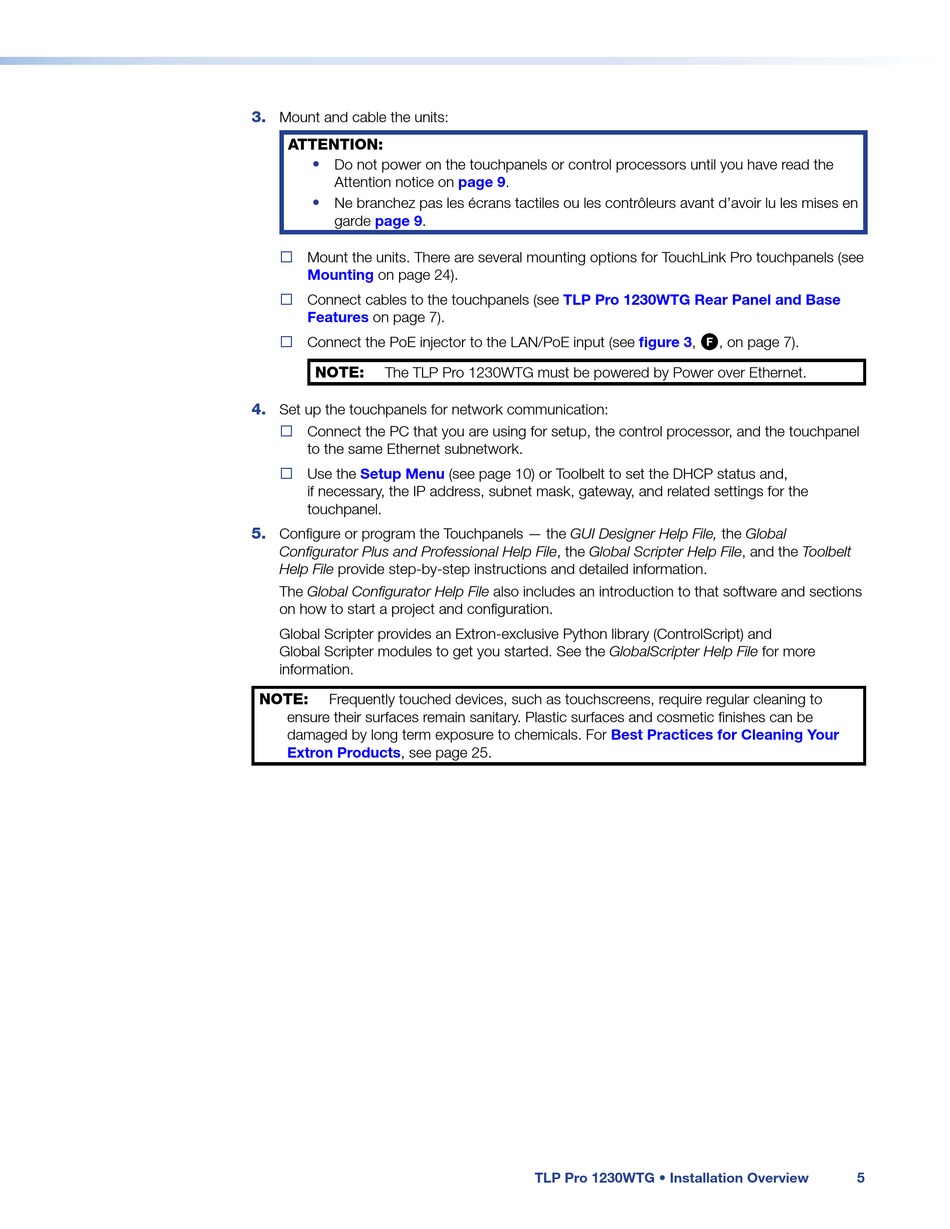

3.
Mount and cable the units:
ATTENTION:
•
Do not power on the touchpanels or control processors until you have read the
Attention notice on
•
Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu les mises en
garde page 9.
Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
…
Mounting on page 24).
Connect cables to the touchpanels (see
…
Features on page 7).
Connect the PoE injector to the LAN/PoE input (see
…
NOTE:
The TLP Pro 1230WTG must be powered by Power over Ethernet.
4.
Set up the touchpanels for network communication:
Connect the PC that you are using for setup, the control processor, and the touchpanel
…
to the same Ethernet subnetwork.
Use the Setup Menu
…
if necessary, the IP address, subnet mask, gateway, and related settings for the
touchpanel.
5.
Configure or program the Touchpanels — the GUI Designer Help File, the Global
Configurator Plus and Professional Help File, the Global Scripter Help File, and the Toolbelt
Help File provide step-by-step instructions and detailed information.
The Global Configurator Help File also includes an introduction to that software and sections
on how to start a project and configuration.
Global Scripter provides an Extron-exclusive Python library (ControlScript) and
Global Scripter modules to get you started. See the GlobalScripter Help File for more
information.
NOTE: Frequently touched devices, such as touchscreens, require regular cleaning to
ensure their surfaces remain sanitary. Plastic surfaces and cosmetic finishes can be
damaged by long term exposure to chemicals. For
Extron Products, see page 25.
