Status Screen

Status button in the navigation panel at the top of any screen to open the Status
Press the
screen.
Status
Info
Model: TLP Pro 1230WTG
Part Number: 60-1668-02
Firmware
Version: 1.02.0001-b001

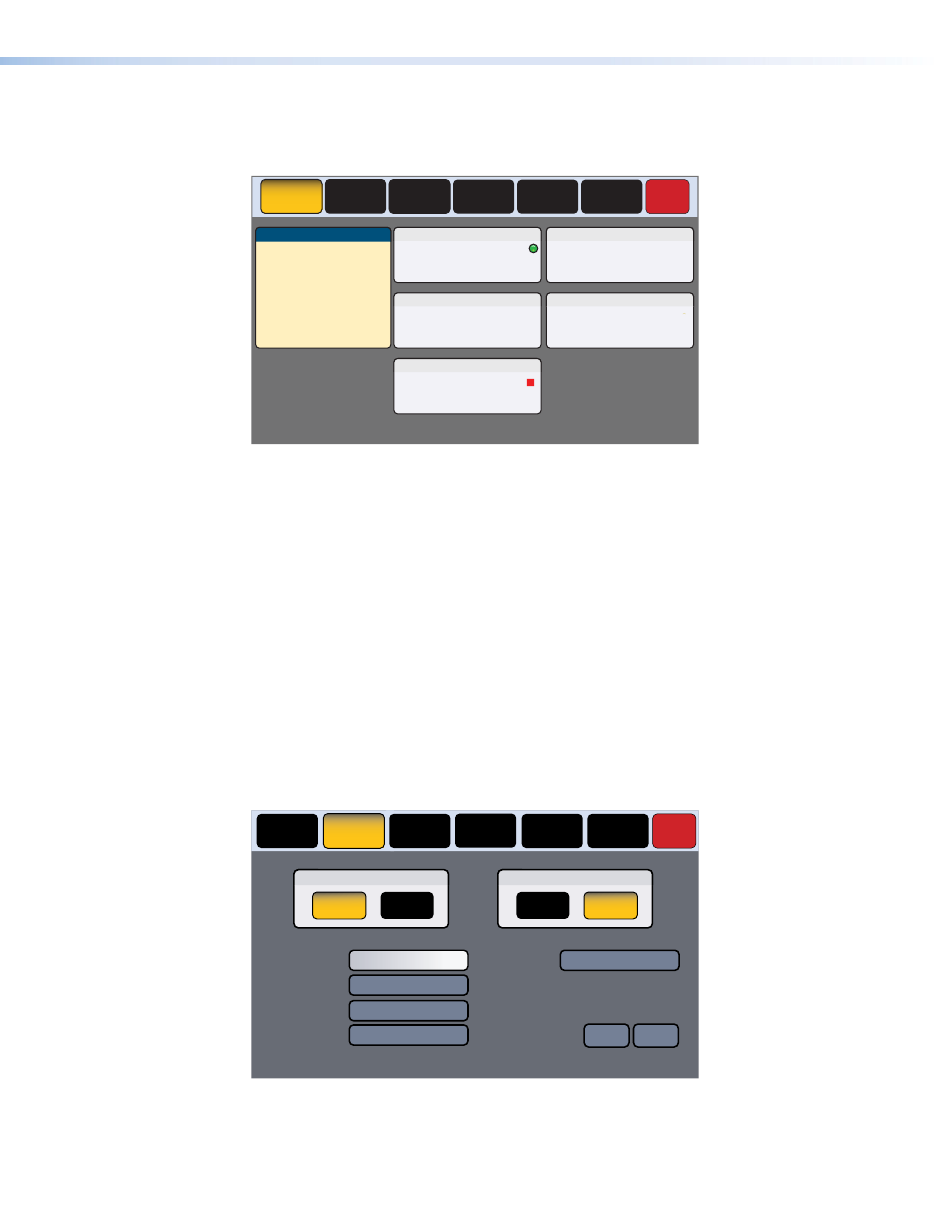

Figure 5.
Status screen is read-only. The Info panel provides basic information about the
The
touchpanel. Each of the other five panels shows a summary of the information on the other
screens. No values can be changed from this screen.
Pressing any of those five panels opens the corresponding screen in exactly the same way as
pressing the buttons in the top navigation bar.
A green bubble in the
appears if there is no connection. The green bubble in the
processor is connected or a red square appears if none is connected.

Network Screen

Network button in the navigation panel at the top of the screen to open the Network
Press the
screen.
Network screen allows you to set the DHCP status and, if DHCP is set to Off , the network
The
addresses for the touchpanel. Verify with your network administrator whether the IP address for
the touchpanel is assigned by DHCP or set manually. If it is set manually, you need to obtain an
IP address, a subnet mask, a gateway address, and a Domain Name Server (DNS) IP address
from the network administrator.
Status
Host Name:
IP Address:
Subnet Mask:
Gateway:
Figure 6.
Audio
Network Display
Network
IP Address: 192.168.254.251
DHCP: Off
Host Name: TLP-AB-CD-EF
Audio
Master Volume: 100
Master Mute: Off
Advanced
Controller IP: 192.168.254.250
Project Size: 1/196 MB
Status Screen
Network panel lights when there is a network connection or a red square
Network Display Audio
DHCP
On Off
TLP-AB-CD-EF DNS Primary:
192.168.254.251 Domain Name:
255.255.255.0 Mac Address:
0.0.0.0
Network Screen
Input Advanced Exit
Display
Resolution: 1920x720
GUI Project: 1280x800
Sleep Timer: 5 Minutes
Input
HDMI Port: No Signal
Advanced panel lights when a control
Input Advanced Exit
Max. Ethernet Speed
100Mbps 1.0Gbps
127.0.0.1
home
00-05-A6-AB-CD-EF
Revert Apply
