- Page 1 User Guide TouchLink ® TLP Pro 520M TouchLink Pro Touchpanel Control Systems 68-2153-01 Rev. A 09 14...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Инструкция по технике безопасности • Русский WARNING: This symbol, , when used on the product, is intended ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан to alert the user of the presence of uninsulated dangerous voltage на... - Page 3 Extron Safety and Regulatory Compliance Guide on the Extron website. Copyright © 2014 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks( ®...
- Page 4 Conventions Used in this Guide Notifications In this user guide, the following are used: Potential risk of severe injury or death. WARNING: AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure.
-
Page 5: Table Of Contents
Contents Configuration Software Introduction ............1 ........16 Configuration Software ........16 About the TLP Pro 520M ........1 Features ............. 1 Installing GUI Designer and Global Configurator ........16 Application Diagram ........... 2 Using the Software ........17 TLP Pro 520M Web Page ......... 17 Installation Overview ........... - Page 6 TLP Pro 520M • Contents...
-
Page 7: Introduction

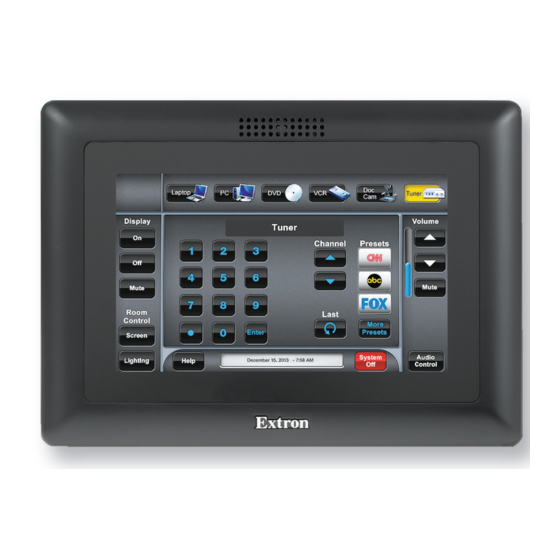

Introduction This guide describes the function, installation, and operation of the TLP Pro 520M TouchLink Pro touchpanel. Unless otherwise stated, the terms TLP Pro and touchpanel refer to the TLP Pro 520M. About the TLP Pro 520M The Extron TLP Pro 520M is a 5-inch, wall-mounted touchpanel with an 800x480 capacitive glass touchscreen that can be mounted in both portrait and landscape orientations. -
Page 8: Application Diagram
mounts on a wall, lectern, or any flat Multiple mounting options — The TLP Pro 520M surface including glass . When required, mounting kits must be purchased separately. • Mounts in either the portrait or landscape orientation. Supports TouchLink for iPad and TouchLink for Web. •... -
Page 9: Installation Overview
Installation Overview Before starting, download and install the latest versions of the following software: Global Configurator Plus and Global Configurator Professional — For setting … up and configuring the control processor and touchpanel. GUI Designer — For designing layouts for Extron TouchLink Pro touchpanels and …... - Page 10 Configure the Touchpanels — The Global Configurator Plus and Global Configurator Professional Help File, and the GUI Designer Help File provide step-by-step instructions and more detailed information. The Global Configurator Plus and Global Configurator Professional Help File includes an introduction to the software and sections on how to start a project and configuration. TLP Pro 520M •...
-
Page 11: Panel Features
Panel Features This section describes: • TLP Pro 520M Front Panel Features and Operations • TLP Pro 520M Rear Panel Features and Connections TLP Pro 520M Front Panel Features and Operations C DB Figure 2. TLP Pro 520M Bezel (left) and Front Panel without Bezel (right) Bezel Status Lights Communication LED... -
Page 12: Tlp Pro 520M Rear Panel Features And Connections
Motion sensor — Detects motion between 3 to 5 feet from the touchpanel and at least 15° from the center axis. • When no motion has been detected for a user-defined period of time, the screen display enters into sleep mode. When motion is detected by the sensor, the screen display is restored and active. - Page 13 Power connector — Connect this 2-pole, 3.5 mm captive screw receptacle to a 12 VDC, 1.0 A power supply (not provided). Extron recommends the PS 1210C power supply (part number 70-775-01). Ensure the connections have the correct polarity as shown in figure 4. The two power cord wires must be kept separate while the power WARNING: supply is plugged in.
- Page 14 ATTENTION: • Always use a power supply provided by or specified by Extron. Use of an unauthorized power supply voids all regulatory compliance certification and may cause damage to the supply and the end product. • Utilisez toujours une source d’alimentation fournie ou recommandée par Extron. L’utilisation d’une source d’alimentation non autorisée annule toute conformité...
- Page 15 INPUT Digital input monitoring port — This two-pole captive screw port (1 = signal; G = ground) monitors the voltage level of a system and triggers an event when the voltage passes the built-in threshold. The fixed pull-up allows the port to detect a relay closure or an external voltage pull-up.
- Page 16 ATTENTION: • The TLP Pro 520M is intended for connection to a Power over Ethernet circuit for intra-building use only and are considered to be part of a Network Environment 0 per IEC TR62101. • Le TLP Pro 520M est conçu pour une connexion à un circuit PoE pour une utilisation intérieure seulement et est considéré...
-
Page 17: On-Screen Menus
On-screen Menus This section describes the setup menu. Setup Menu To access the setup menu, remove the front panel bezel (see Step 11 of Wall or Furniture Mounting on page 20) and press the button (see figure 2 , on page 5). Menu The menu opens at the Status screen. -
Page 18: Network Screen
Network Screen Verify with your network administrator whether the IP address for the touchpanel is assigned by DHCP or set manually. If they are set manually, you need to obtain an IP address, a subnet mask, a gateway address, and a Domain Name Server (DNS) IP address from the network administrator. - Page 19 If DHCP is disabled, set the unit IP address, subnet mask, gateway address, and DNS server address. Press the button for the address to be edited. screen opens, The IP Address showing the address and a numerical keypad. IP Address Clear 1 9 2 1 6 8 2 5 4...
-
Page 20: Display Screen
Display Screen Display Audio Advanced Exit Status Network Auto Brightness Sleep Timer LCD Brightness Minutes Wake on Motion Figure 10. Display Screen The Display screen allows you to set the Sleep Timer, Auto Brightness, LCD Brightness, and Wake on Motion. • Sleep Timer —... -
Page 21: Advanced Screen
Advanced Screen Click in the top menu bar. Advanced Display Audio Advanced Exit Status Network System GUI Project Touchpanel Name: TLP-AB-CD-EF Name: Jet Video Conference System Controller Name: IPCP 505 - North Hall Resolution: 800x480 Controller IP: 192.168.254.11 Creation Date: 2/12/2014 ------------------------------------------------------------- Revision Date:... -
Page 22: Configuration Software
Configuration Software This section of the user guide provides information about: • Configuration Software • TLP Pro 520M Web Page • Updating Firmware Configuration Software Designing a graphical user interface (GUI) for the TouchLink Pro touchpanel consists of two steps: Design the layout of the screen text and graphics using GUI Designer. -
Page 23: Using The Software
The single page provides general and network information about the unit. It also allows you to upgrade the unit firmware. Use the Setup Menu (see page 11) or the Toolbelt feature of Global Configurator to configure the touchpanel network settings. Extron Electronics ® General Status Project Model Name: TLP Pro 520M... -
Page 24: Downloading Firmware
Downloading Firmware Power on a computer that is connected to the same network as the touchpanel. On the Extron website, click Download in the menu bar along the top of the page (see figure 15, Figure 15. Firmware Download Center Click in the menu bar in the left side bar ( Firmware Click the letter... -
Page 25: Mounting
Mounting This section outlines the various options for: • Wall or Furniture Mounting • Other Mounting Options Wall or Furniture Mounting ATTENTION: • Do not install the TLP Pro 520M in a fire resistant rated wall or partition assembly. • Ne pas installer le TLP Pro 520M dans un mur résistant au feu ou une cloison. - Page 26 TLP Pro 520M Rear Panel Features Plug the cables into the rear panel connectors (see and Connections on page 6). If required, connect the digital input monitoring port. • • Connect the LAN port to the PoE power injector or a PoE enabled switch. If you use the LAN port only as a network connection, connect a 12 VDC, 1.0 A •...
-
Page 27: Other Mounting Options
Other Mounting Options Extron provides a range of mounting kits for the TLP Pro 520M. These allow the touchpanel to be mounted on glass surfaces, desktops (fixed or swivel mount), rack mounted (see below for important guidelines about rack mounting), and wall mounted, with a wall box. www.extron.com for the complete range of mounting options. -
Page 28: Reference Material
Reference Material This section contains information about: • Reset Modes • Licensed Third-Party Software Used in the Touchpanels Reset Modes The TLP Pro 520M touchpanel has three reset modes that are initiated by pressing the Reset button. The Reset button is found on the rear panel (see figure on page 6). -
Page 29: Reset All Ip Settings
Reset All IP Settings Activation To reset all IP settings: Hold down the Reset button for approximately 6 seconds until the Power LED blinks twice (once at 3 seconds, again at 6 seconds). Release and press Reset momentarily (for <1 second) within 1 second. Nothing happens if the momentary press does not occur within 1 second. -
Page 30: Licensed Third-Party Software Used In The Touchpanels
Licensed Third-Party Software Used in the Touchpanels The touchpanels use various licensed third-party software packages during operation. To view details about third-party packages and associated licensing, click the License Information internal web page button on the Unit Information page of the (see page 17). - Page 31 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
