10.3. Seal cap

Model No.: EX9-AWTS

(10 pieces for M12 socket connectors)

The EX9-AWTS can be used with the EX245-SPN3A, EX245-DX1 and EX245-DY1.

Mount the seal cap in the unused sockets.

IP65 rating is maintained by using the seal cap properly.

NOTE

・

Tighten the seal caps to the tightening torque specified (0.2N•m)

・

In case of the EX245-SPN3A, M12 Seal caps is fitted to PROFINET connection Port2 (XF2)

when shipped from factory.

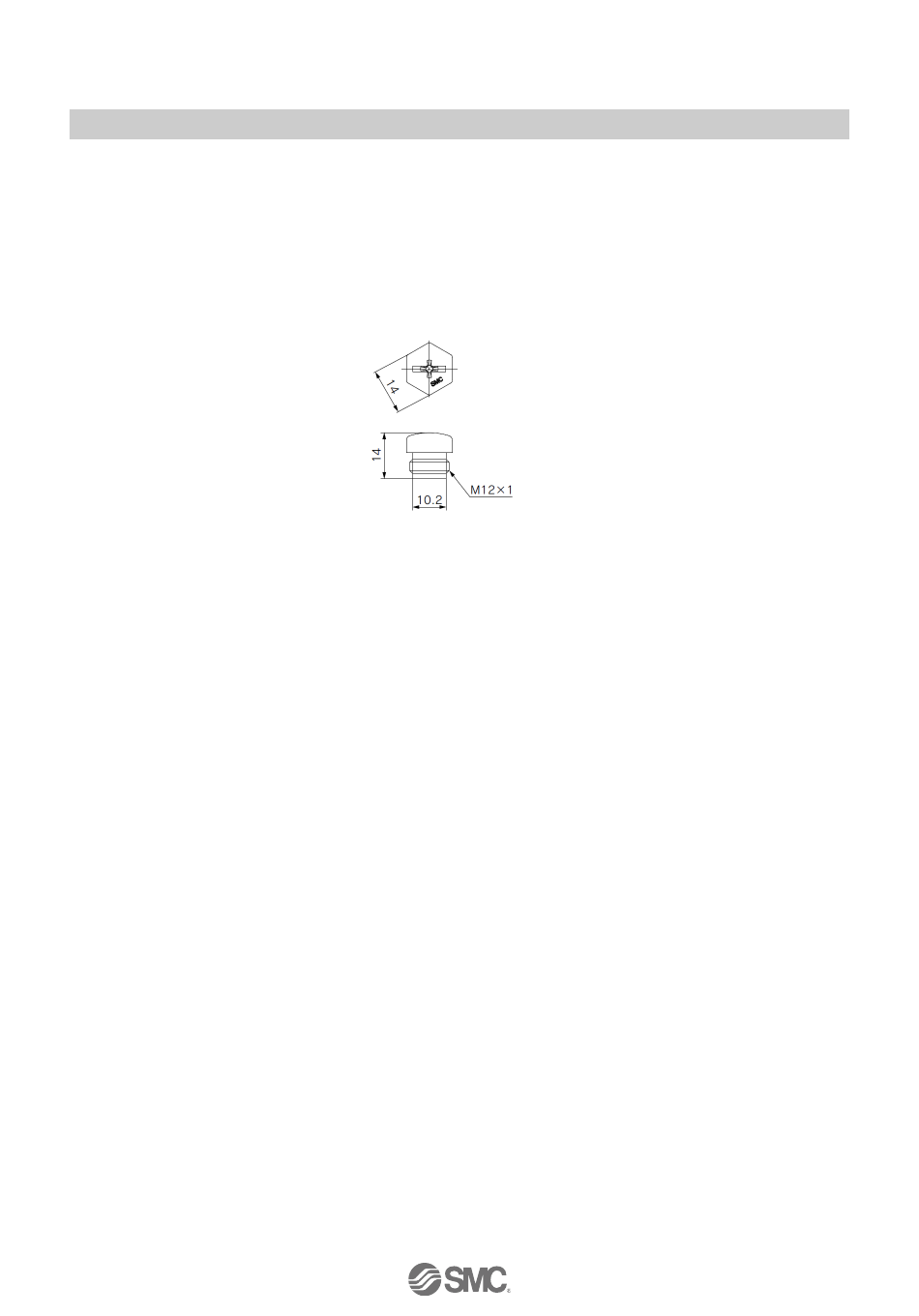

Fig. 10-4 EX9-AWTS

- 60 -

No.EX※※-OMW0011-A
