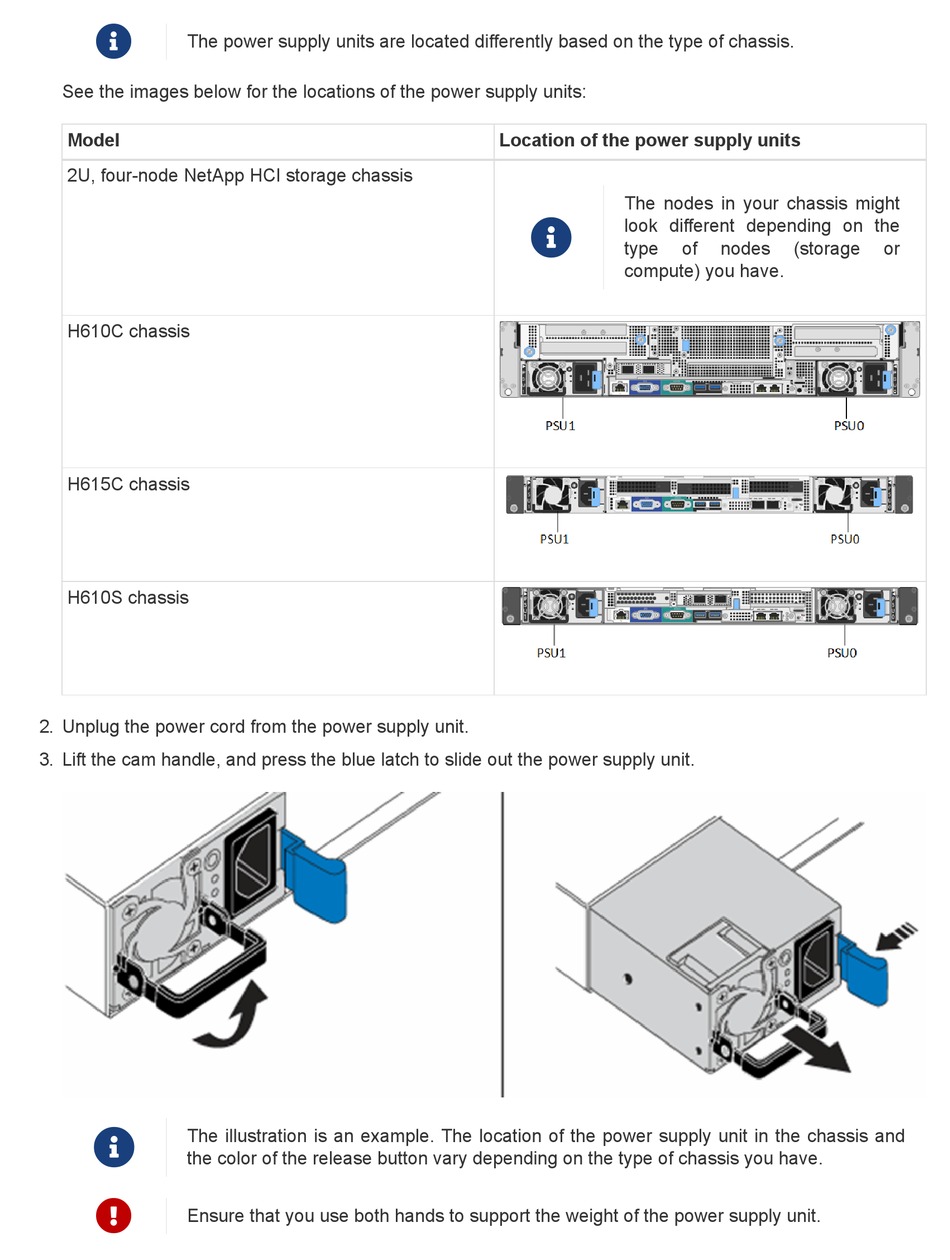

The power supply units are located differently based on the type of chassis.
See the images below for the locations of the power supply units:
Model
2U, four-node NetApp HCI storage chassis
H610C chassis
H615C chassis
H610S chassis
2. Unplug the power cord from the power supply unit.
3. Lift the cam handle, and press the blue latch to slide out the power supply unit.

The illustration is an example. The location of the power supply unit in the chassis and
the color of the release button vary depending on the type of chassis you have.

Ensure that you use both hands to support the weight of the power supply unit.
Location of the power supply units
The nodes in your chassis might

look different depending on the
type
compute) you have.
of nodes (storage or
