14
6.6
Optional 66 Block Connector
Both of the 50-pin connectors on the back panel of the NetGuardian can be connected to DPS
Telecom's optional 66 block connector. For pinout and color-code information, see the diagrams below.
Note: The 66 Block supports termination of 22 - 26 AWG (0.81 - 0.41mm) solid insulated cable or 18-19
AWG (1.02 - 0.91mm) solid stripped cable. DPS recommends using 24 AWG wire (solid).

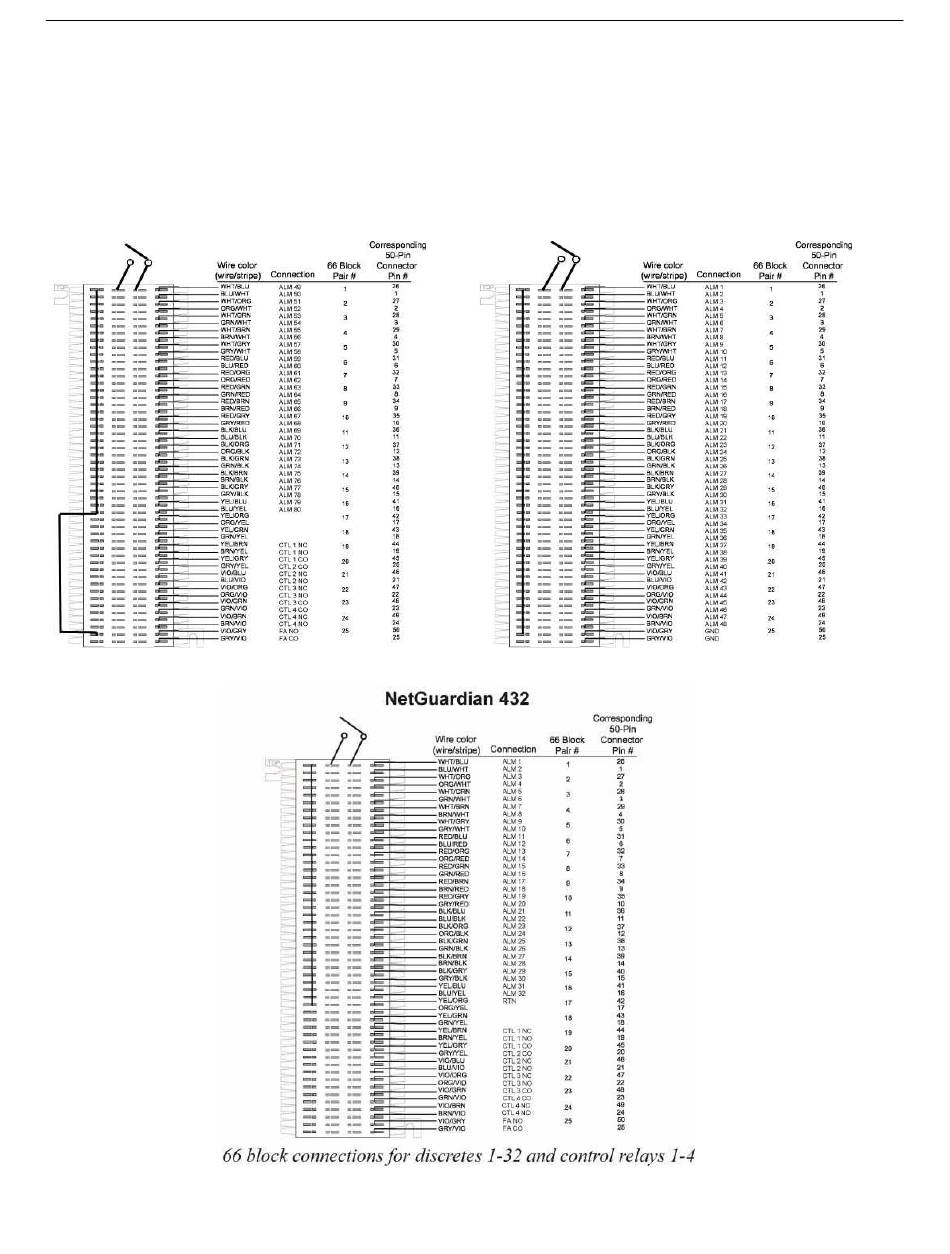

NetGuardian 480 G3
66 block connections for discretes 49-80 and control relays
66 block connections for discretes 1-48 (right amphenol)
1-4 (left amphenol)
