- Page 1 HEX70HDU-KIT User Manual RevA0_HEX70HDU-KIT_Manual_201123...
-
Page 2: Table Of Contents
Terminating CAT Cables for use with HDBT Understanding the HDBaseT™ Status LED’s Schematic Web GUI Control 10-14 IR Commands RS-232 Config & Telnet Commands 16-18 Specifications Package Contents Maintenance Certifications www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk... -
Page 3: Introduction
HEX70HDU-KIT USER MANUAL Introduction Our HEX70HDU-KIT extender kit is an industry leading 4K HDBaseT™ multi-format solution delivering HDMI, USB-C and DisplayPort™ up to lengths of 70m at 1080p (40m at 4K 60Hz 4:4:4) over a single CAT cable. The HEX70HDU-KIT provides enhanced features including local HDMI input on the HDBaseT™... -

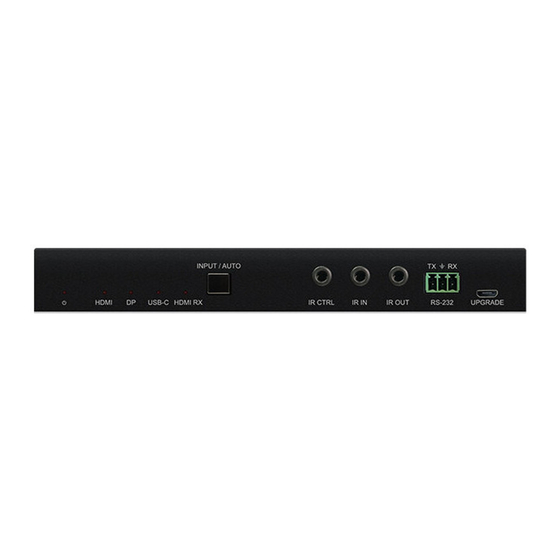

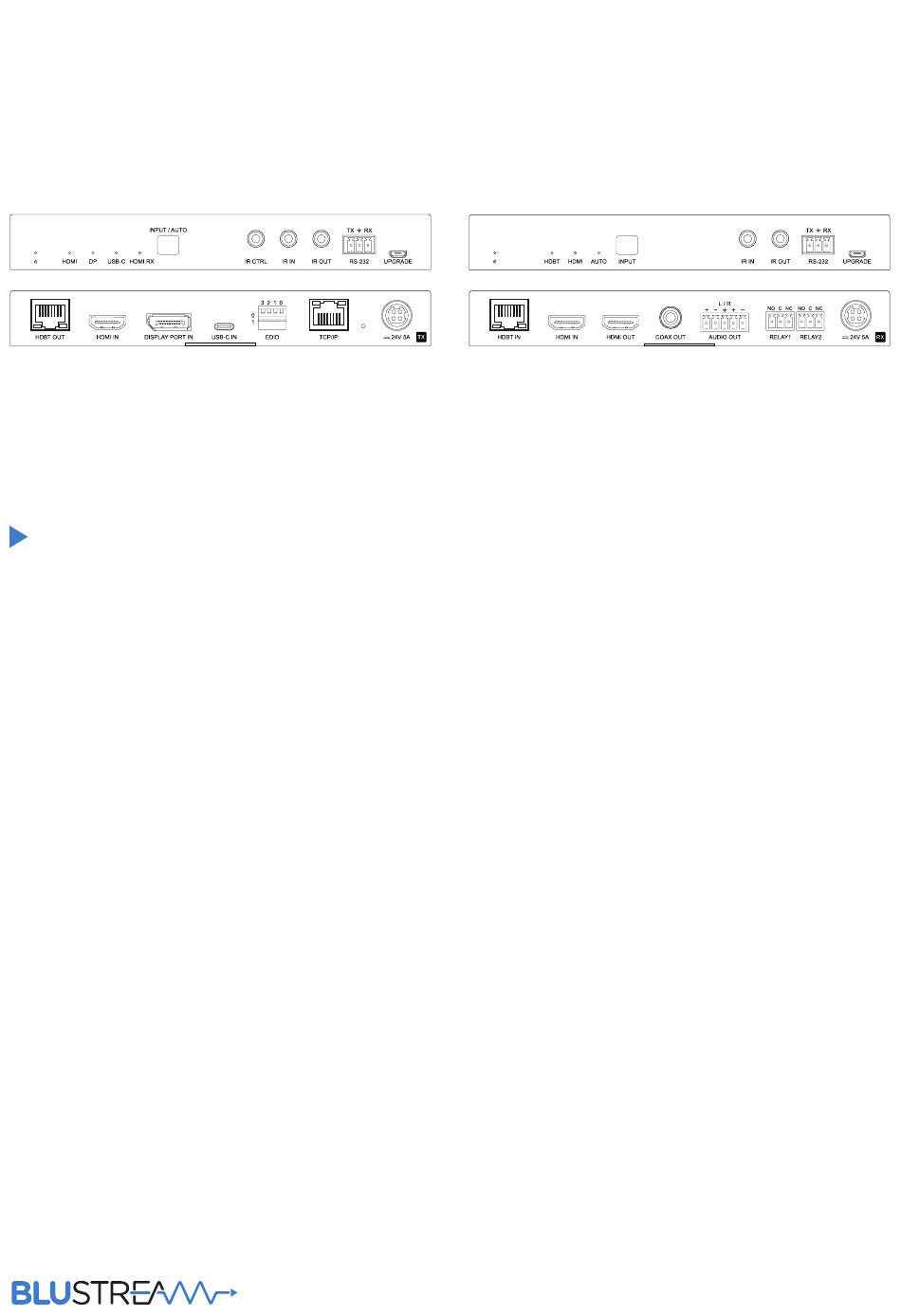

Page 4: Tx Panel Description
EDID DIP switch (UP=0, DOWN=1) sense switching TCP/IP (RJ45) – connect to LAN for TCP/IP control IR control port (to Blustream 5V 3.5mm IR receiver or Default IP of the HEX70HDU-KIT is 192.168.0.200 IR control device) Reset HEX70HDU to default IP settings IR IN (from Blustream 5V 3.5mm IR receiver) -
Page 5: Usb-C Functionality
Auto switching is enabled by default on both Transmitter and Receiver. When enabled, if a source is disconnected, the HEX70HDU-KIT will go back to the previously active input, and if the previously active input isn’t available it will find the next active input starting from input 1 to input 4. -
Page 6: Automatic System On/Off Control
• Relay 2 does not have this feature For relay API commands, please see the RS-232 Configuration and Telnet Commands section at the rear of this manual. POWER SUPPLY MOTORISED PROJECTOR SCREEN TRIGGER 5V/12V www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk... -
Page 7: Infrared (Ir) Control
The Blustream range of extender products include source switching control via IR. IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12V IR control solutions please use the Blustream IRCAB cable for IR conversion. -
Page 8: Understanding The Hdbaset™ Status Led's
When installing CAT cables it is advised that you use the best possible CAT cable quality. HDMI distribution products will only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 cable (or better) for installations, especially when running longer distances, in areas of high EMI, or for 4K signal distribution. It is advised that using any method of patch panel, wall plate, or join within the CAT cable is avoided as these can add degradation to the signal. -
Page 9: Schematic
HEX70HDU-KIT USER MANUAL Schematic contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk... -
Page 10: Web Gui Control
Guest Control Page The Guest Control page allows a guest user to change inputs without needing to be logged into the HEX70HDU. Simply select the square that corresponds with the input you wish to select. www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk... - Page 11 HEX70HDU-KIT USER MANUAL Login Page The Login page allows a user or admin to login and access additional functionality. This page also shows you the current firmware version of both the kit and web GUI. User Control Page - Source A logged in User or Admin Control Page allows a user to change inputs for the HEX70HDU.
- Page 12 If RS-232 Off is enabled, the User Off Command will be sent out of the Receiver, when the Transmitter stops sensing a signal. You can also specify the Baud Rate and Command Ending (eg: new line, carriage return) to the match the RS-232 device connected to the Receiver. www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk...
- Page 13 HEX70HDU-KIT USER MANUAL Configuration Page - Input The Configuration Page allows you to configure settings to do with both inputs and outputs of the HEX70HDU. You can select the configuration for either Input or Output at the top of the page.
- Page 14 Web GUI, as well as allowing or disallowing access to each input or output in the product. The Admin Page also allows you to lock or unlock the Front Panel Buttons of the HEX70HDU-KIT as well as Factory Reset the unit.
-
Page 15: Ir Commands
HEX70HDU-KIT USER MANUAL IR Commands NEC Customer Code = 1898 Advanced features are not available via IR commands COMMAND 0000 0069 0000 002a 0150 00a8 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015... - Page 16 \r or 0D (in hex) • Spaces – Blustream commands do not require space between commands unless specified. There may be some programs that require spacing in order to work. - How the string should look is as follows OUT01ON - How the string may look if spaces are required: OUT{Space}01{Space}ON •...
- Page 17 HEX70HDU-KIT USER MANUAL RS-232 Configuration and Telnet Commands COMMAND ACTION COMMAND ACTION Print Help Information ANALOGUE ON/OFF Set Analogue Audio Out On Or Off HELP Print Help Information BALANCEDAUD ON Set Analogue Audio Out To Balanced STATUS Print System Status And Port Status...
- Page 18 Set Telnet Port Set RS232 Baud Rate To z RS232BAUD z z = 1 2400, 2 4800, 3 9600, 4 19200, 5 38400, 6 57600 (default), 7 115200" NET DHCP ON/OFF Set Auto IP(DHCP) ON Or OFF www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk...
-
Page 19: Specifications
HEX70HDU-KIT USER MANUAL Specifications HEX70HDU-TX Transmitter • Video Input Connectors: 1 x HDMI Type A, 19-pin, female; 1 x USB Type C; 1 x DisplayPort™ • Video Output Connectors: 1 x HDBaseT™ RJ45 connector • RS-232 Serial Port: 1 x 3-pin phoenix connector •... - Page 20 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling. www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk...
