Summary of Contents for BluStream Dante DA44AU
-
Page 1: User Manual
DA44AU User Manual RevA3_User_Manual_DA44AU... -
Page 2: Panel Descriptions
Use of surge protection systems is highly Specifications recommended in order to protect and extend the life of your equipment. Packaging Contents Acknowledgements Installer Notes 10 - 11 www.blustream.com.au / www.blustream.co.uk... -
Page 3: Introduction
Our DA44AU is a four input / four output Dante® digital audio converter. The DA44AU allows any non-Dante® audio source such as mixing consoles, amplifiers, computers and Blustream Matrix products or distribution products to be connected as an audio source within a Dante® network, as well as converting a Dante®... -

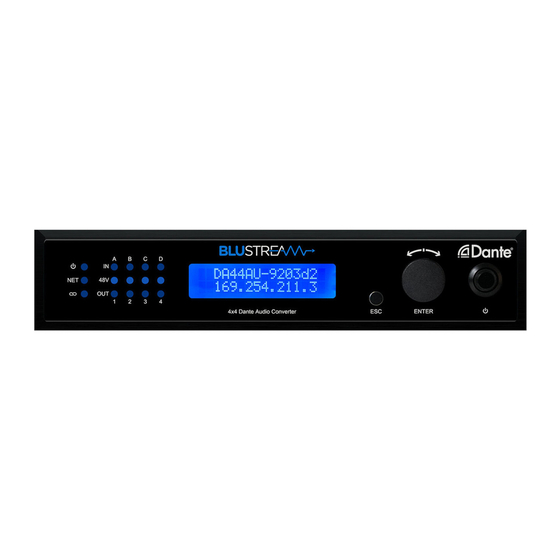

Page 4: Front Panel
DA44AU device due to limitations of the Dante® Ultimo chipset) 4ch Audio Inputs - 12-Pin Phoenix connector to connect to microphone or source audio device to convert the input signal to Dante® audio, supports both balanced and unbalanced signals including 48V phantom power www.blustream.com.au / www.blustream.co.uk... -
Page 5: Audio Input Settings
Dante® transmitters and receivers in your system. Note: It is not possible to route audio input into the DA44AU to an output within the same DA44AU due to limitation in the Dante Ultimo chipset. ® contact support@blustream.com.au / support@blustream.co.uk RevA3_User_Manual_DA44AU... -
Page 6: Dante® Controller
Dante® products that are set up with the same sample rate. A mismatch in sample rate may stop audio from transmitting. Under the “Device Config” screen we can also adjust the latency of the DA44AU from 1, 2 or 5 milliseconds. www.blustream.com.au / www.blustream.co.uk... - Page 7 DA44AU USER MANUAL contact support@blustream.com.au / support@blustream.co.uk RevA3_User_Manual_DA44AU...
-
Page 8: Rs-232 Control Port
NET DHCP ON/OFF Set Auto IP (DHCP) On Or Off NET IP xxx.xxx.xxx.xxx Set IP Address NET GW xxx.xxx.xxx.xxx Set Gateway Address NET SM xxx.xxx.xxx.xxx Set Subnet Mask Address NET RB Reboot Network And Apply Default Config www.blustream.com.au / www.blustream.co.uk... -
Page 9: Package Contents
12V/1A DC Package Contents • 1 x DA44AU • 1 x User Manual • 1 x Mounting Kit • 1 x 12V/1A DC Power Supply Acknowledgements Dante® is a registered trademark of Audinate Pty Ltd. contact support@blustream.com.au / support@blustream.co.uk RevA3_User_Manual_DA44AU... -
Page 10: Installer Notes
DA44AU USER MANUAL Installer Notes: www.blustream.com.au / www.blustream.co.uk... - Page 11 DA44AU USER MANUAL contact support@blustream.com.au / support@blustream.co.uk...
- Page 12 www.blustream.com.au...
