Infrared (IR) Control
The Blustream range of extender products include source switching control via IR.
IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers
Infrared solutions. When using third party 12V IR control solutions please use the Blustream IRCAB cable for IR
conversion.

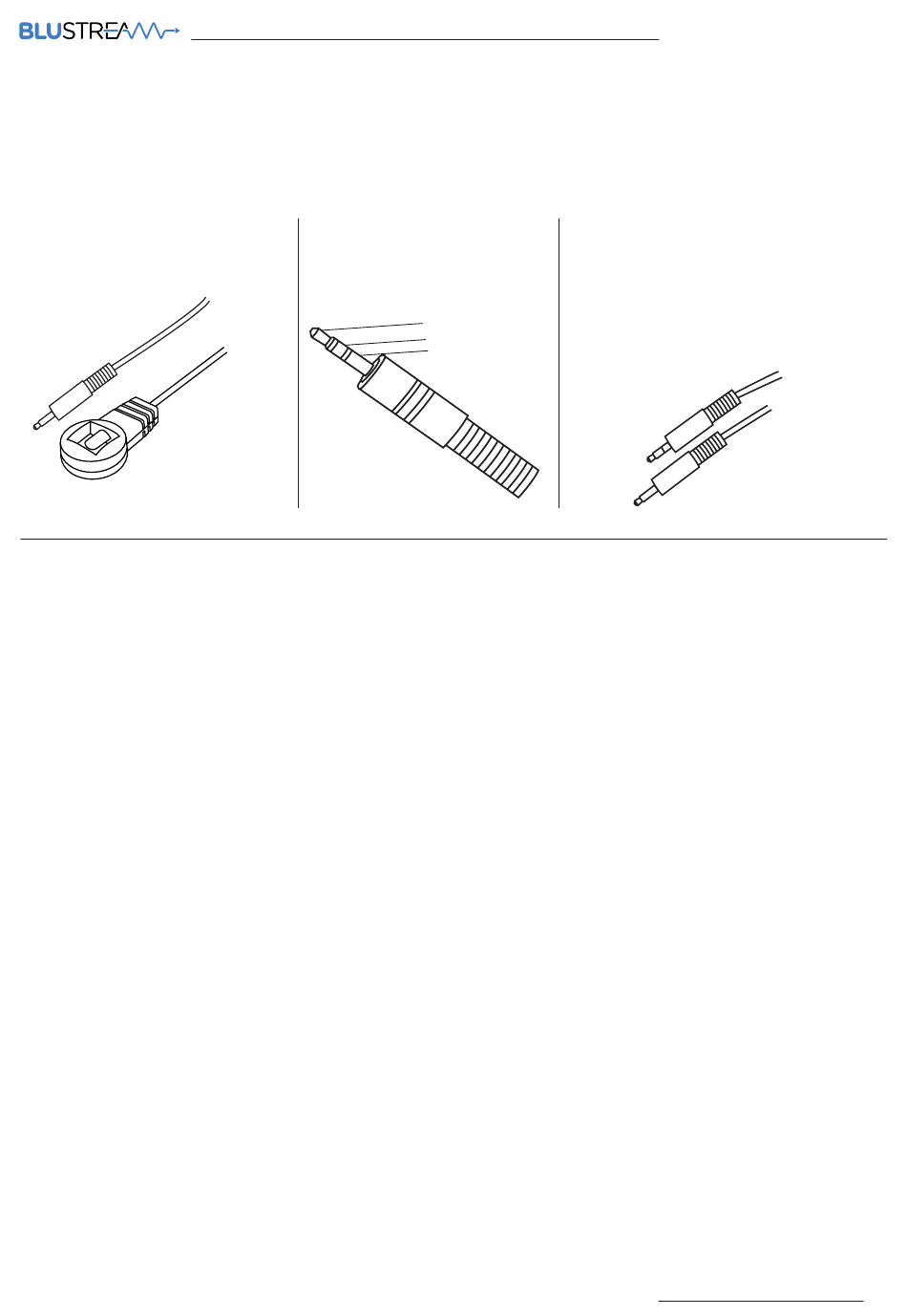

IR Receiver - IRR
Blustream 5V IR receiver to receive
an IR signal for control of the
extender.
CEC Control
The HEX70HDU features CEC control of source devices and displays via the products web GUI and RS-232. It is possible
to send CEC commands such as power on / off, input selection, as well as volume up or down.
Please see the RS-232 command list at the end of this document for a full list of CEC commands available.
Please note: CEC is subject to the support of standardised codes for the sources and displays connected to the
extender.
contact:
support@blustream.com.au
IR Receiver - Stereo 3.5mm
Signal
5V
Ground
|
support@blustream-us.com
IR Control Cable - IRCAB (not supplied)
Blustream IR Control cable 3.5mm Mono to
3.5mm Stereo for linking third party control
solutions to Blustream products.
Compatible with 12V IR 3rd party products.
Please Note: cable is directional as
indicated.
|
support@blustream.co.uk
HEX70HDU-KIT
USER MANUAL
07
