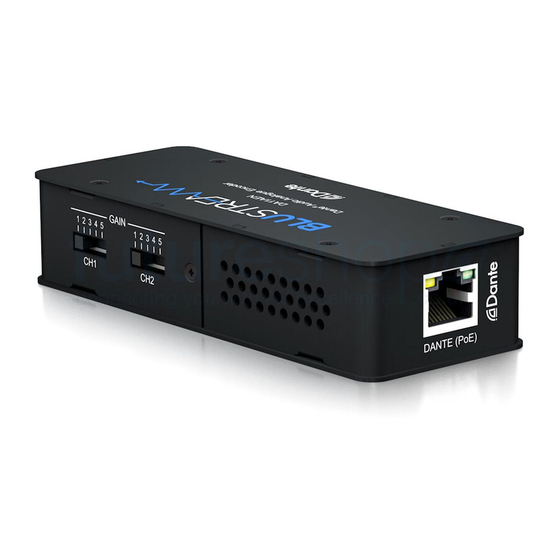

Introduction
FEATURES:
• Encodes unbalanced or balanced 2ch analogue audio to a Dante® digital signal
• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 1 802.3af PoE for powering of product from any PoE switch
• Local 12v power supply input for when network switch does not support PoE*
* PS121PH power supply sold separately
Front Panel
1
DA11AEN
Dante
Audio Analogue Encoder
®
Connections:
Dante® Audio Output - RJ45 socket connets Dante® network.
1
DC Input - Connect to +12VDC power supply (not supplied) if
2
device is not powered via a PoE switch
Audio Input - Phoenix Connector accepts balanced or
3
unbalanced 2 channel audio input.
Contact:
support@blustream.com.au
DA11AEN
Quick Reference Guide
DA11AEN
Dante
Audio Analogue Encoder
®
Our DA11AEN has been designed to encode unbalanced or balanced 2ch analogue
audio to Dante® digital signal. The DA11EN allows any non-Dante® audio source
such as mixing consoles, amplifiers, computers and Blustream Matrix products
or distribution products to be connected as a source within a Dante® network.
The DA11EN is a plug & play device that is powered using either PoE (Power Over
Ethernet) from any PoE network switch or via local 12v power supply input.The
DA11AEN also supports AES67 RTP audio transport.

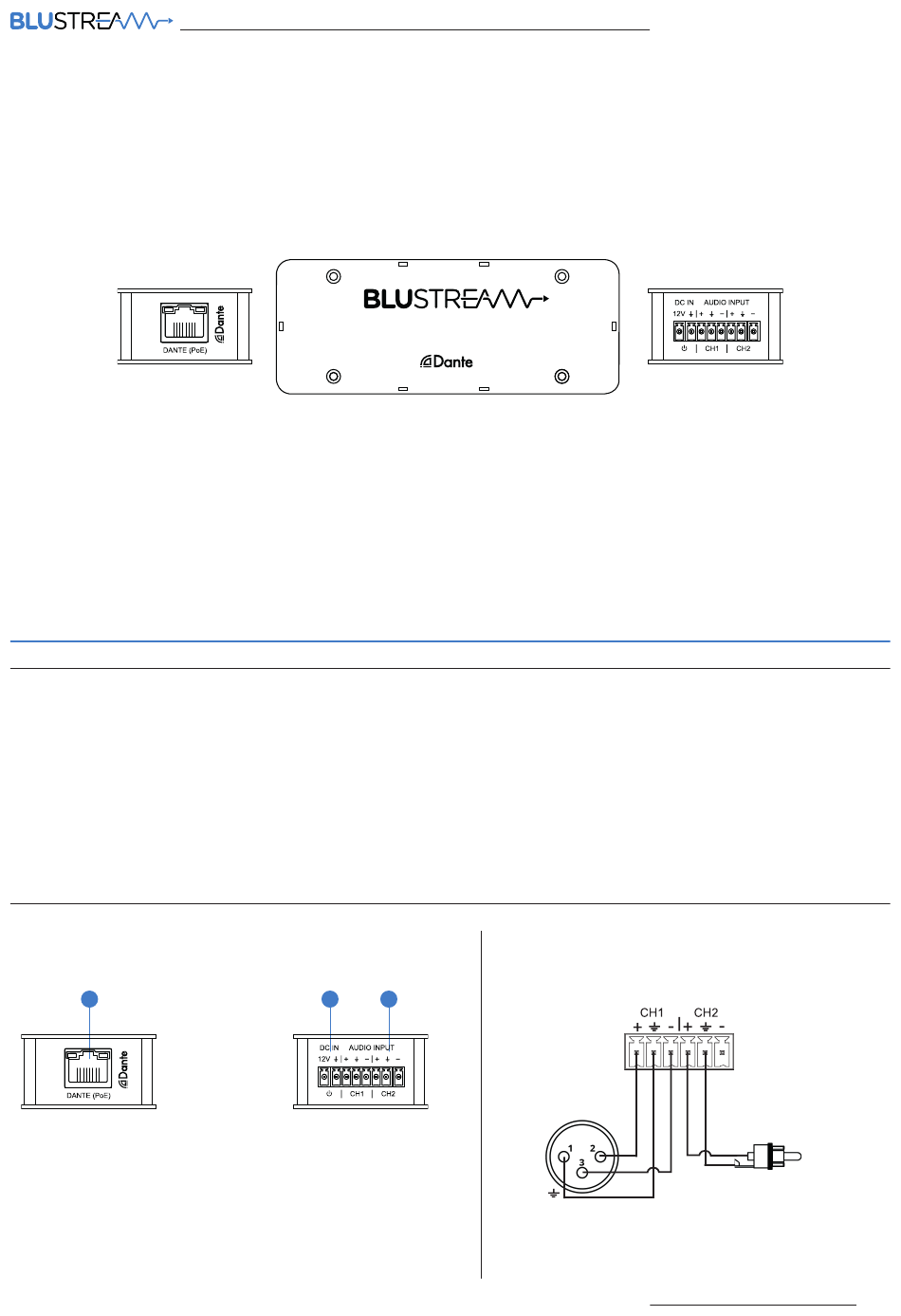

Rear Panel
2
3
DA11AEN
Dante
Audio Analogue Encoder
®
|
support@blustream-us.com
Wiring Configuration
+
-
Balanced - XLR
|
support@blustream.co.uk
DA11AEN
QUICK REFERENCE GUIDE
+
-
Unbalanced - RCA
01
Advertisement
Related Manuals for BluStream DA11AEN
Summary of Contents for BluStream DA11AEN
- Page 1 Audio Analogue Encoder ® Introduction Our DA11AEN has been designed to encode unbalanced or balanced 2ch analogue audio to Dante® digital signal. The DA11EN allows any non-Dante® audio source such as mixing consoles, amplifiers, computers and Blustream Matrix products or distribution products to be connected as a source within a Dante® network.
- Page 2 By default the DA11AEN is shipped with its network settings set to obtain an IP Address automatically. This means that if a DHCP server is present on your network, it will provide the DA11AEN with an IP Address. If no DHCP server is present then the DA11AEN will receive a default IP Address in the 169.254.xxx.xxx range.
- Page 3 Depending on the connected audio device, it may be necessary to adjust the gain or input sensitivity. The DA11AEN features a 5 pin switch on the side of the device to adjust the output gain of each channel from various settings between +18dBu to -10dBV.
- Page 4 Analogue Audio Specifications Package Contents Audio Input Connectors: 6-pin Phoenix connector (2ch balanced / un- • 1 x DA11AEN balanced analogue audio) • 1 x Quick Reference Guide Audio Output Connectors: 1 x RJ45, female (100 Mbps Dante® network) Casing Dimensions (W x H x D):...
