SP12CS
UPGRADE
Introduction
FEATURES:
• Features 1 x HDMI input that is replicated to 2 x HDMI outputs
• Supports HDMI 2.0b 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion (Smart Scale) on outputs allowing a display only capable of supporting lower video
resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K
UHD resolution on remaining video outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
• HDMI audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
• Advanced EDID management
• HDCP 2.2 compliant
Contact:
support@blustream.com.au
SP12CS
Quick Reference Guide
3 2 1 0
1 2
0
0
1
1
EDID
SMART
SCALE
INPUT
POWER
INPUT
Our SP12CS 4K HDMI 2.0b splitter distributes a single HDMI source to two
simultaneous outputs with both digital (S/PDIF) and analogue audio breakout.
The splitter supports full HDMI 2.0b and HDCP 2.2 with video resolutions up to and
including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.
|
support@blustream-us.com
OUTPUT 1
OUTPUT 2
OPTICAL

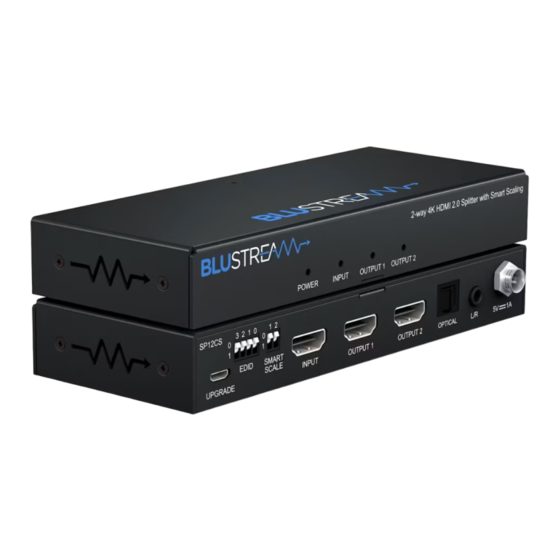

2-way 4K HDMI 2.0 Splitter with Smart Scaling
OUTPUT
1
OUTPUT
2
|
support@blustream.co.uk
SP12CS
QUICK REFERENCE GUIDE
L/R
5V
1A
01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BluStream SP12CS
Summary of Contents for BluStream SP12CS
- Page 1 OUTPUT OUTPUT Introduction Our SP12CS 4K HDMI 2.0b splitter distributes a single HDMI source to two simultaneous outputs with both digital (S/PDIF) and analogue audio breakout. The splitter supports full HDMI 2.0b and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.
- Page 2 2-way 4K HDMI 2.0 Splitter with Smart Scaling POWER INPUT OUTPUT OUTPUT Power LED - indicates if SP12CS is on or off Input LED - indicates if HDMI input is active Output LED - indicates if HDMI output is active Rear Panel Description 3 2 1 0...
- Page 3 Smart Scale Control The SP12CS has a Smart Scale feature on each output, allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0, or 1080p) to receive down-scaled 4K video content (up to 4K 60Hz 4:4:4), while still showing the maximum original 4K UHD resolution on the other output.
- Page 4 QUICK REFERENCE GUIDE Specifications Package Contents • Video Input Connectors: 1 x HDMI Type A • 1 x SP12CS • Video Output Connectors: 2 x HDMI Type A • 1 x 5V/1A DC power supply • 1 x Mounting kit •...
