Summary of Contents for BluStream HDCP11AB
- Page 1 EDID HDMI Input DC 5V HDCP11AB User Manual...
- Page 2 HDCP11AB USER MANUAL Contents Thank you for purchasing this product. Introduction For optimum performance and safety, please read these instructions care- fully before connecting, operating or Features adjusting this product. Please keep this manual for future reference. Panel Descriptions EDID Management...

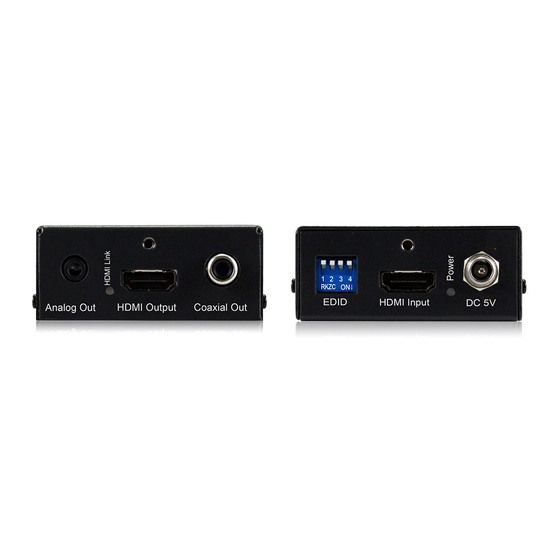

- Page 3 Introduction Our HDCP11AB is designed to resolve HDCP 2.2 incompatibility issues. The HDCP11AB converts the HDCP 2.2 input to a lower HDCP format allowing integration of HDCP 2.2 source products to non-HDCP 2.2 compatible products (displays, AV receivers, soundbars etc). The HDCP11AB also features in-built EDID management and has HDMI de-embedding to extract audio from the HDMI input onto both analogue and Coaxial digital outputs concurrently.
-
Page 4: Edid Control
Please see adjacent 4K 2.0CH table for settings. 4K 5.1CH Note: You must power-cycle the HDCP11AB after changes 4K 7.1CH have been made in order for the EDID settings to update. DVI 1280x1024... - Page 5 HDCP11AB USER MANUAL HDMI Link Power contact support@blustream.co.uk / support@blustream.com.au...
-
Page 6: Specifications
USER MANUAL Specifications Package Contents: Video Input Connectors: 1x HDMI Type A, 19-pin, female • 1x HDCP11AB Video Output Connectors: 1x HDMI Type A, 19-pin, female • 1x 5V/1A DC power supply Audio Output Connectors: 1x SPDIF Coaxial digital, 1x 3.5mm stereo •... - Page 7 www.blustream.com.au...
