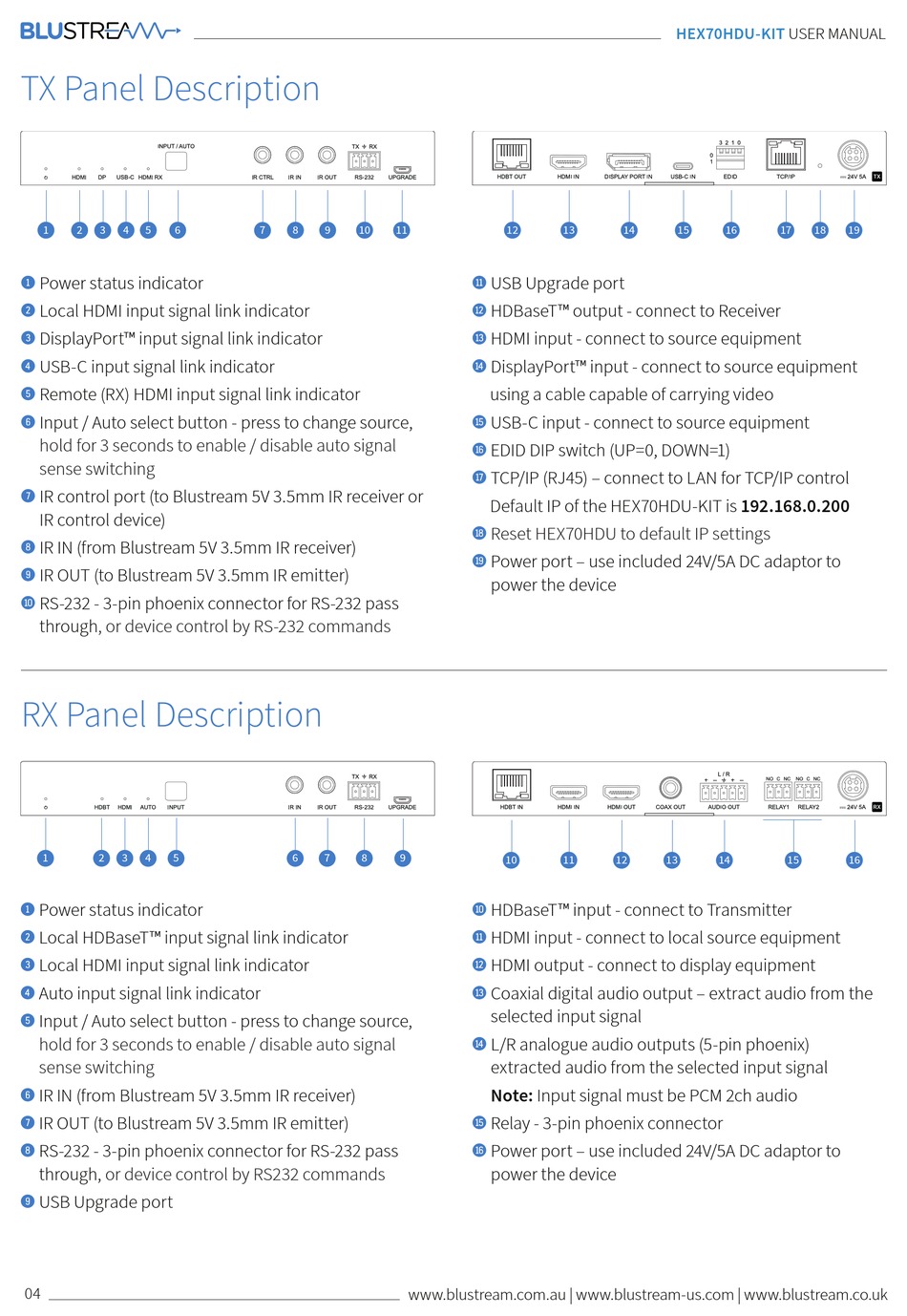

TX Panel Description

1 2 3 4 5 6
Power status indicator
1
Local HDMI input signal link indicator
2
DisplayPort™ input signal link indicator
3
USB-C input signal link indicator
4
Remote (RX) HDMI input signal link indicator
5
Input / Auto select button - press to change source,
6
hold for 3 seconds to enable / disable auto signal
sense switching
IR control port (to Blustream 5V 3.5mm IR receiver or
7
IR control device)
IR IN (from Blustream 5V 3.5mm IR receiver)
8
IR OUT (to Blustream 5V 3.5mm IR emitter)
9
RS-232 - 3-pin phoenix connector for RS-232 pass
q
through, or device control by RS-232 commands

RX Panel Description

1 2 3 4 5
Power status indicator
1
Local HDBaseT™ input signal link indicator
2
Local HDMI input signal link indicator
3
Auto input signal link indicator
4
Input / Auto select button - press to change source,
5
hold for 3 seconds to enable / disable auto signal
sense switching
IR IN (from Blustream 5V 3.5mm IR receiver)
6
IR OUT (to Blustream 5V 3.5mm IR emitter)
7
RS-232 - 3-pin phoenix connector for RS-232 pass
8
through, or device control by RS232 commands
USB Upgrade port
9
04
7 8 9 10 11
6 7 8 9
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk
12 13 14
USB Upgrade port
w
HDBaseT™ output - connect to Receiver
e
HDMI input - connect to source equipment
r
DisplayPort™ input - connect to source equipment
t
using a cable capable of carrying video
USB-C input - connect to source equipment
y
EDID DIP switch (UP=0, DOWN=1)
u
TCP/IP (RJ45) – connect to LAN for TCP/IP control
i
Default IP of the HEX70HDU-KIT is 192.168.0.200
Reset HEX70HDU to default IP settings
o
Power port – use included 24V/5A DC adaptor to
p
power the device
10 11 12
HDBaseT™ input - connect to Transmitter
q
HDMI input - connect to local source equipment
w
HDMI output - connect to display equipment
e
Coaxial digital audio output – extract audio from the
r
selected input signal
L/R analogue audio outputs (5-pin phoenix)
t
extracted audio from the selected input signal
Note: Input signal must be PCM 2ch audio
Relay - 3-pin phoenix connector
y
Power port – use included 24V/5A DC adaptor to
u
power the device
HEX70HDU-KIT USER MANUAL
