HEX70HDU-KIT USER MANUAL

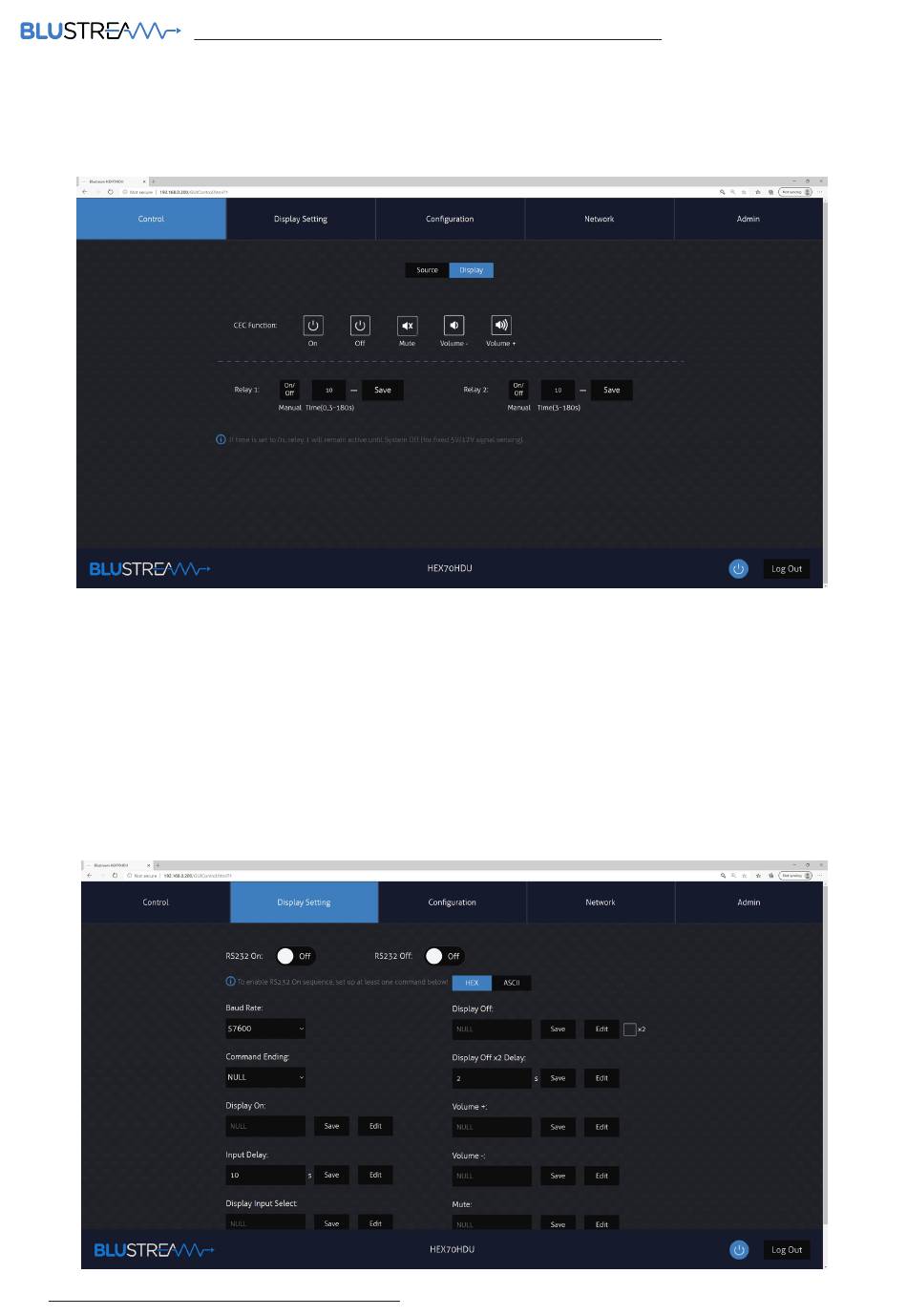

User Control Page - Display
The User Control Display Page allows you to send CEC commands out to the display device connected to the Receiver,
as well as configuring the 2 relay outputs on the Receiver, by manually opening or closing them, as well as setting the
time the relay is switched for.
Display Setting Page
The Display Setting Page allows you to remotely control a device connected via RS-232 to the Receiver. It is also
possible to automate the display on, input select and display off process via RS-232.
If RS-232 On is enabled, the Display On and Display Input Select commands are sent out of the Receiver, when the
Transmitter senses a signal.
If RS-232 Off is enabled, the User Off Command will be sent out of the Receiver, when the Transmitter stops sensing a
signal.
You can also specify the Baud Rate and Command Ending (eg: new line, carriage return) to the match the RS-232
device connected to the Receiver.
