Introduction
FEATURES:
• Features an in-built DAC (Digital to Analogue audio converter) that converts 7.1ch Dolby Audio or DTS Audio to a stereo 2ch
signal available on HDMI, optical and analogue audio outputs concurrently
• Supports multi channel audio input formats up to Dolby Atmos and DTS:X
• Features 1 x HDMI input supporting 4K UHD video (4K 60Hz 4:4:4) that is replicated to 2x HDMI outputs
• HDMI loop out will replicate the HDMI input signal up to 4K 60Hz 4:4:4 and 7.1ch Dolby Audio & DTS Audio
• HDMI output 2 features a video downconversion from 4K down to 1080p
• HDMI audio breakout to downmixed analogue L/R audio and downmixed optical digital outputs concurrently
• HDCP 2.2 compliant with advanced EDID management
Contact:
support@blustream.com.au
HD12DB-V2
Quick Reference Guide

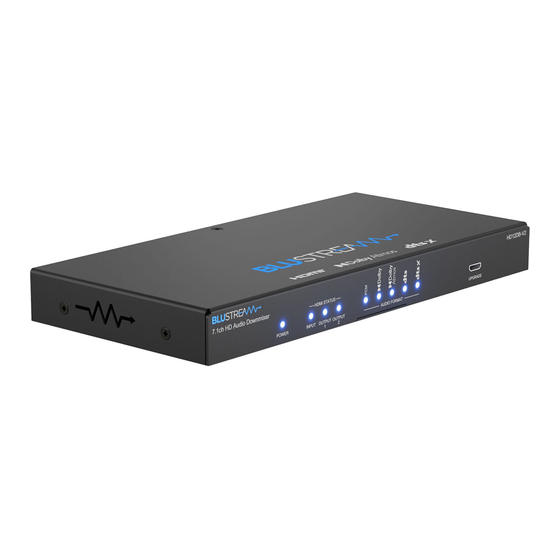

The Blustream HD12DB-V2 has been designed to convert and downmix embedded 7.1ch
Dolby Audio or DTS Audio within a HDMI signal, into a stereo 2ch signal available on HDMI,
optical and analogue audio outputs. The HD12DB-V2 features a HDMI loop out to pass the
original video and multi-channel embedded audio signal to compatible equipment, with
a second HDMI output featuring video down-conversion of 4K 60Hz 4:4:4 video down to
1080p. This provides the perfect cost effective solution for ensuring that 4K UHD video and
multi-channel audio can be distributed around a multi-room system where there are a
mixture of 2ch and 7.1ch zones with multiple output resolution requirements.
|
