BluStream DA22XLR-WP-US Quick Reference Manual

DA22XLR-WP-US

Introduction

FEATURES:

• Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputs
• Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
• Converts 2 x Dante® audio channels to balanced / unbalanced audio outputs
• Switchable 48V Phantom power for each MIC XLR input
• Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
• Adjustable line gain from +18 dBu to -10 dBV for each XLR output
• Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 12V DC adapter (supplied) for when network switch does not support PoE
• Magnetic faceplate surround and US Decora style backbox compatibility
Contact:
support@blustream.com.au
Quick Reference Guide

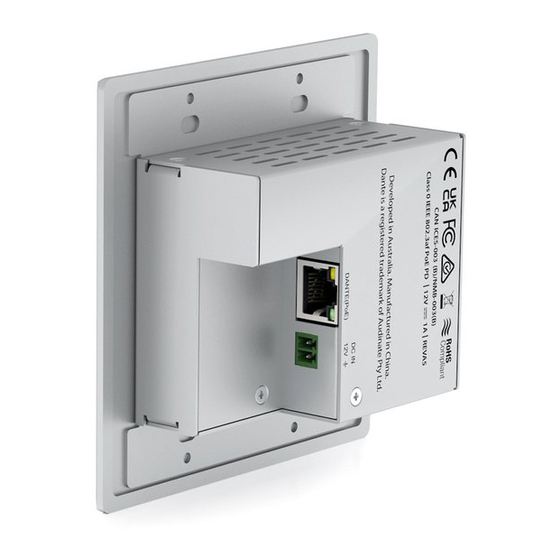

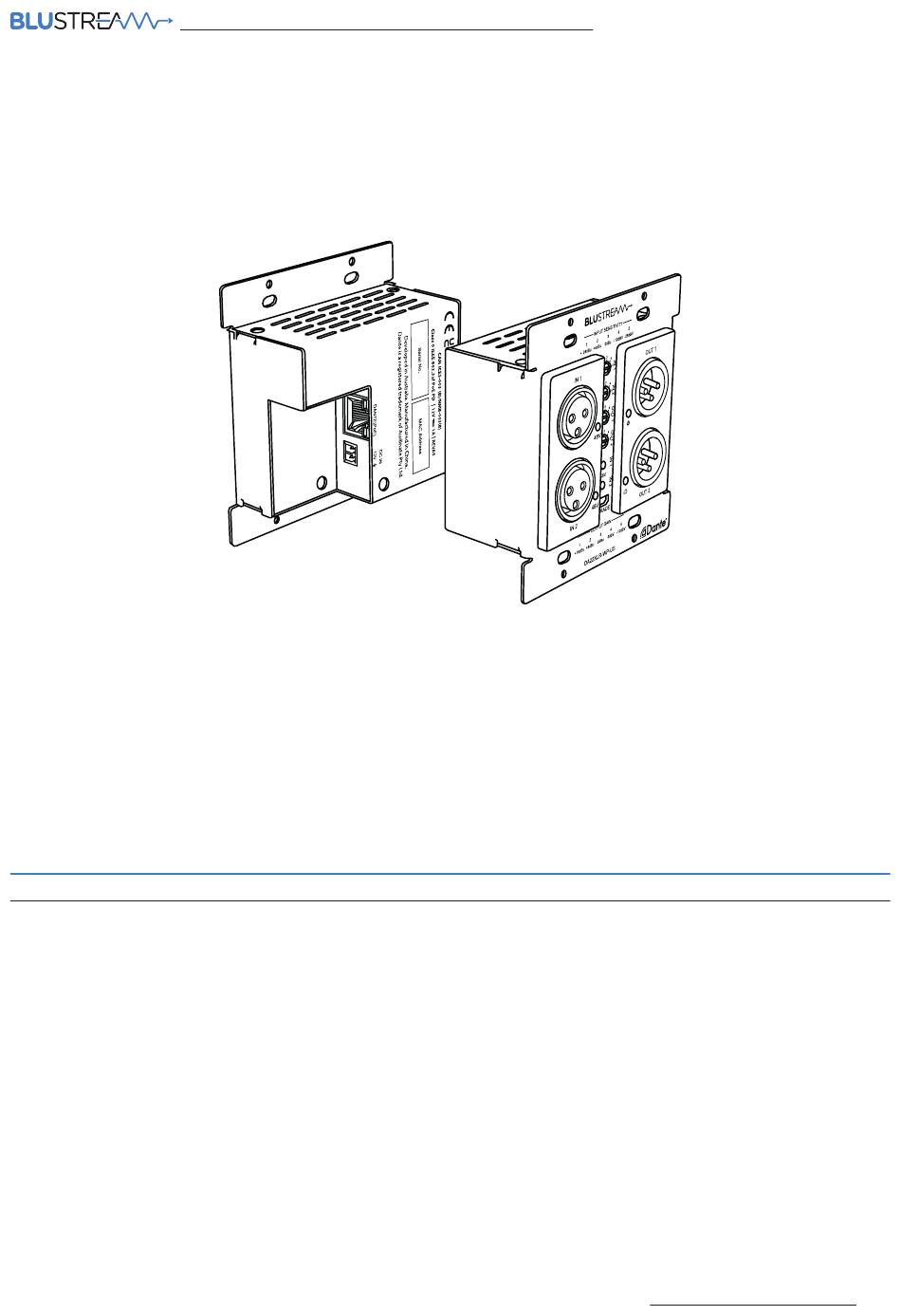

The DA22XLR-WP-US is a multi-input / output wall plate to convert analog audio
within a digital Dante® networked audio system. The DA22XLR-WP-US converts
2 input channels of balanced / unbalanced / MIC audio with switchable 48V
Phantom power to Dante® digital audio, and 2 channels of Dante® audio to 2
output channels of balanced / unbalanced audio.
The DA22XLR-WP-US is a plug & play device that is powered using PoE (Power over
Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport
and magnetic faceplate design allows installation into most double-gang US
junction boxes. The DA22XLR-WP-US is the ideal BYOD interface to a Dante® audio
system.
|
support@blustream-us.com
DA22XLR-WP-US
|
support@blustream.co.uk
QUICK REFERENCE GUIDE
01
