BluStream HEX11WP-TX Quick Reference Manual

Introduction

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

• Extends HDMI at 1080p up to a distance of 70m

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD

Master Audio transmission

• Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products

• Bi-directional RS-232 pass through

• Supports IR pass-through to HDBaseT™ device

• Compatible with all Blustream HDBaseT™ Receiver / Matrix products*

• Magnetic faceplate surround allowing both UK & EU backbox compatibility

• HDCP 2.2 support

*Technical performance is subject to the features supported on the connected HDBaseT™ device

contact:

support@blustream.co.uk / support@blustream.com.au

HEX11WP-TX

Quick Reference Guide

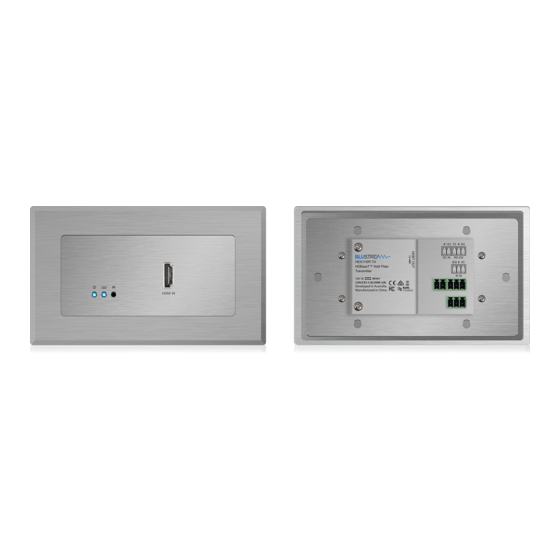

Our HEX11WP HDMI wall plate HDBaseT™ Transmitter is a 4K solution that extends

HDMI up to 70m at 1080p (40m at 4K 60Hz 4:2:0). The HEX11WP-TX has been

designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions, be

installed in both UK and European backboxes and can be powered locally or from

compatible Blustream HDBaseT™ products.

HEX11WP-TX

QUICK REFERENCE GUIDE

Table of Contents

Do you have a question about the HEX11WP-TX and is the answer not in the manual?

Page 1 Our HEX11WP HDMI wall plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m at 4K 60Hz 4:2:0). The HEX11WP-TX has been designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions, be installed in both UK and European backboxes and can be powered locally or from compatible Blustream HDBaseT™...

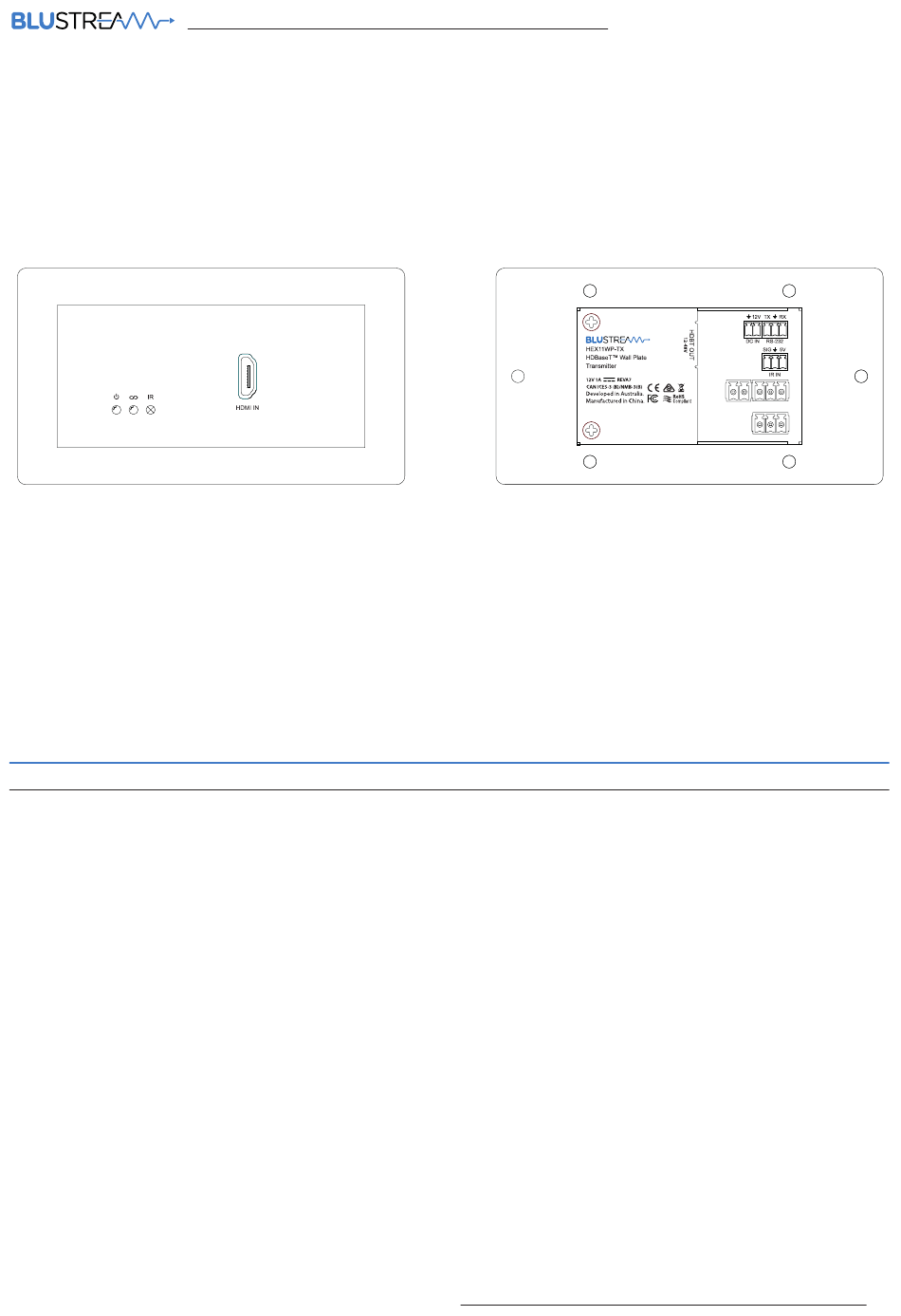

Page 2 HDMI input - Type A HDMI port to connect HDMI source Rear Panel Description HDBaseT™ output - RJ45 HDBaseT™ port to connect to the HDBaseT™ input port of the compatible Blustream HDBaseT™ Receiver / Matrix device 12V DC input - 2-pin phoenix connector to connect to Blustream 12V power supply (supplied) IR Receiver Input - 3-pin phoenix connector to connect to Blustream IR Receiver (not supplied) RS-232 - 3-pin phoenix connector for RS-232 passthrough to / from compatible Blustream HDBaseT™...
Page 3 HEX11WP-TX QUICK REFERENCE GUIDE contact: support@blustream.co.uk / support@blustream.com.au...
Page 4 12V/1A DC NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate. Package Contents HEX11WP-TX • 1 x HEX11WP-TX • 1 x 12V/1A DC Power Supply • 1 x Magnetic Faceplate • 1 x Quick Reference Guide Maintenance Clean this unit with a soft, dry cloth.
