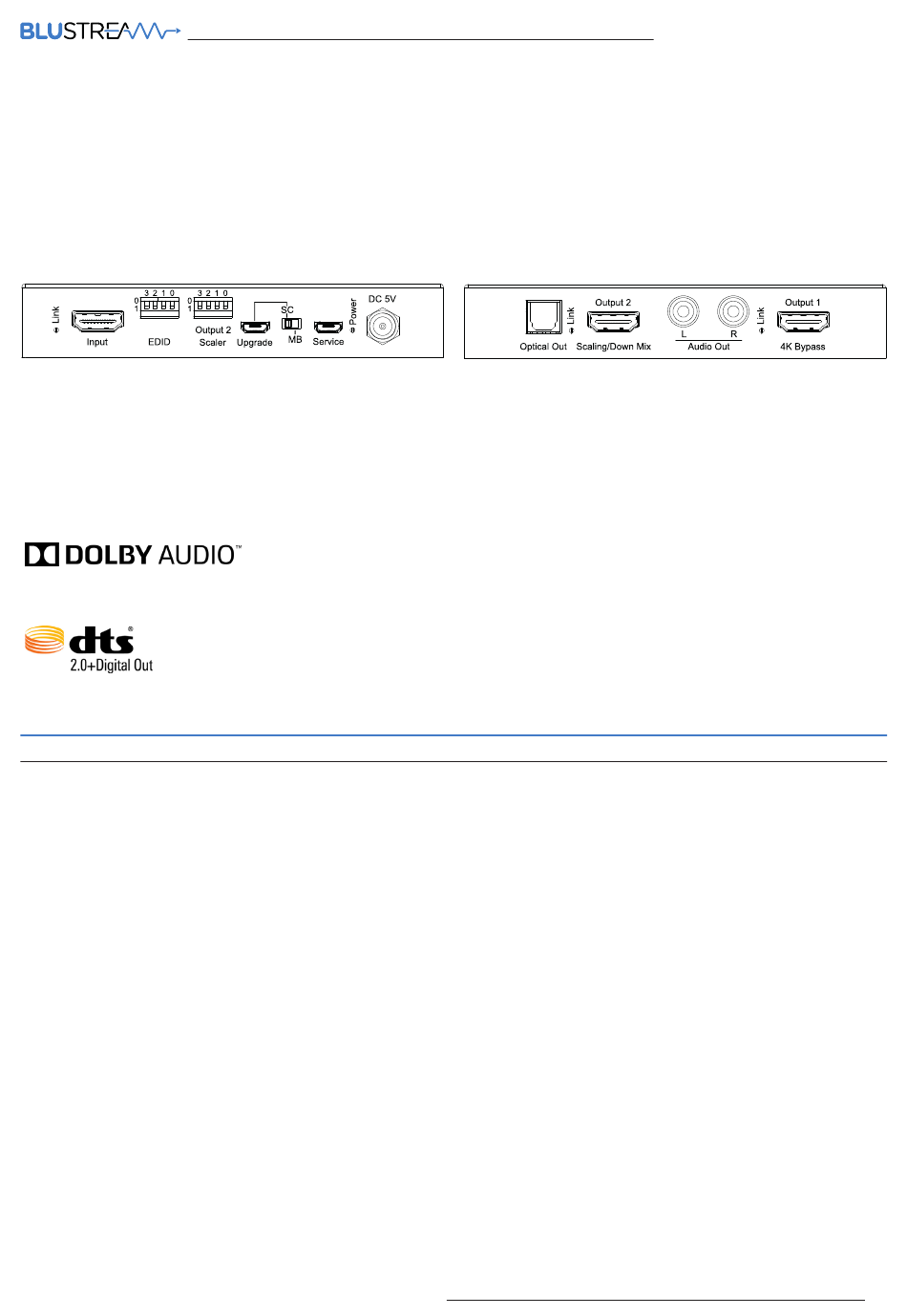

BluStream HD12DB Quick Reference Manual

Introduction
FEATURES:
• Features an in-built DAC (Digital to Analogue audio Converter) that converts 5.1ch Dolby Audio or DTS Audio to a
stereo 2ch signal available on HDMI, optical and analogue audio outputs concurrently
• Supports the following audio input formats:
• Features 1x HDMI input supporting 4K UHD video (4K 60Hz 4:4:4) that is replicated to 2x HDMI outputs
• HDMI loop out will replicate the HDMI input signal up to 4K 60Hz 4:4:4 and 5.1ch Dolby Audio & DTS Audio
• HDMI output 1 features a video scaler allowing the resolution to be set to the following formats:
- 3840x2160@60Hz
- 3840x2160@50Hz
- 3840x2160@30Hz
- 3840x2160@25Hz
- 1920x1080@60Hz
- 1920x1080@50Hz
- 1280x720@60Hz
- 1280x720@50Hz
• HDMI audio breakout to downmixed analogue L/R audio and downmixed optical digital outputs concurrently
• HDCP 2.2 compliant with advanced EDID management
*Note: this product does not support decoding of DTS CD bitstreams. Playback of this format may produce undesirable noise.
contact support@blustream.co.uk / support@blustream.com.au
HD12DB
Quick Reference Guide

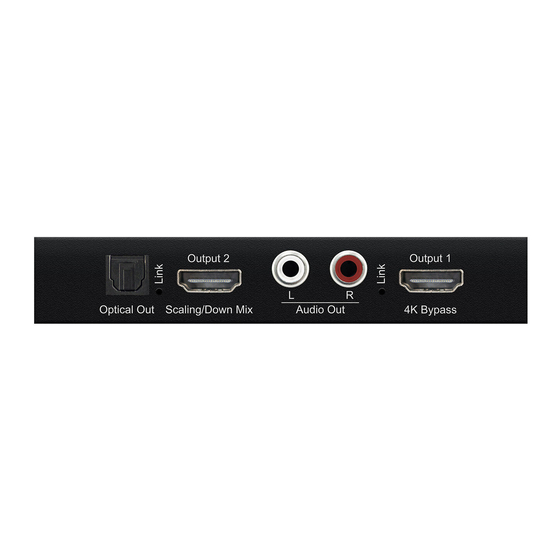

The Blustream HD12DB has been designed to convert and downmix embedded
5.1ch Dolby Audio or DTS Audio within a HDMI signal into a stereo 2ch signal
available on HDMI, optical and analogue audio outputs. The HD12DB features
a HDMI loop out to pass the original video and multi-channel embedded audio
signal to compatible equipment, with a second HDMI output featuring video
scaling of up to 4K 60Hz 4:4:4 video to various lower resolution video formats.
This provides the perfect cost effective solution for ensuring that 4K UHD video
and multi-channel audio can be distributed around a multi-room system where
there are a mixture of 2ch and 5.1ch zones with multiple output resolution
requirements.
Dolby 5.1, DTS-ES 6.1, DD+5.1, DD+2.0, PCM 5.1, PCM
- 4096x2160@60Hz
- 4096x2160@50Hz
- 4096x2160@30Hz
- 4096x2160@25Hz
- 1920x1200@60Hz
- 1680x1050@60Hz
- 1024x768@60Hz
HD12DB QUICK REFERENCE GUIDE
2.0*
01
