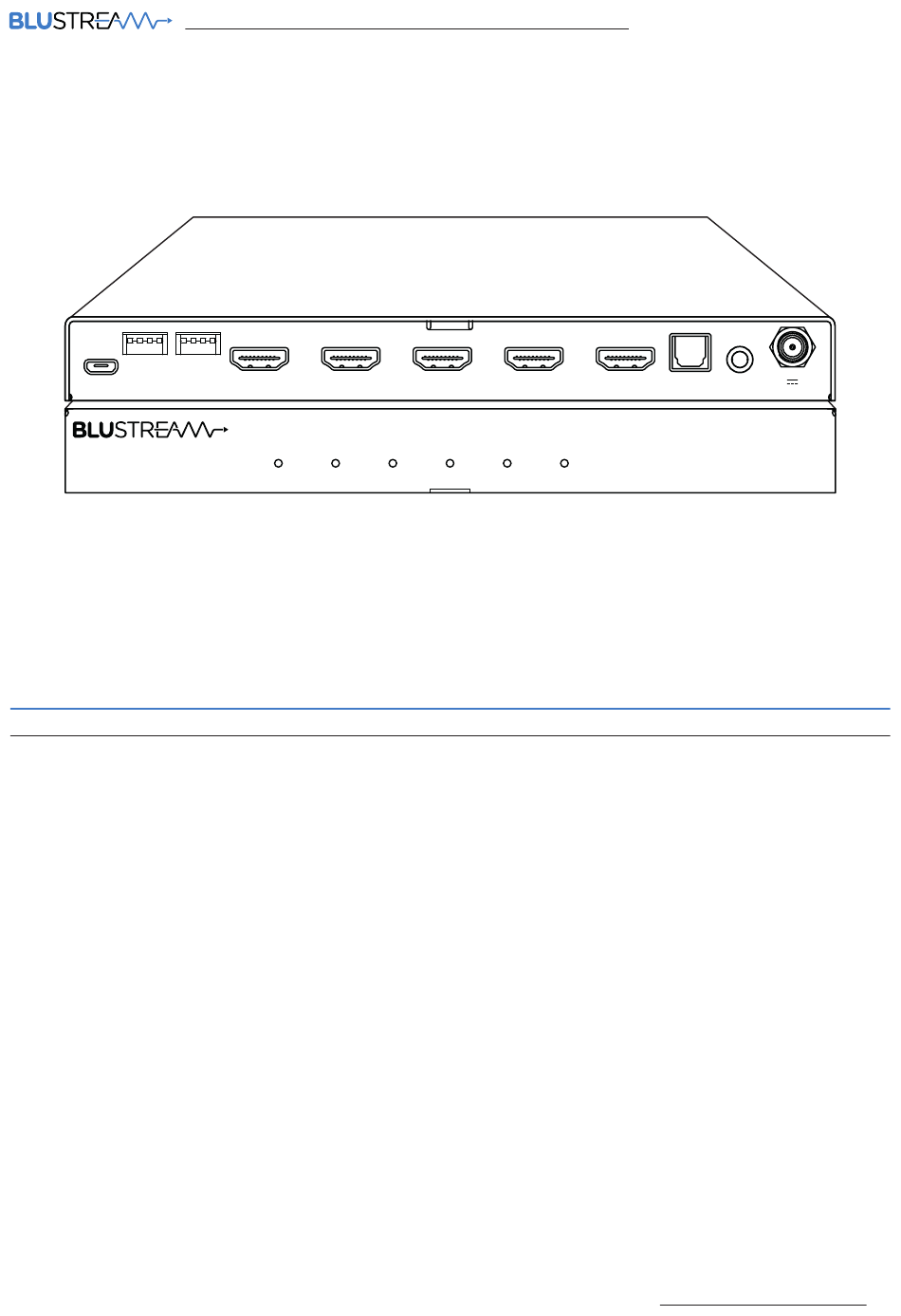

Introduction
FEATURES:
• Features 1 x HDMI input that is replicated to 4 x HDMI outputs
• Supports HDMI 2.0b 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion (Smart Scale) on outputs allowing a display only capable of supporting lower video
resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K
UHD resolution on remaining video outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
• HDMI audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
• Advanced EDID management
• HDCP 2.2 compliant
Contact:
support@blustream.com.au
SP14CS
Quick Reference Guide
1 2
3 4
SMART
SCALE
INPUT
OUTPUT 1
POWER
INPUT
Our SP14CS 4K HDMI 2.0b splitter distributes a single HDMI source to four
simultaneous outputs with both digital (S/PDIF) and analogue audio breakout.
The splitter supports full HDMI 2.0b and HDCP 2.2 with video resolutions up to and
including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.
|
support@blustream-us.com
OUTPUT 2
OUTPUT 3
OUTPUT 1
OUTPUT 2
OUTPUT 3
|
support@blustream.co.uk
SP14CS
OUTPUT 4
OPTICAL

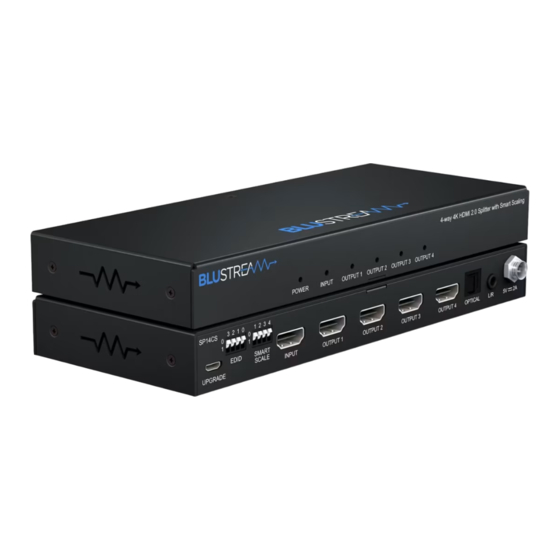

4-way 4K HDMI 2.0 Splitter with Smart Scaling
OUTPUT 4
QUICK REFERENCE GUIDE
L/R
5V
2A
01
Advertisement
Table of Contents
Related Manuals for BluStream SP14CS
Summary of Contents for BluStream SP14CS
- Page 1 OUTPUT 4 Introduction Our SP14CS 4K HDMI 2.0b splitter distributes a single HDMI source to four simultaneous outputs with both digital (S/PDIF) and analogue audio breakout. The splitter supports full HDMI 2.0b and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.
- Page 2 OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 Power LED - indicates if SP14CS is on or off Input LED - indicates if HDMI input is active Output LED - indicates if HDMI output is active Rear Panel Description 3 2 1 0...
- Page 3 [DIP]=1110: Software Control EDID (use API to adjust) [DIP]=1111: EDID Bypass Smart Scale Control The SP14CS has a Smart Scale feature on each output, allowing a display only capable of supporting lower video POWER INPUT OUTPUT 1 OUTPUT resolutions (4K 60Hz 4:2:0, or 1080p) to receive down-scaled 4K video content (up to 4K 60Hz 4:4:4), while still showing the maximum original 4K UHD resolution on other outputs.
- Page 4 SP14CS QUICK REFERENCE GUIDE Specifications Package Contents • 1 x SP14CS • Video Input Connectors: 1 x HDMI Type A, 19-pin, female • 1 x 5V/2A DC power supply • Video Output Connectors: 4 x HDMI Type A, 19-pin, female •...
