Introduction
FEATURES:
•
Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
•
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
•
Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
•
Output 1 features simultaneous HDMI and HDBaseT™ output
•
Video down-conversion on HDBaseT™ output 1 allowing a display only capable of supporting lower video resolutions (4K
60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on the
remaining video outputs
•
Supports 4K 60Hz 4:4:4 UHD video up to 40m
•
Extends HDMI 1080p video up to 70m
•
HDMI re-clocking on the HEX70CS-RX HDBaseT™ receiver to help solve HDMI HDCP, compatibility and handshaking issues
•
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
•
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio
transmission
•
HDMI audio breakout to associated analogue L/R audio outputs with pre-amp line level control
•
Analogue audio input can be embedded onto any HDMI input
•
Web interface module for control and configuration of matrix
•
Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
•
Supplied with Blustream 5V IR receivers and emitters
•
Control via front panel, IR, RS-232, TCP/IP, or iOS / Android App
•
Supports PoC (Power over Cable) to power supplied Blustream HDBaseT™ receivers
•
1U design for 19" rack mount integration - mounting kit included
•
Advanced EDID management
•
HDCP 2.2 compliant
01

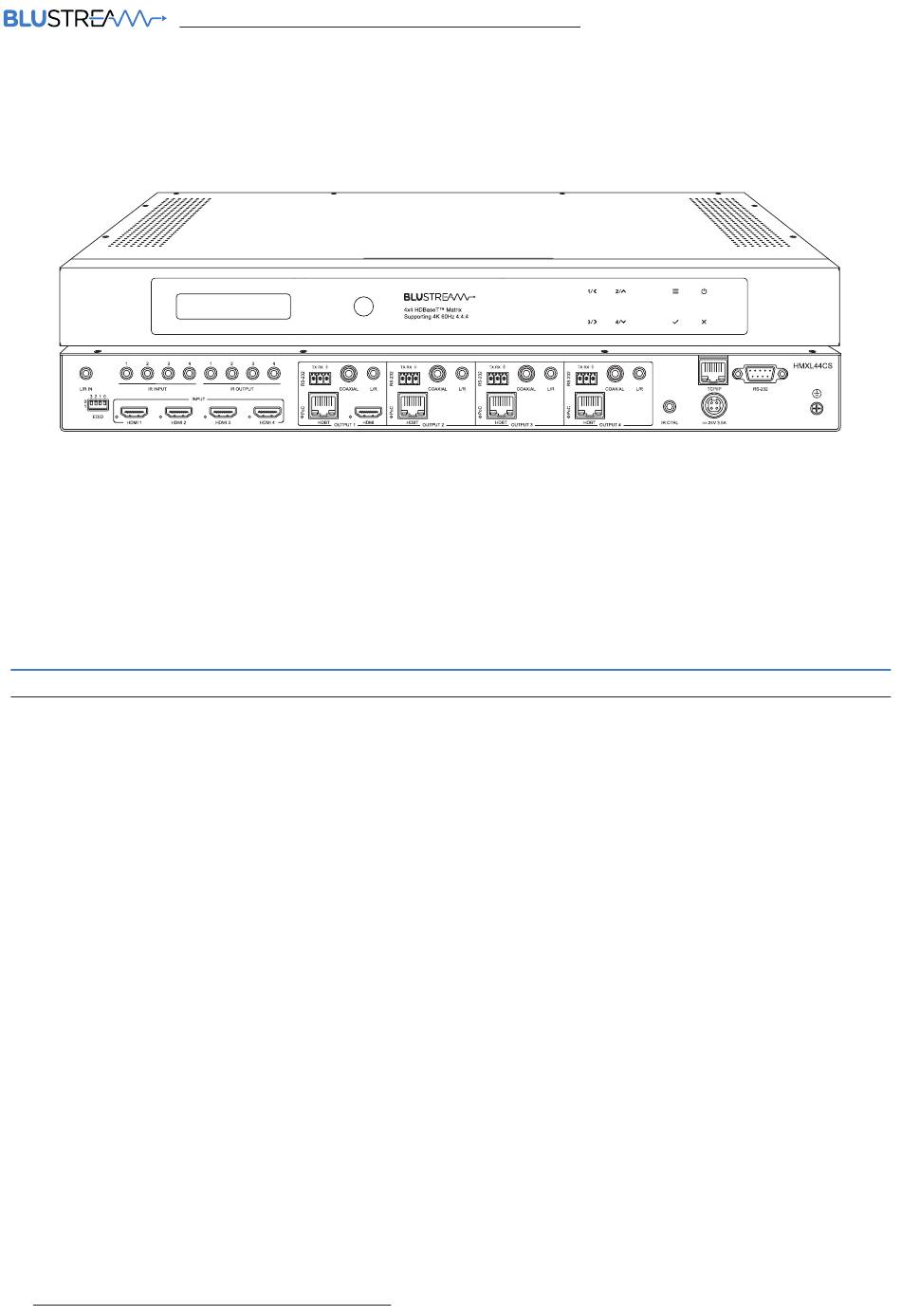

HMXL44CS-KIT
Quick Reference Guide

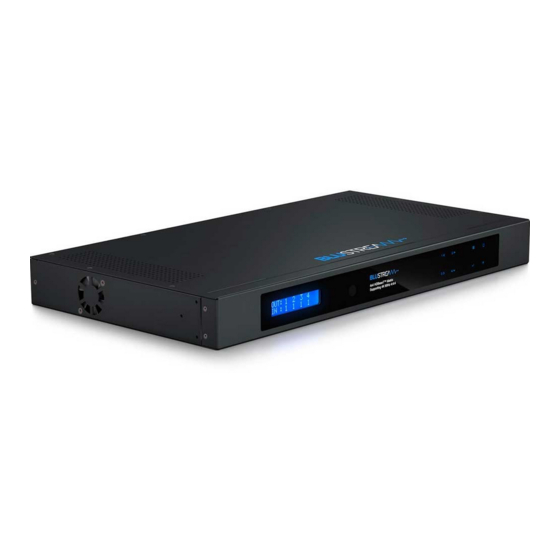

Our Essential 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the
custom installation market. The HMXL44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix
package utilising HDBaseT™ CSC technology to deliver HDMI, bi-directional IR, RS-232
and PoC (Power over Cable) up to lengths of 70m over a single CAT cable. The matrix also
provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video
down conversion on HDBaseT™ output 1, audio breakout with pre-amp variable line-level
control, and a web browser interface module for control and configuration of the matrix. The
HMXL44CS-KIT is supplied with 4 x HEX70CS-RX HDBaseT™ receivers.
www.blustream.com.au
HMXL44CS-KIT
QUICK REFERENCE GUIDE
|
www.blustream-us.com
|
www.blustream.co.uk
Advertisement
Related Manuals for BluStream HMXL44CS-KIT
Summary of Contents for BluStream HMXL44CS-KIT
- Page 1 Introduction Our Essential 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The HMXL44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix package utilising HDBaseT™ CSC technology to deliver HDMI, bi-directional IR, RS-232 and PoC (Power over Cable) up to lengths of 70m over a single CAT cable. The matrix also provides advanced features including simultaneous HDBaseT™...
- Page 2 HMXL44CS-KIT QUICK REFERENCE GUIDE Panel Descriptions Front Panel LCD Display – Shows the status of Menu Button - Press to enter set-up Enter Button – Press to select or menu confirm command / selection input / output selection, EDID etc Power button –...
- Page 3 QUICK REFERENCE GUIDE Understanding The Matrix / Receiver Status Lights The Blustream matrix and HDBaseT™ extender solutions include status LED indicators on both the matrix and receiver products to show all connections are active and to help diagnose possible problems.
- Page 4 Web GUI Control The HMXL44CS-KIT features an in-built Web GUI which can be used for control and configuration of the matrix. By default the matrix is set to DHCP, however if a DHCP server (eg: network router) is not installed the matrix IP address will revert to below...
