Replacing the FlexPay EPP

The Advantage Series and Encore 300 Dispensers

To replace the FlexPay EPP in The Advantage Series and Encore 300 dispensers, proceed as
follows:
Inform the Manager that the power will be removed and remove all power supplied to the unit
1
at the breaker located in the building. Block off the unit from customers.
Failure to turn off the unit during the installation of the kit may cause injury or bodily harm from
electrical shock. Ensure that all power to the unit is switched off before opening the door to the
unit and during kit installation.
2 Cone off the dispenser to traffic.
Open the Payment door.
3
Remove all cables from the rear of the FlexPay EPP.
4
Remove the screws that hold the FlexPay EPP in place.
5

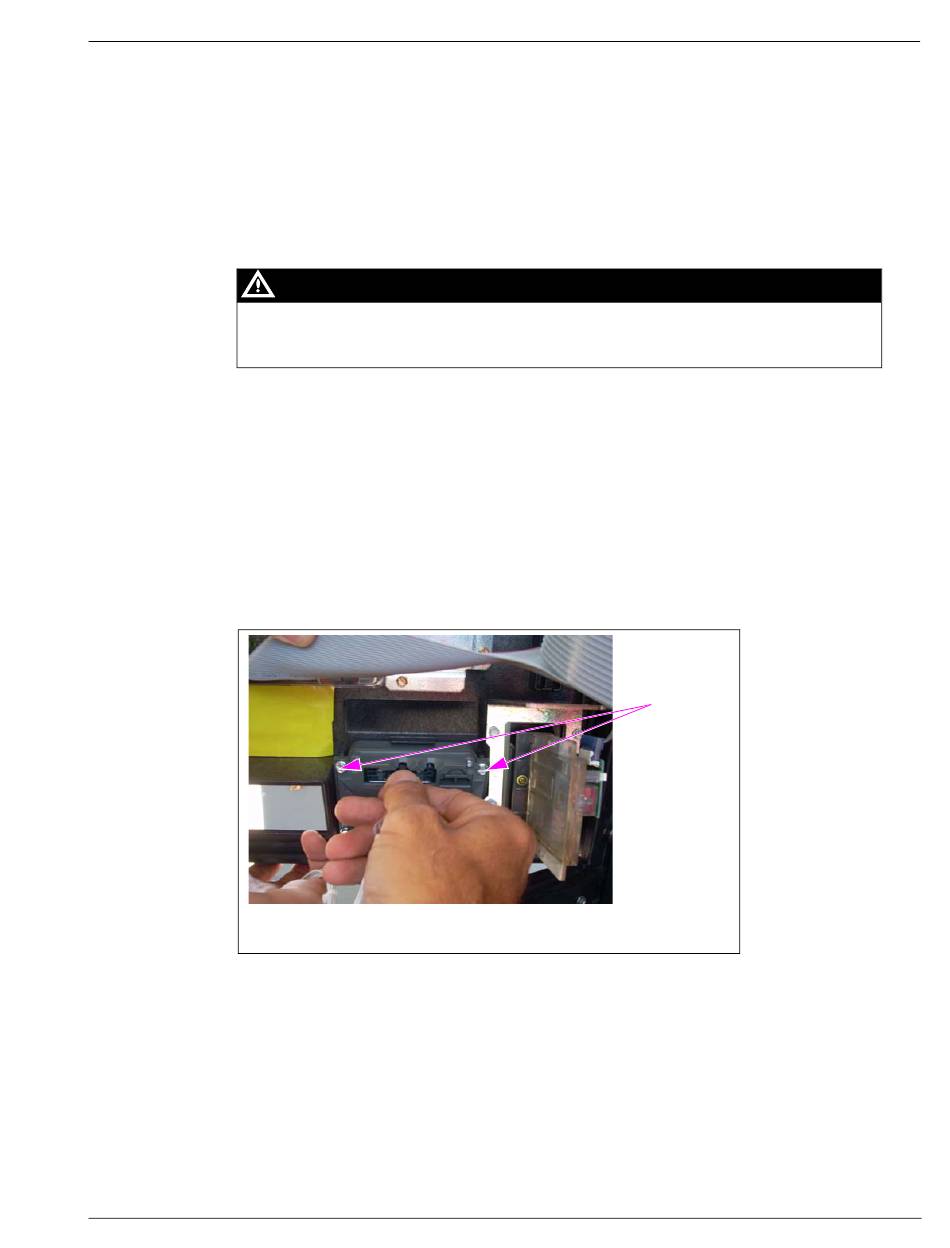

Figure 3-56: Screws Holding the FlexPay EPP
Note: The Advantage Series is shown in the figure.
Remove the FlexPay EPP.
6
Mount the new FlexPay EPP on the unit using the screws removed in step 5.
7
Reconnect the cables removed in step 4.
8
Install jumpers on coldstart pins on the CRIND Logic Board and perform a coldstart.
9
Enter the Diagnostic Mode using the Diagnostic Card. For instructions, refer to
10
Diagnostic Mode Using the CRIND Diagnostic Card"
