Using the FlexPay EPP Mapping Tool
Select the required name for the key from the list of options under the "Mapping to" field.
12
Else, enter the name of the key in the "Key Caption" field, if the name is different from that of
the key it will be mapped with. Also, change the font and color of the key, if required.
Note: This information can be gathered from the new keypad.

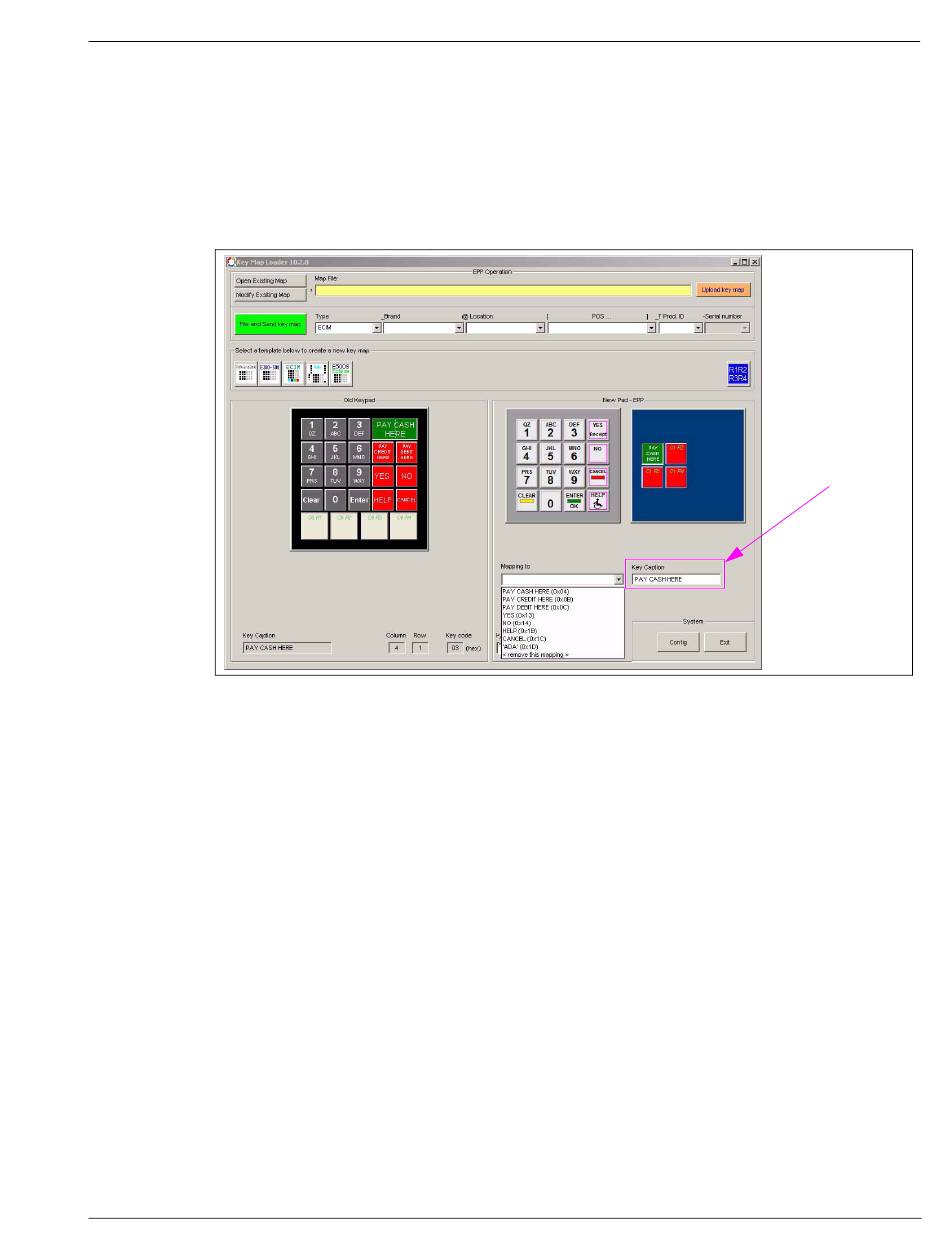

Figure 3-43: Entering the New Key Caption
Notes: 1) The "Aux Column" and "Row" fields indicate the position of the selected key on the
Select one of the keys that has a box around the text.
13
Note: The box around the text indicates that the key has not been mapped.
MDE-4784D FlexPay™ Encrypting PIN Pad Start-up and Service Manual · December 2011
Auxiliary Function Keypad.
2) Select the R1...R4 button to change the key layout on the new FlexPay EPP.
3) At any time if the text of a key caption is erased, the corresponding mapping relation
will be deleted automatically.
Start-up and Service
Key Caption Field
