Using the FlexPay EPP Mapping Tool
Repeat steps
10
displayed as shown in

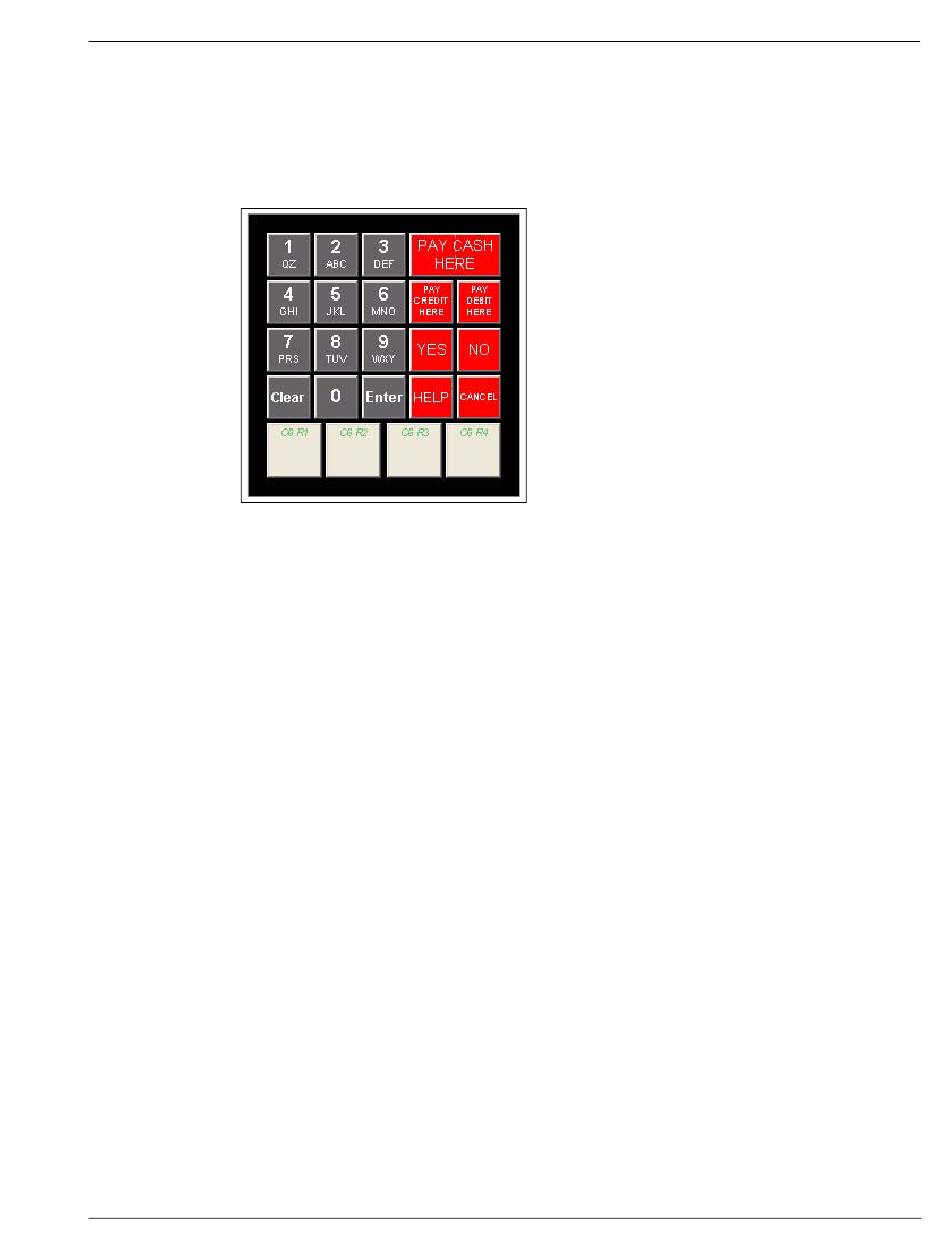

Figure 3-40: Updated Keypad
Note: The ADA key displays the following features:
MDE-4784D FlexPay™ Encrypting PIN Pad Start-up and Service Manual · December 2011
6 (on page 40) to 9
Figure 3-40.
• When ADA is entered in the "Key Caption" field under "Old Keypad", the HELP
button will split to display Help/ADA. The ADA function will automatically be
assigned to the ADA portion of the Help/ADA button. Only the Help portion of the
Help/ADA button will allow a selection for mapping.
• Any of the buttons/double-space buttons under "New Pad - EPP" can be mapped to
the ADA function.
• If the ADA button has not been created under the "Old Keypad", the ADA function
will appear as "'ADA'0x1D" under the "Mapping to" list of options. Any of the
buttons/double-space buttons under "New Pad - EPP" can be mapped to the ADA
function using this default value.
(on page 42) to create the required keys. The keypad is
