Start-up and Service
14 Select the list of options in the "Mapping to" field to view the old keys that are available.

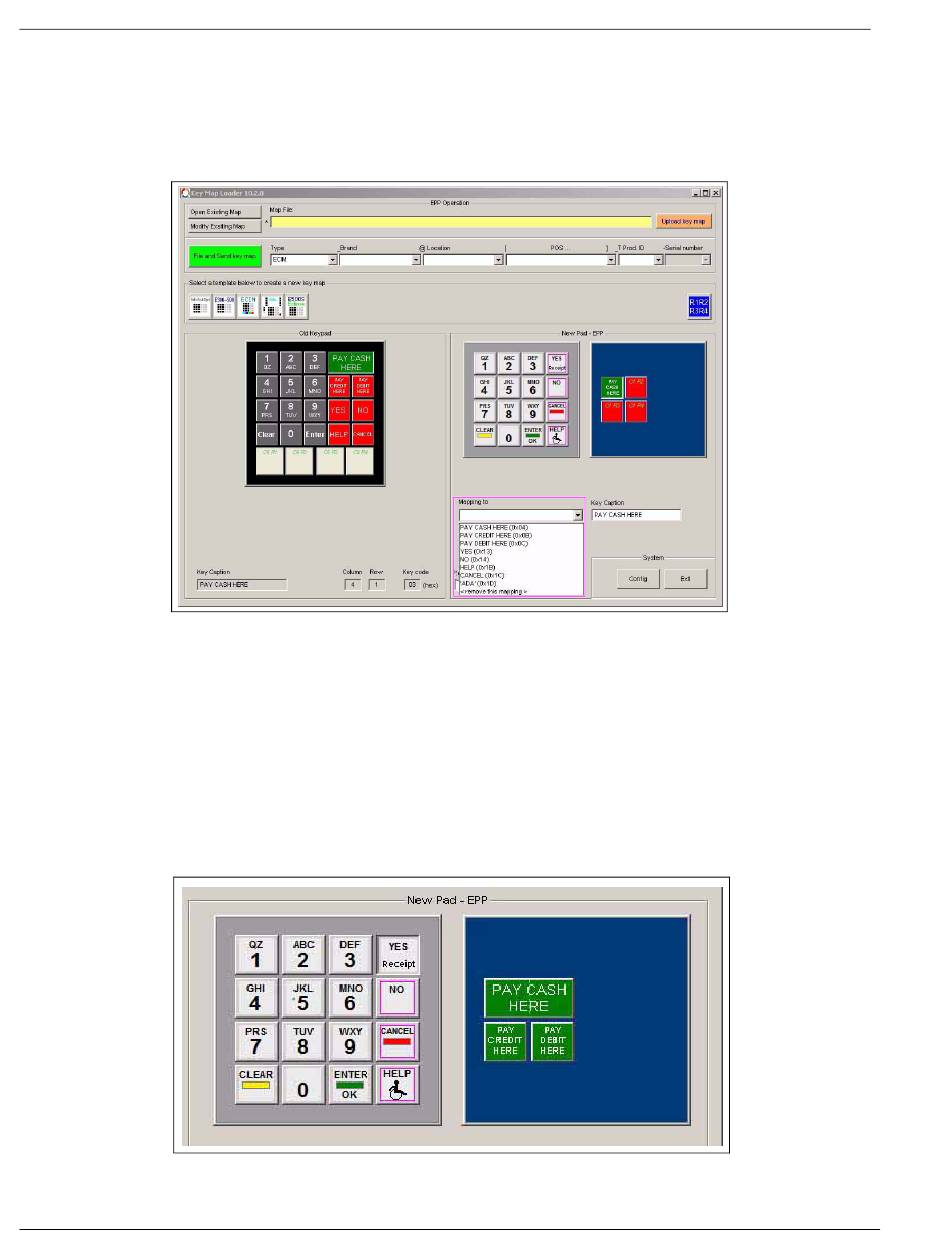

Figure 3-44: List of Old Mapping Keys
Select the required old key to which the new key must be mapped.
15
Note: If there is no old key that can be mapped, enter the required key code in the "Key code"
16 Repeat steps
keypad will be displayed as shown in
Figure 3-45: Updated New Keypad
Page 46
field. If the old key has been mapped with another new key, it will not appear in the list
of options in the "Mapping to" field.
11 (on page 44) to
MDE-4784D FlexPay™ Encrypting PIN Pad Start-up and Service Manual · December 2011
15 to map the required new keys with the old keys. The
Figure 3-45.
Using the FlexPay EPP Mapping Tool
