Replacing the FlexPay EPP

Replacing the FlexPay EPP
CAUTION
Ensure that you install a new Card Reader Gasket, if you remove and reinstall the
Card Reader when replacing the FlexPay EPP. Else, water may leak around the
old gasket.

Encore 500 Series and Eclipse Dispensers

Before you begin, read and understand all safety information found in MDE-3804
Encore/Eclipse Start-Up/Service Manual.
To replace the FlexPay EPP in Encore 500 Series and Eclipse dispensers, proceed as follows:
Inform the Manager that the power will be removed and remove all power supplied to the unit
1
at the breaker located in the building. Block off the unit from customers.
Failure to turn off the unit during the installation of the kit may cause injury or bodily harm from
electrical shock. Ensure that all power to the unit is switched off before opening the door to the
unit and during kit installation.
2 Cone off the dispenser to traffic.
3 Open the main dispenser door.
Remove all cables from the rear of the FlexPay EPP.
4
Remove the screws that hold the FlexPay EPP in place.
5

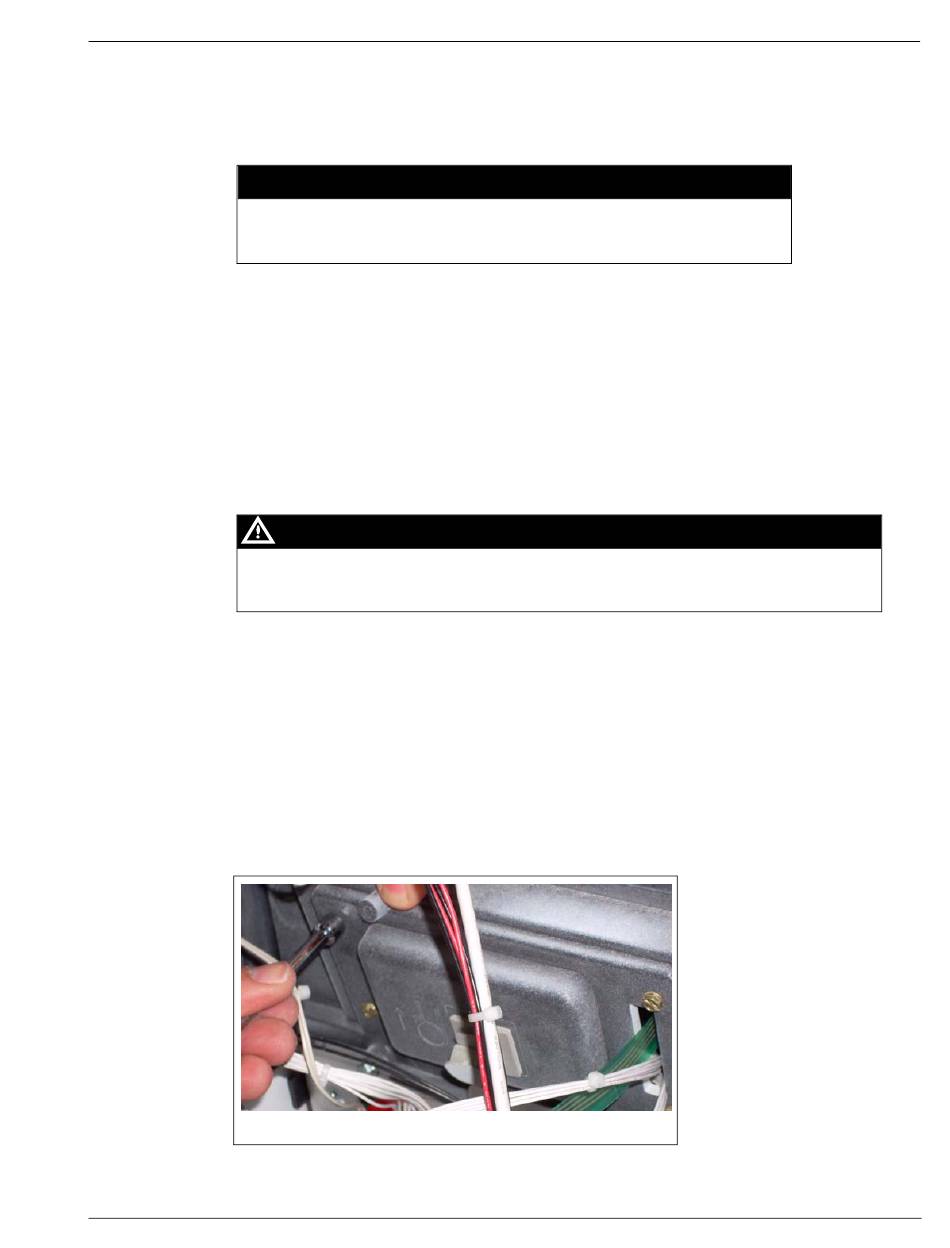

Figure 3-55: Removing the Screws
Note: Encore 500S is shown in the figure.
MDE-4784D FlexPay™ Encrypting PIN Pad Start-up and Service Manual · December 2011
WARNING
Start-up and Service
Page 57
