Setting Up the Clone Function in a Key Map

To clone the key map for a FlexPay EPP, proceed as follows:
Connect the laptop that contains the FlexPay EPP Mapping Tool application to a FlexPay EPP
1
on the dispenser using the programming connector. Refer to
FlexPay EPP"
Open the FlexPay EPP Mapping Tool application.
2
3 Select Upload key map. If there is an existing map in the aut\ directory, the map appears on
the screen. If there is no map existing under the aut\ directory that matches the FlexPay EPP
map, the Loading Key Map from EPP window appears as shown in

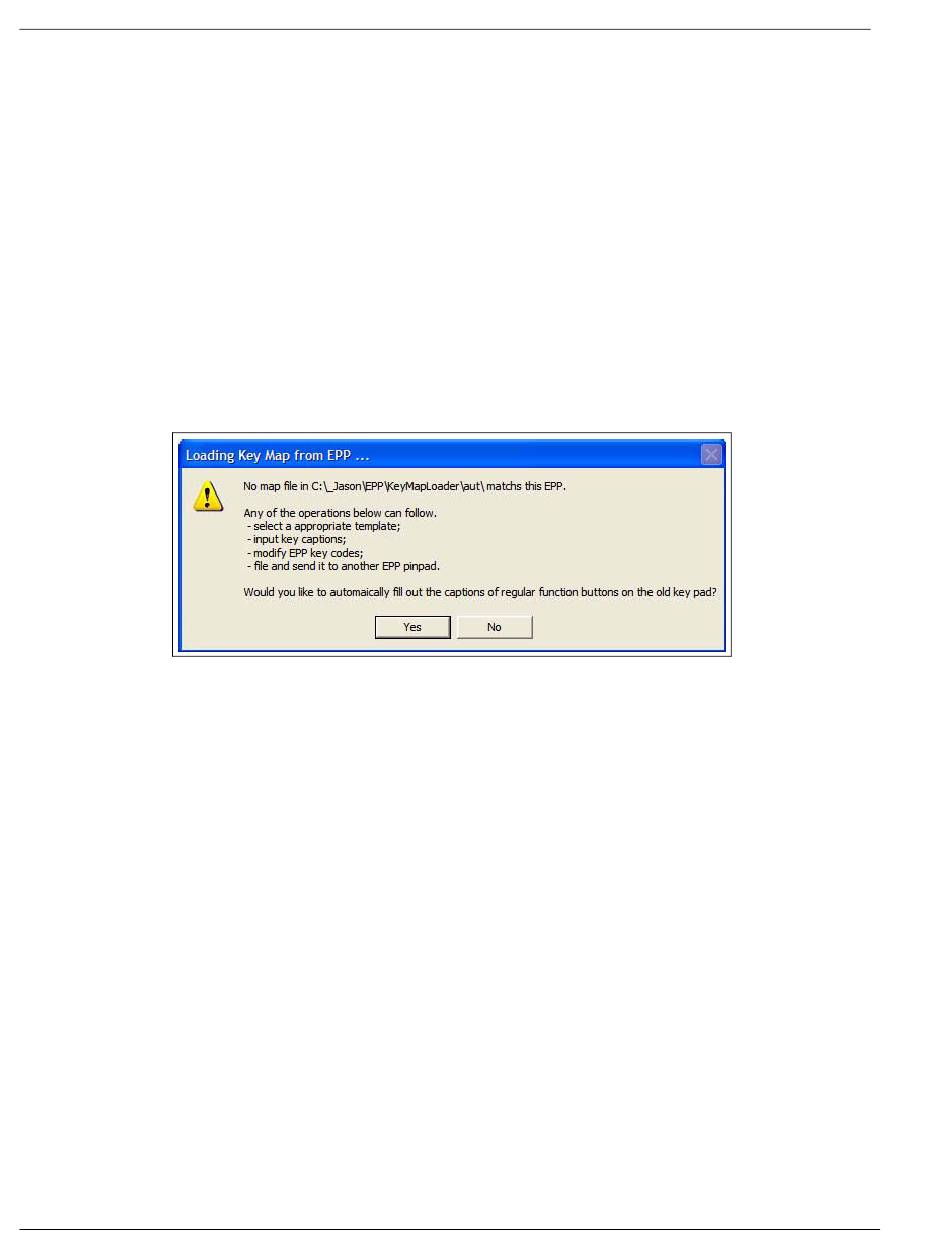

Figure 3-50: Loading Key Map from EPP Window
4 Select one of the following options:
• Yes to map the regular functions, such as YES, NO, CANCEL, HELP, and ADA, and
• No to manually enter the key captions.
5 Disconnect the laptop from the current FlexPay EPP.
Replace the FlexPay EPP and connect the new FlexPay EPP to the laptop.
6
Click File and Send key map to save the clone data and send it to the new FlexPay EPP.
7
Edit the captions of the buttons on the new FlexPay EPP, if required. Refer to
8
Key Map"
Repeat steps
9
Page 50
on page 25.
automatically fill out the key captions.
on page 38.
5 to 7 to program other FlexPay EPPs, if required.
