Start-up and Service
Using the FlexPay EPP Programming Cable (M08743A001)
This cable consists of two connectors: a 9-pin D-Sub connector which connects to the port on
the laptop and a 6-position connector which connects to the pigtail connector at the rear of the
FlexPay EPP.
Use this cable when the FlexPay EPP is already installed in the dispenser. In this case, the PIN
Pad receives power from the dispenser.

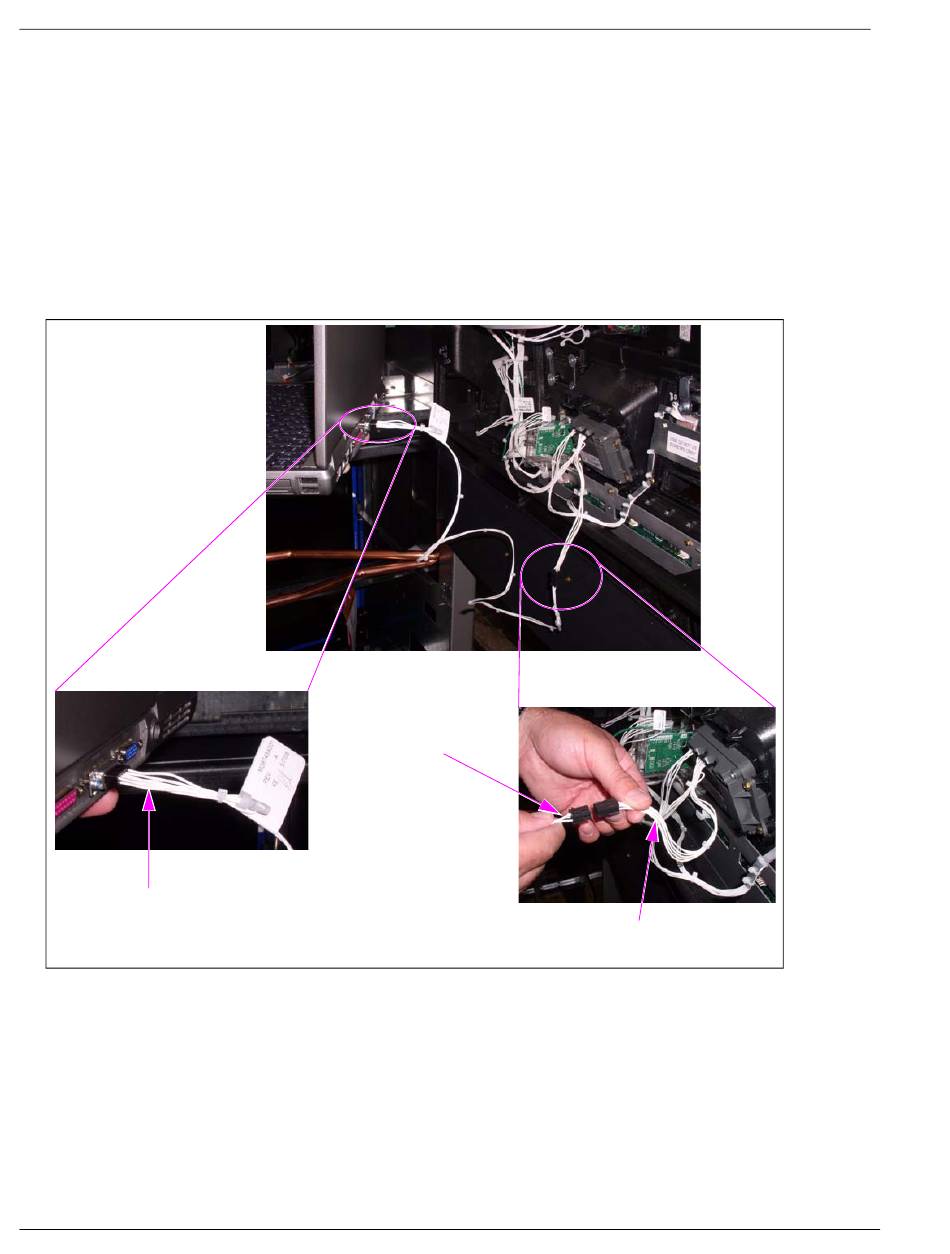

Figure 3-14: Connecting a Laptop to the FlexPay EPP using the M08743A001 Cable
9-pin D-Sub Connector from M08743A001
connects to Laptop
Page 26
6-position Connector
from M08743A001
MDE-4784D FlexPay™ Encrypting PIN Pad Start-up and Service Manual · December 2011
Connecting a Laptop to the FlexPay EPP
Extension from
Programming Port
of FlexPay EPP
