Using the FlexPay EPP Mapping Tool
To create a new key map, proceed as follows:
Connect the FlexPay EPP on the dispenser to the laptop that contains the FlexPay EPP
1
Mapping Tool application using the programming connector.
Power on the FlexPay EPP.
2
Determine the keypad for which the key map must be replaced.
3

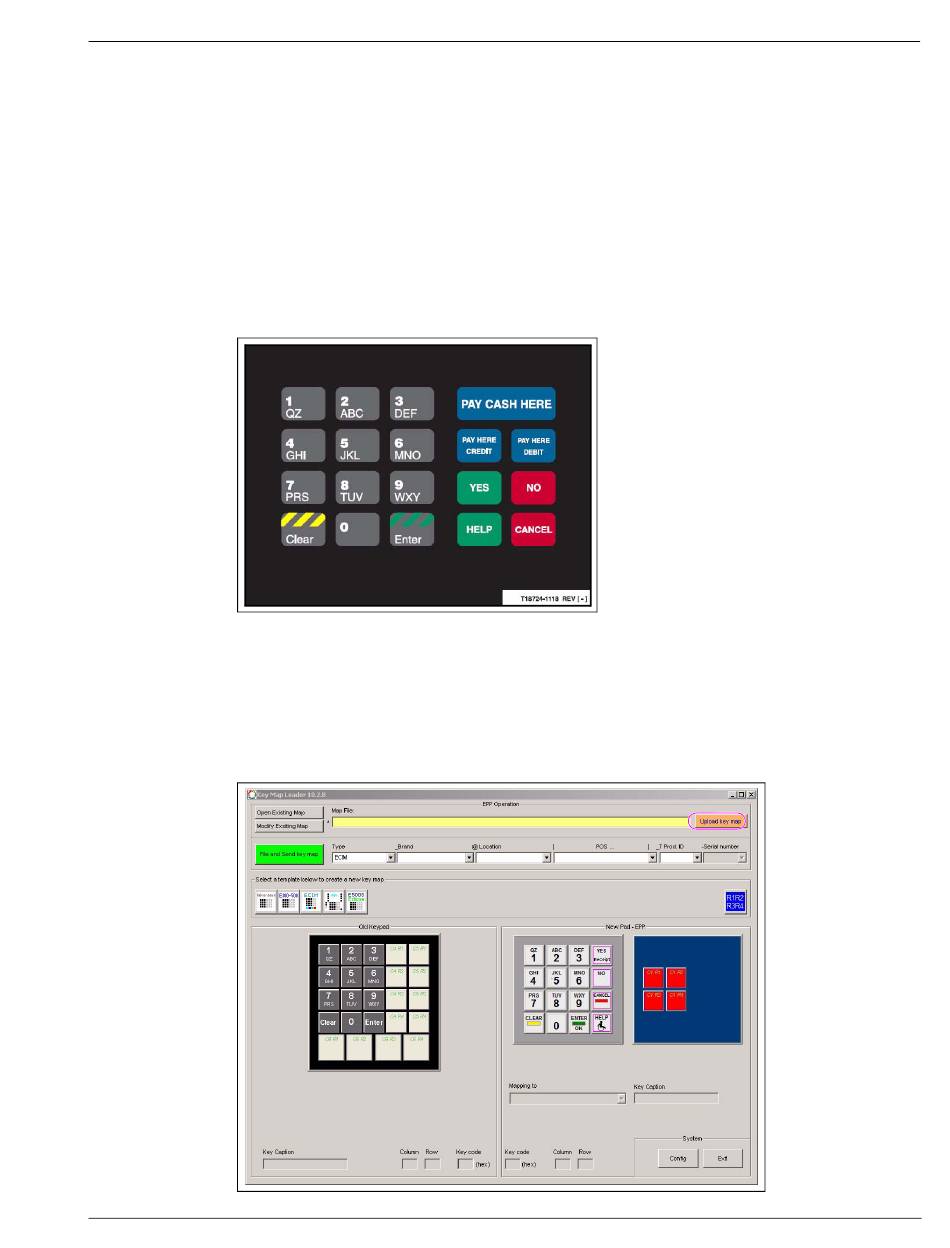

Figure 3-32: Sample Keypad
4 Click Upload Key Map to load the key codes from the FlexPay EPP. Proceed to step
page
EPP connected. Else, proceed to step
Figure 3-33: Selecting the Load Key Map Option
