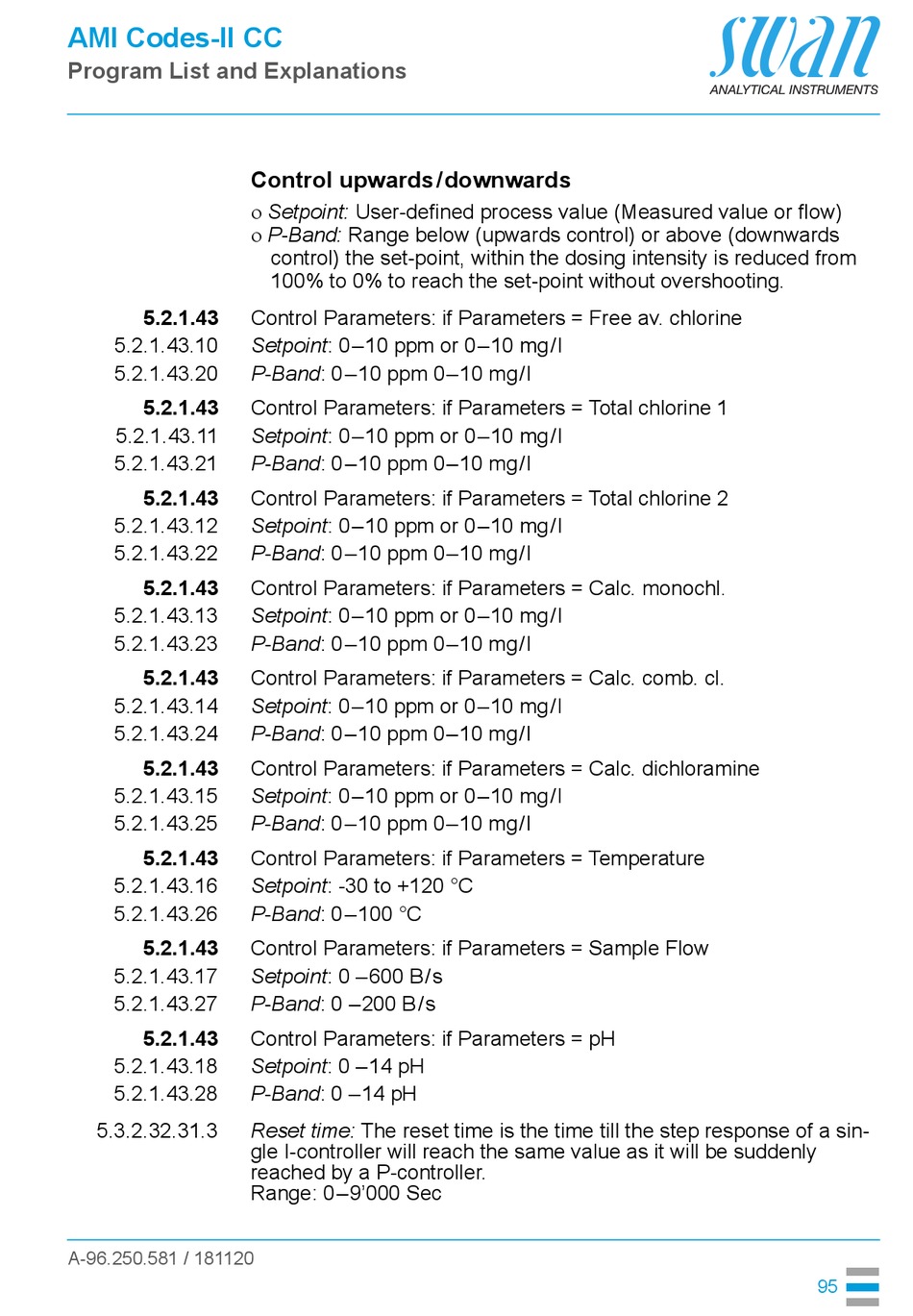

Program List and Explanations
5.2.1.43
5.2.1.43.10
5.2.1.43.20
5.2.1.43
5.2.1.43.11
5.2.1.43.21
5.2.1.43
5.2.1.43.12
5.2.1.43.22
5.2.1.43
5.2.1.43.13
5.2.1.43.23
5.2.1.43
5.2.1.43.14
5.2.1.43.24
5.2.1.43
5.2.1.43.15
5.2.1.43.25
5.2.1.43
5.2.1.43.16
5.2.1.43.26
5.2.1.43
5.2.1.43.17
5.2.1.43.27
5.2.1.43
5.2.1.43.18
5.2.1.43.28
5.3.2.32.31.3
A-96.250.581 / 181120
Control upwards /downwards
Setpoint: User-defined process value (Measured value or flow)
P-Band: Range below (upwards control) or above (downwards
control) the set-point, within the dosing intensity is reduced from
100% to 0% to reach the set-point without overshooting.
Control Parameters: if Parameters = Free av. chlorine
Setpoint: 0–10 ppm or 0–10 mg/l
P-Band: 0 –10 ppm 0–10 mg/l
Control Parameters: if Parameters = Total chlorine 1
Setpoint: 0–10 ppm or 0–10 mg/l
P-Band: 0 –10 ppm 0–10 mg/l
Control Parameters: if Parameters = Total chlorine 2
Setpoint: 0–10 ppm or 0–10 mg/l
P-Band: 0 –10 ppm 0–10 mg/l
Control Parameters: if Parameters = Calc. monochl.
Setpoint: 0–10 ppm or 0–10 mg/l
P-Band: 0 –10 ppm 0–10 mg/l
Control Parameters: if Parameters = Calc. comb. cl.
Setpoint: 0–10 ppm or 0–10 mg/l
P-Band: 0 –10 ppm 0–10 mg/l
Control Parameters: if Parameters = Calc. dichloramine
Setpoint: 0–10 ppm or 0–10 mg/l
P-Band: 0 –10 ppm 0–10 mg/l
Control Parameters: if Parameters = Temperature
Setpoint: -30 to +120 °C
P-Band: 0 –100 °C
Control Parameters: if Parameters = Sample Flow
Setpoint: 0 –600 B/s
P-Band: 0 –200 B /s
Control Parameters: if Parameters = pH
Setpoint: 0 –14 pH
P-Band: 0 –14 pH
Reset time: The reset time is the time till the step response of a sin-
gle I-controller will reach the same value as it will be suddenly
reached by a P-controller.
Range: 0–9'000 Sec
