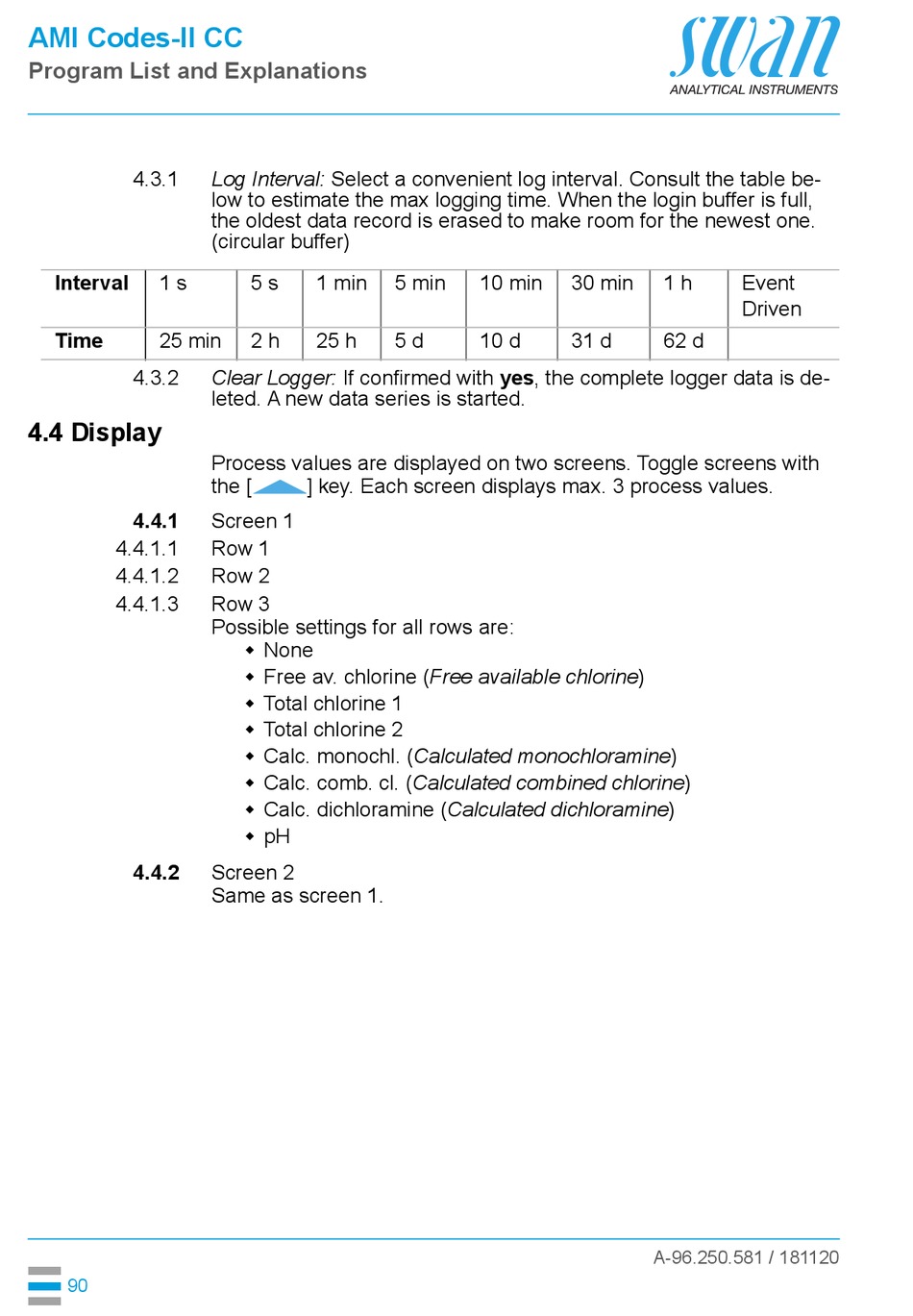

Swan Analytical Instruments AMI Codes-II CC Operator's Manual page 90

AMI Codes-II CC
Program List and Explanations
4.3.1
Interval 1 s
Time 25 min
4.3.2
4.4 Display
4.4.1
4.4.1.1
4.4.1.2
4.4.1.3
4.4.2
90
Log Interval: Select a convenient log interval. Consult the table be-
low to estimate the max logging time. When the login buffer is full,
the oldest data record is erased to make room for the newest one.
(circular buffer)
5 s 1 min
2 h 25 h
Clear Logger: If confirmed with yes, the complete logger data is de-
leted. A new data series is started.
Process values are displayed on two screens. Toggle screens with
the [ ] key. Each screen displays max. 3 process values.
Screen 1
Row 1
Row 2
Row 3
Possible settings for all rows are:
 None
 Free av. chlorine (Free available chlorine)
 Total chlorine 1
 Total chlorine 2
 Calc. monochl. (Calculated monochloramine)
 Calc. comb. cl. (Calculated combined chlorine)
 Calc. dichloramine (Calculated dichloramine)
 pH
Screen 2
Same as screen 1.
5 min 10 min
5 d 10 d
30 min 1 h Event
Driven
31 d 62 d
A-96.250.581 / 181120
