AMI Codes-II CC
Installation
28

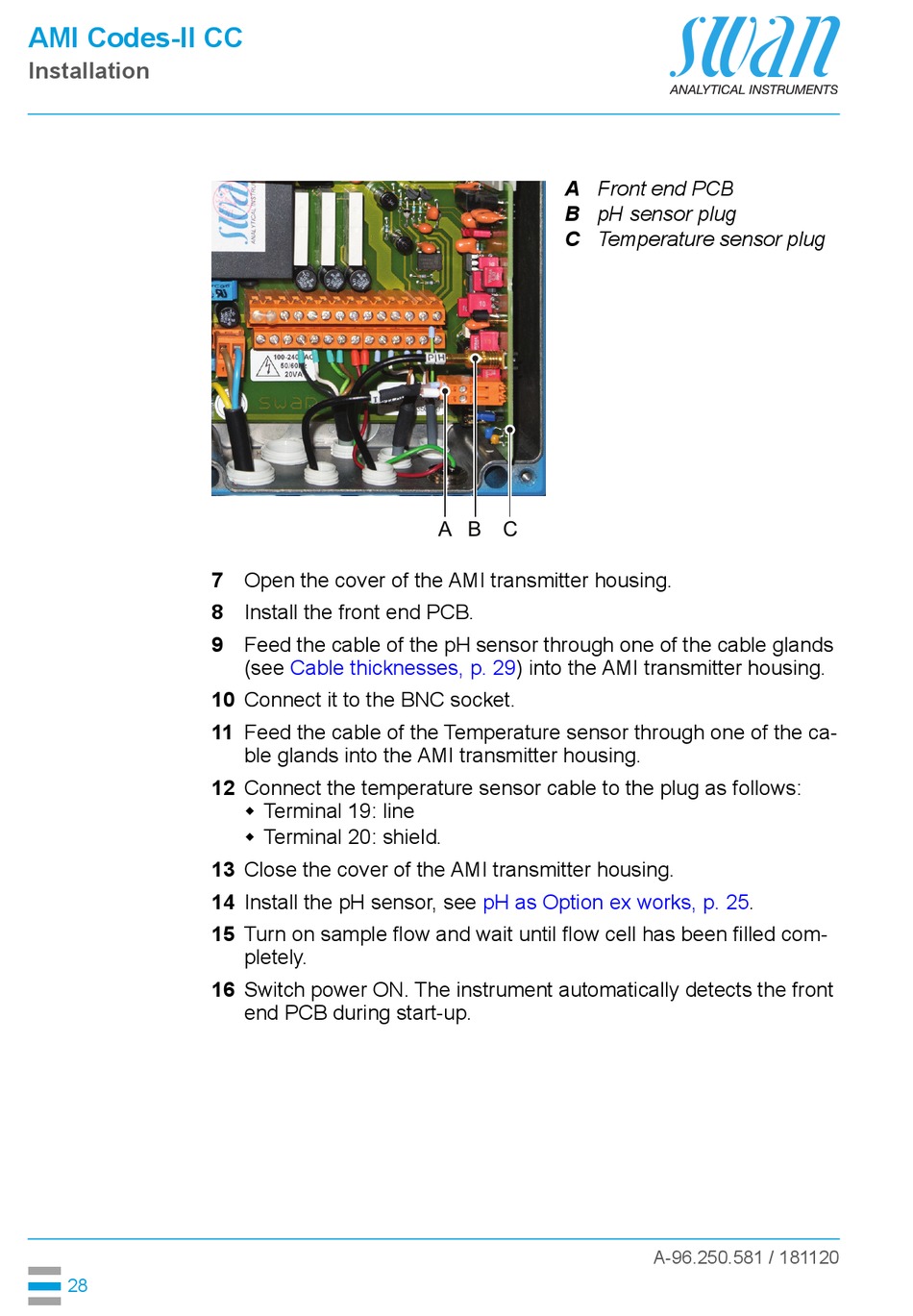

7 Open the cover of the AMI transmitter housing.
8 Install the front end PCB.
9 Feed the cable of the pH sensor through one of the cable glands
(see Cable thicknesses, p.
10 Connect it to the BNC socket.
11 Feed the cable of the Temperature sensor through one of the ca-
ble glands into the AMI transmitter housing.
12 Connect the temperature sensor cable to the plug as follows:
 Terminal 19: line
 Terminal 20: shield.
13 Close the cover of the AMI transmitter housing.
14 Install the pH sensor, see
15 Turn on sample flow and wait until flow cell has been filled com-
pletely.
16 Switch power ON. The instrument automatically detects the front
end PCB during start-up.
A
Front end PCB
B pH sensor plug
C
Temperature sensor plug
A B C
29) into the AMI transmitter housing.
pH as Option ex works, p. 25.
