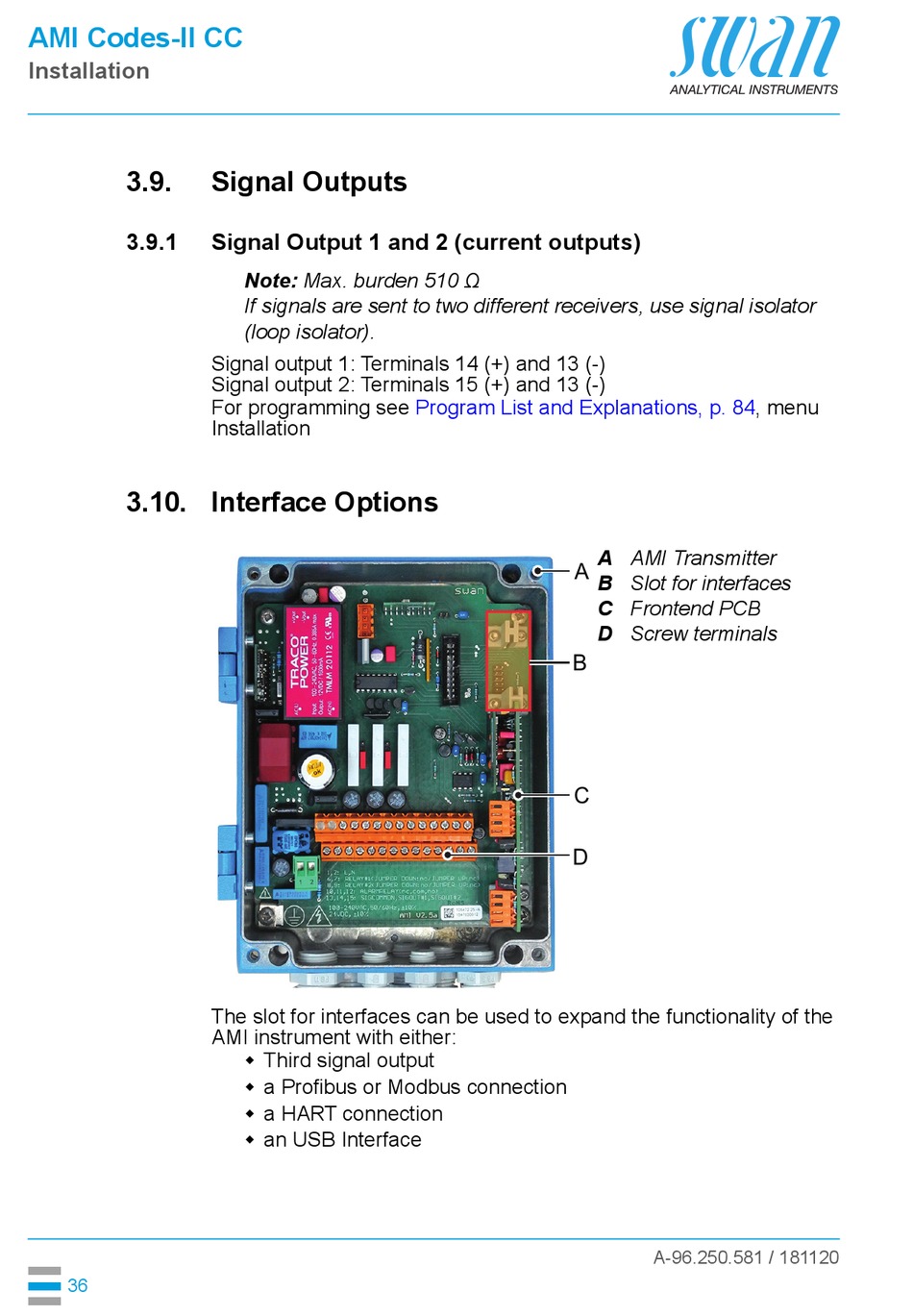

Swan Analytical Instruments AMI Codes-II CC Operator's Manual page 36

AMI Codes-II CC
Installation
3.9.
3.9.1
3.10. Interface Options
36
Signal Outputs
Signal Output 1 and 2 (current outputs)
Note: Max. burden 510 Ω
If signals are sent to two different receivers, use signal isolator
(loop isolator).
Signal output 1: Terminals 14 (+) and 13 (-)
Signal output 2: Terminals 15 (+) and 13 (-)
For programming see
Installation
The slot for interfaces can be used to expand the functionality of the
AMI instrument with either:
 Third signal output
 a Profibus or Modbus connection
 a HART connection
 an USB Interface
Program List and Explanations, p.
A
B
C
D
84, menu
A AMI Transmitter
B Slot for interfaces
C
Frontend PCB
D Screw terminals
A-96.250.581 / 181120
