AMI Codes-II CC
Program List and Explanations
5.2.1.3
As process
values
92
Function: Define if the signal output is used to transmit a process val-
ue or to drive a control unit. Available functions are:
 Linear, bilinear or logarithmic for process values.
See As process values, p. 92
 Control upwards or control downwards for controllers.
See As control output, p. 94

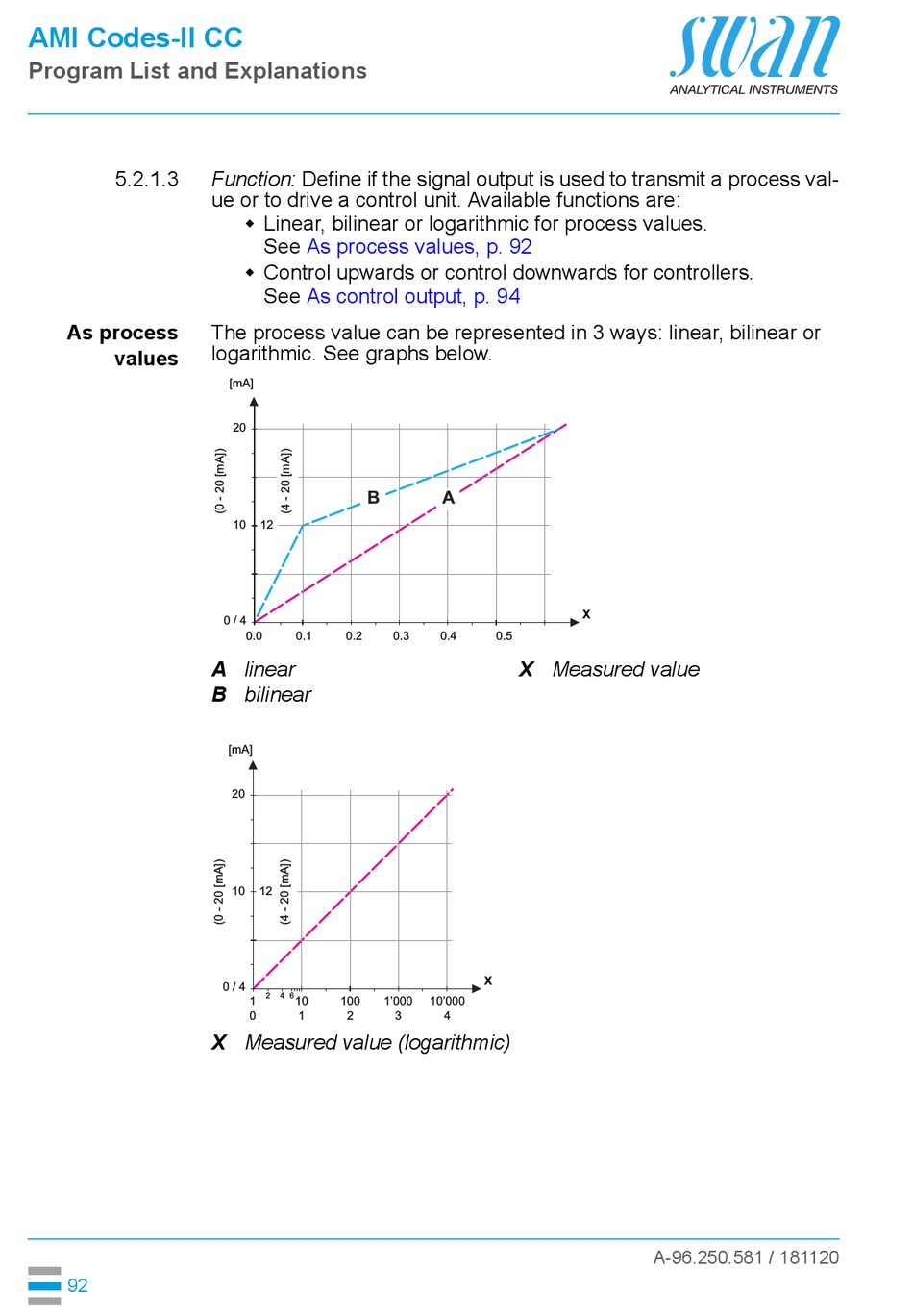

The process value can be represented in 3 ways: linear, bilinear or
logarithmic. See graphs below.
[mA]
20
B
10 12
0 / 4
0.0 0.1 0.2
A linear
B bilinear
[mA]
20
10 12
0 / 4
2 4 6
1 10 100 1'000
0 1 2
X Measured value (logarithmic)
A
0.3 0.4 0.5
X Measured value
X
10'000
3 4
X
