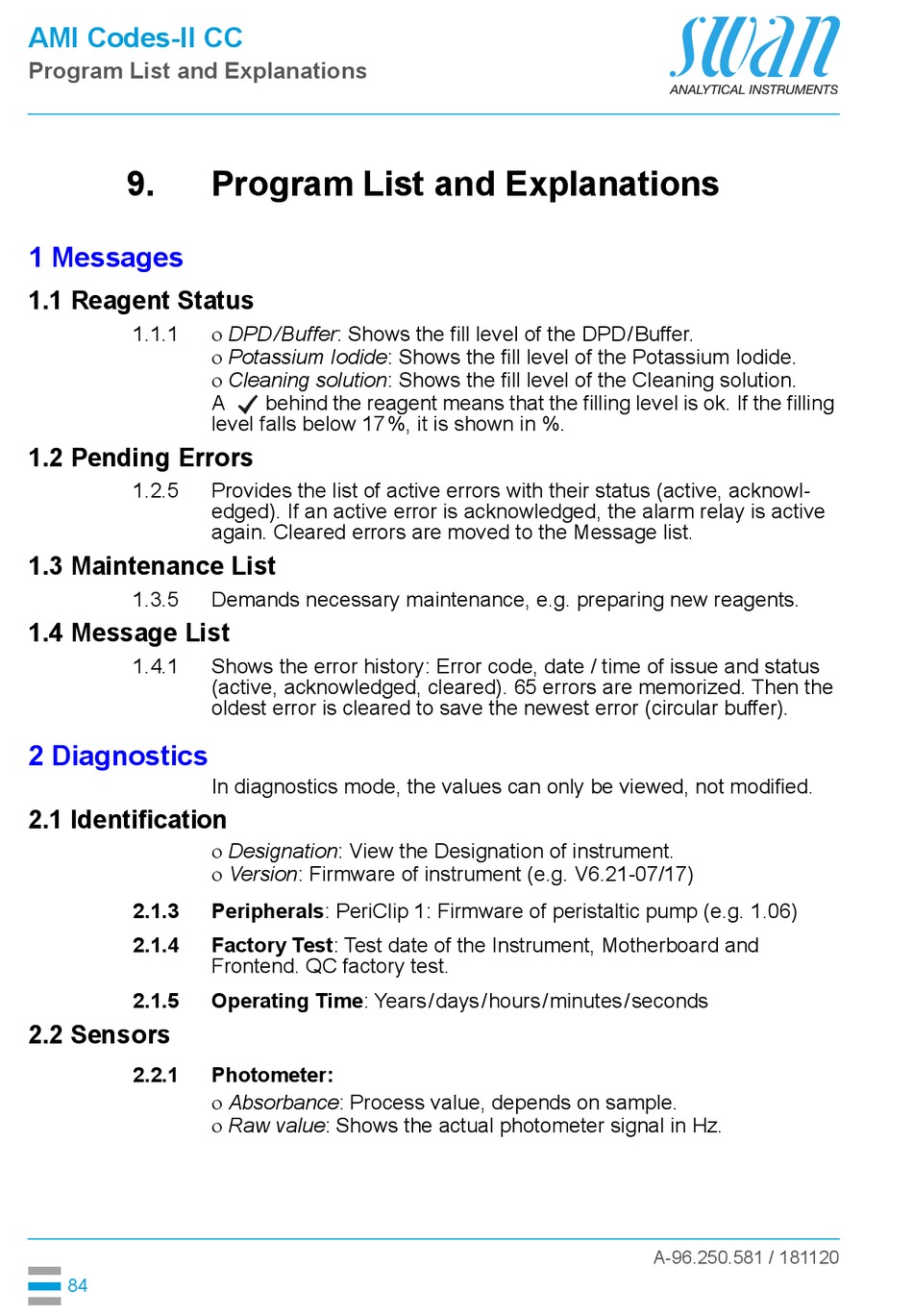

Swan Analytical Instruments AMI Codes-II CC Operator's Manual page 84

AMI Codes-II CC
Program List and Explanations
9.
1 Messages
1.1 Reagent Status
1.1.1
1.2 Pending Errors
1.2.5
1.3 Maintenance List
1.3.5
1.4 Message List
1.4.1
2 Diagnostics
2.1 Identification
2.1.3
2.1.4
2.1.5
2.2 Sensors
2.2.1
84
Program List and Explanations
DPD/Buffer: Shows the fill level of the DPD/Buffer.
Potassium Iodide: Shows the fill level of the Potassium Iodide.
Cleaning solution: Shows the fill level of the Cleaning solution.
A behind the reagent means that the filling level is ok. If the filling
level falls below 17%, it is shown in %.
Provides the list of active errors with their status (active, acknowl-
edged). If an active error is acknowledged, the alarm relay is active
again. Cleared errors are moved to the Message list.
Demands necessary maintenance, e.g. preparing new reagents.
Shows the error history: Error code, date / time of issue and status
(active, acknowledged, cleared). 65 errors are memorized. Then the
oldest error is cleared to save the newest error (circular buffer).
In diagnostics mode, the values can only be viewed, not modified.
Designation: View the Designation of instrument.
Version: Firmware of instrument (e.g. V6.21-07/17)
Peripherals: PeriClip 1: Firmware of peristaltic pump (e.g. 1.06)
Factory Test: Test date of the Instrument, Motherboard and
Frontend. QC factory test.
Operating Time: Years/days/hours/minutes/seconds
Photometer:
Absorbance: Process value, depends on sample.
Raw value: Shows the actual photometer signal in Hz.
A-96.250.581 / 181120
