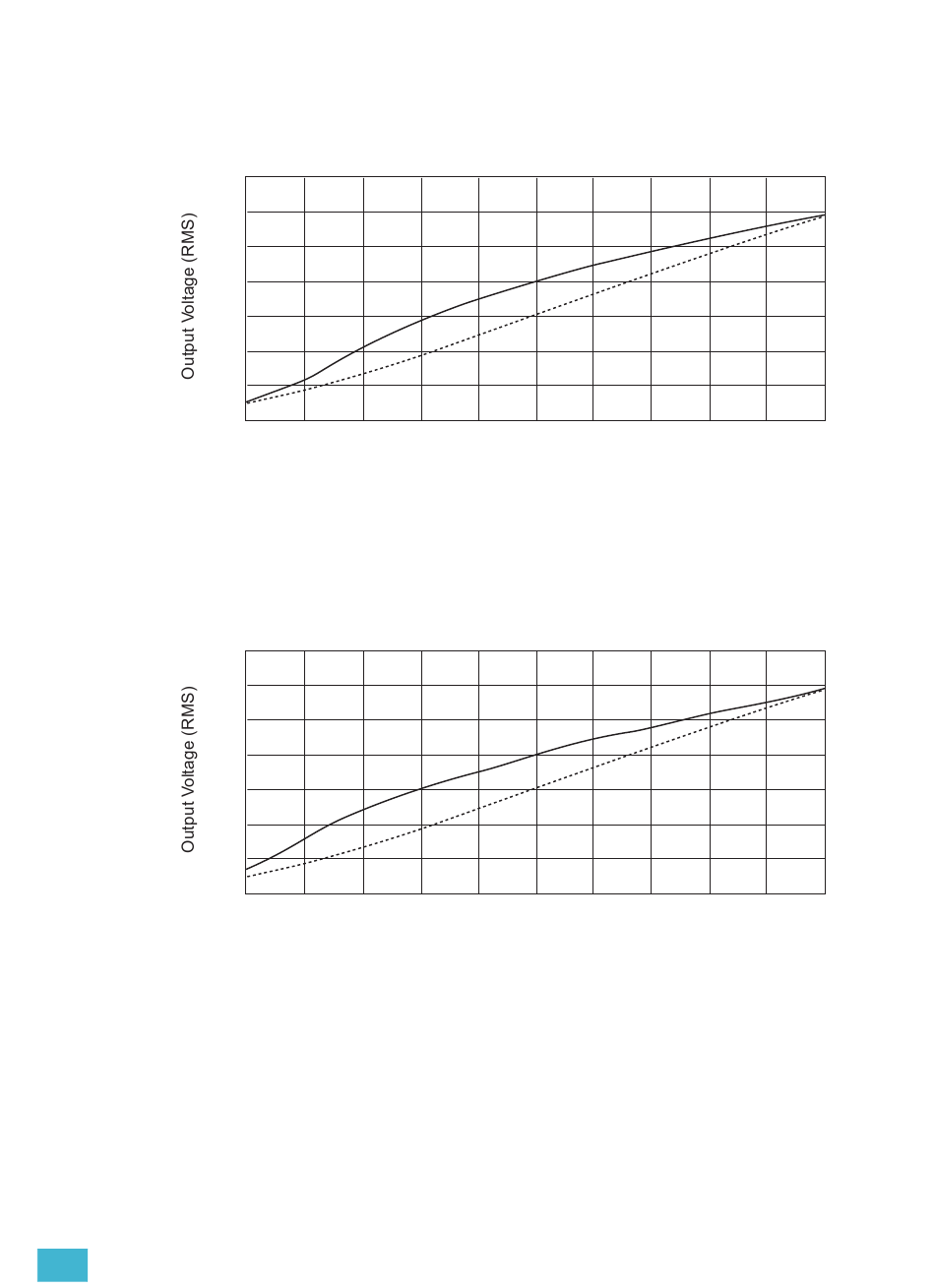

M o d i f i e d S q u a r e l a w c u r v e
A standard square law curve may overcompensate for infrared loss, resulting in "steppy"
response to incremental control changes at low levels. ETC's modified square law curve
applies a second multiple to the standard square law curve for more uniform response to
control levels changes across the entire range of dimmer output,
140
120
100
80
60
40
20
0
S e n s o r 2 . 0 c u r v e
The Sensor 2.0 curve is the previous version of ETC's modified square law curve. It
provides backwards compatibility for shows created using earlier versions of ETC
equipment and familiar response for designers who prefer the earlier version.
140
120
100
80
60
40
20
0
B
Dimmer Curves
1 10 20 30
Modified square law curve ––––– Linear curve --------- (for reference)
1 10 20 30
Sensor 2.0 curve ––––– Linear curve --------- (for reference)
40 50 60
Console percentage setting
40 50 60
Console percentage setting
70 80 90 100
70 80 90 100
