UL924 Setup

I n t r o d u c ti o n
This appendix provides information for configuring a Sensor+ system to operate within the UL924
specification.
W A R N I N G :
Te r m i n a t i o n s
A dry contact closure (maintained recommended) must be wired to each rack containing dimmers
in the emergency look.
Turn on DMX termination
physically connected in
C o n f i g u r a t i o n
Step 1: Login to the CEM+ with at least Power User Level of access.
Step 2: Set the levels of the dimmers/lights you want in the emergency look to level of at
least the Panic Master Level in the CEM+ (80 to 100% - defaults to 100%).
Step 3: Record Panic on the CEM+. Be sure the configuration closure type matches your
actual physical closure type.
C
UL924 Setup
RISK OF ELECTRIC SHOCK! Failure to disconnect all power to the rack
before working in the rack could result in serious injury or death.
in the last rack that is
J11
the DMX chain.
• CEM+ face panel PIN: 3333
• Sensor+ Connect web interface - Login: power / password: powerpass
If daisy-chaining to If daisy-chaining to
From source From source
another rack or another rack or
DMX B DMX A
DMX device... DMX device...

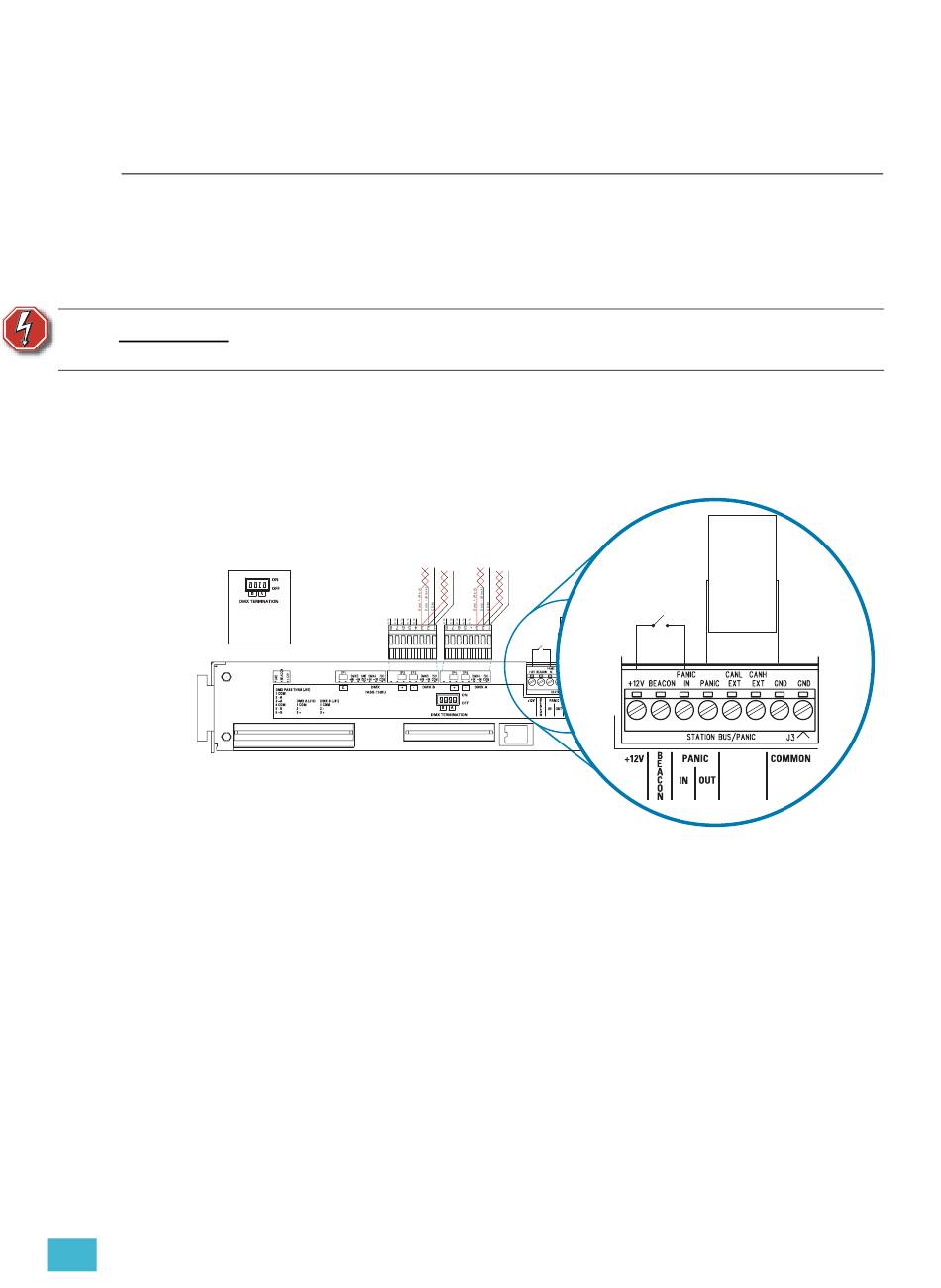

For remote
indication of
J10
Panic activation,
wire to
To trigger Panic,
external load
use a
(such as a
lamp or relay)
Maintained
+12Vdc
Closure
J3
J3
For remote
indication of
Panic activation,
wire to
external load
(such as a
To trigger Panic,
lamp or relay)
use a
+12Vdc
Maintained
Closure
