Sponge-Jet 70P Recycler User Manual page 29

Shaft
Sheave
Bottom Balance
Cage
15. Slide pulley onto motor shaft as far as possible and then slide it back
about 1/8" (4mm). This will allow pulley to spin with motor shaft freely.
16. Tighten draw bolt down to lock pulley in place. The torque setting is 112
lb-in (13 N·m). If a torque wrench is not available, an alternate procedure is
to tighten draw bolt until lock washer is flat. This will be approximately the
correct torque.
17. If table was removed at this time, reassemble table to base making sure to
line up all springs onto spring lugs and reattach grease lines.
18. Now check alignment of sheave and variable speed pulley.

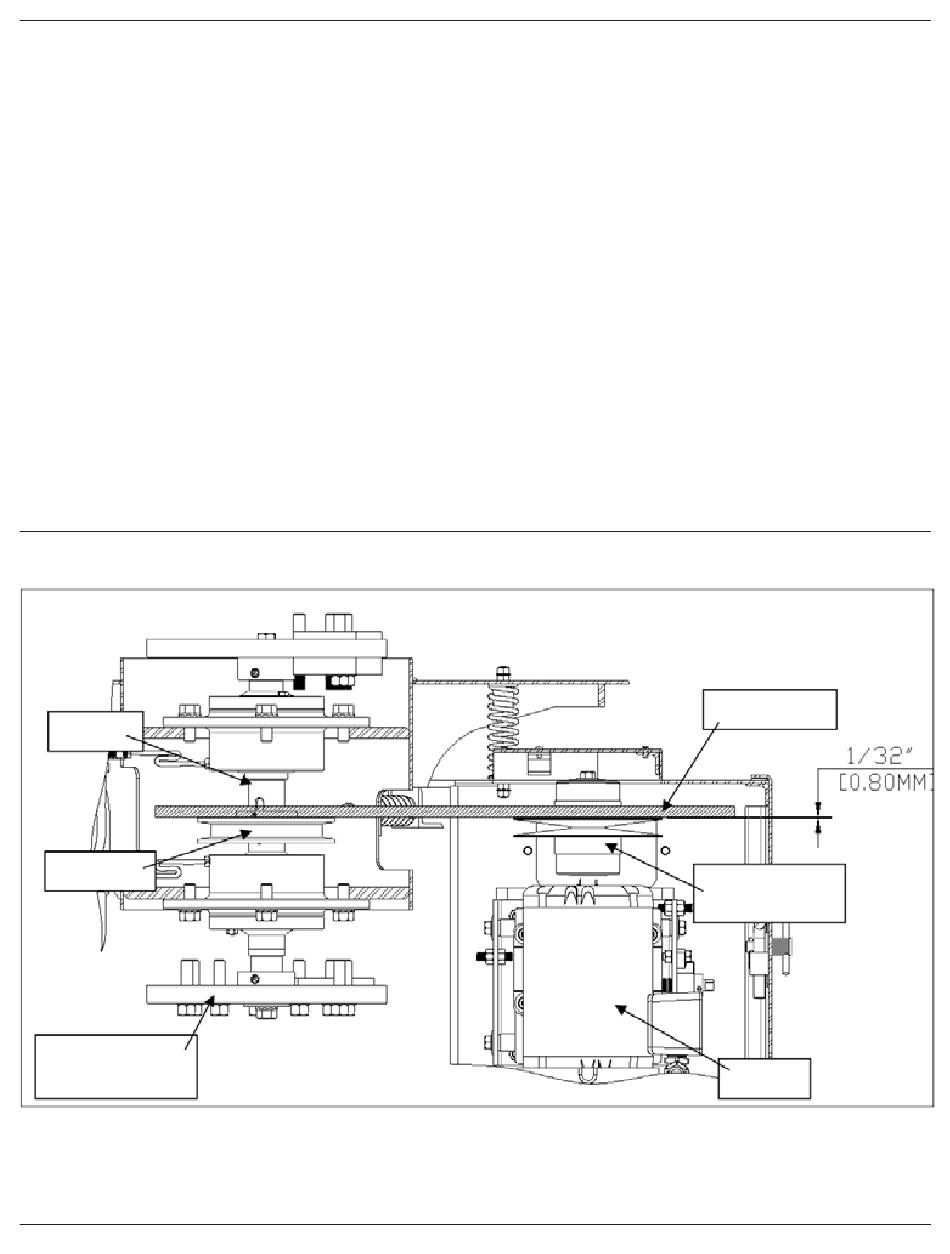

19. Place a straightedge on sheave as shown in Figure 19.
20. Since two outside dimensions of sheave and pulley are not equal, it is
necessary to have a 1/32" (1mm) gap as shown.
21. Refer to Belt Replacement for how to install belt.
FIGURE 19
Straightedge
Variable Speed
Pulley
Motor
