Cam-lock washer
Top Balance Cage
Top Grease Line
Bearing housing Cap
Slinger
Bottom Balance Cage
| SPONGE-JET 70P 70E USER MANUAL
24
Two piece
Key
Two piece
Cam-lock washer
10. Set new belt around the shaft and bearing housing.
11. Install a 1/2"-13 lifting eye into the shaft center hole on top. (Be sure not to
cross thread the bolt so the balance cage bolt can be reinstalled.)
12. Carefully lift shaft assembly until there is just enough clearance between
bearing housing and table assembly to slide belt through. (Make sure no con-
taminants fall into inside of bottom bearing housing.)

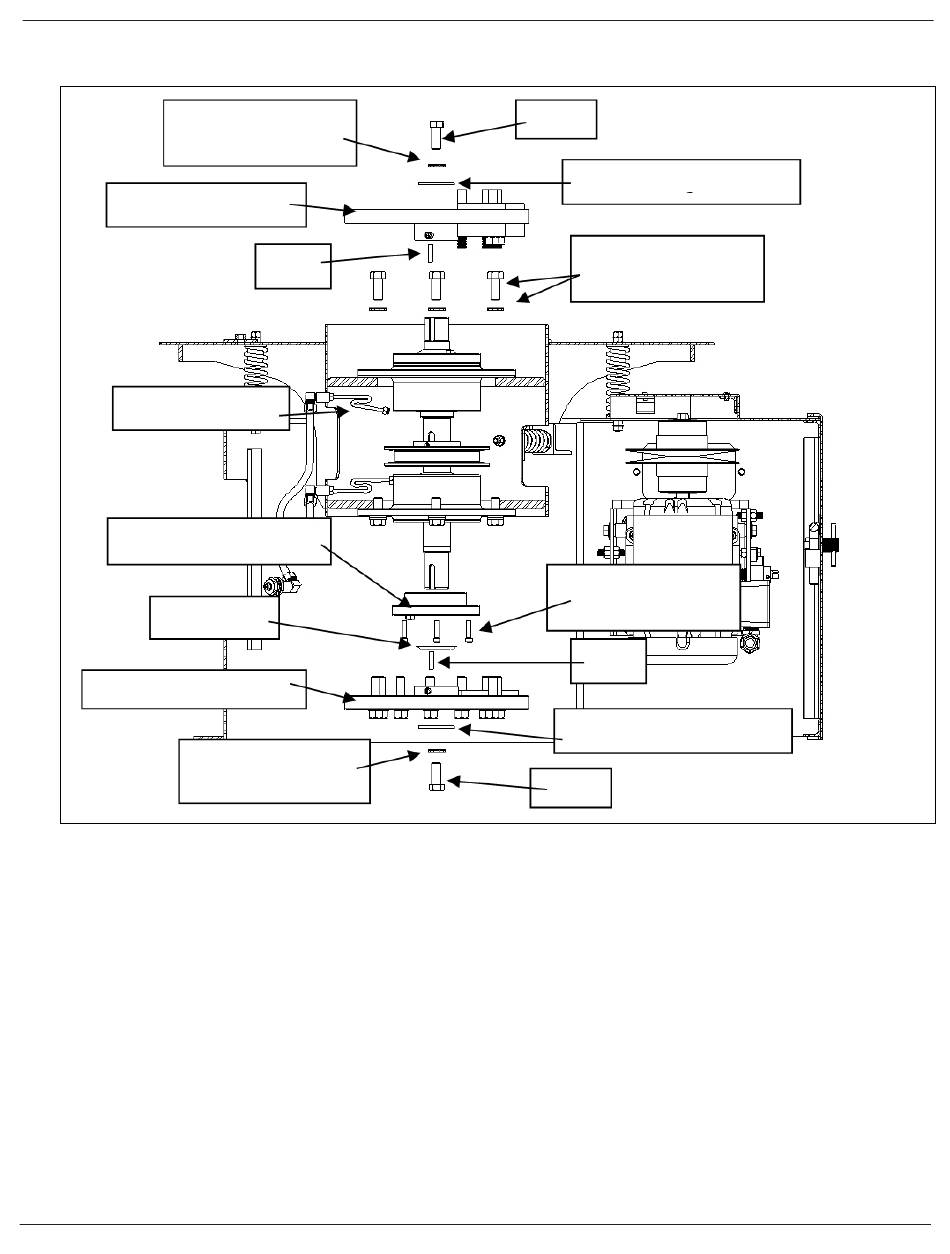

FIGURE 15
Bolt
Bolt
Balance Cage Washer
Bearing housing
Bolts and Washers
Bearing Housing
Cap Bolts
Key
Balance Cage Washer
